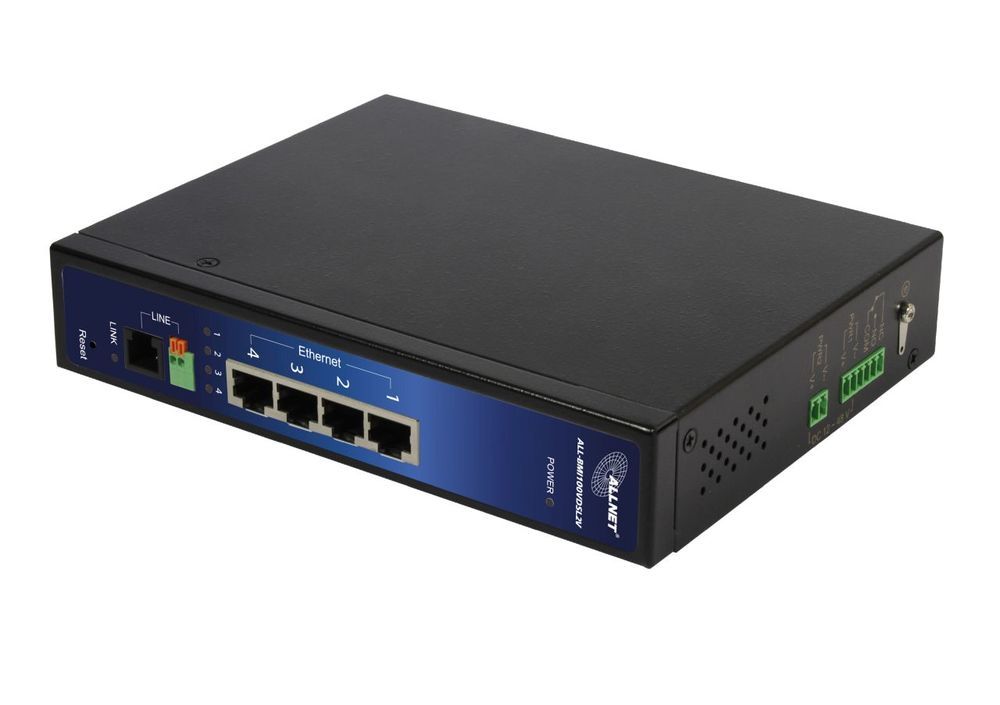

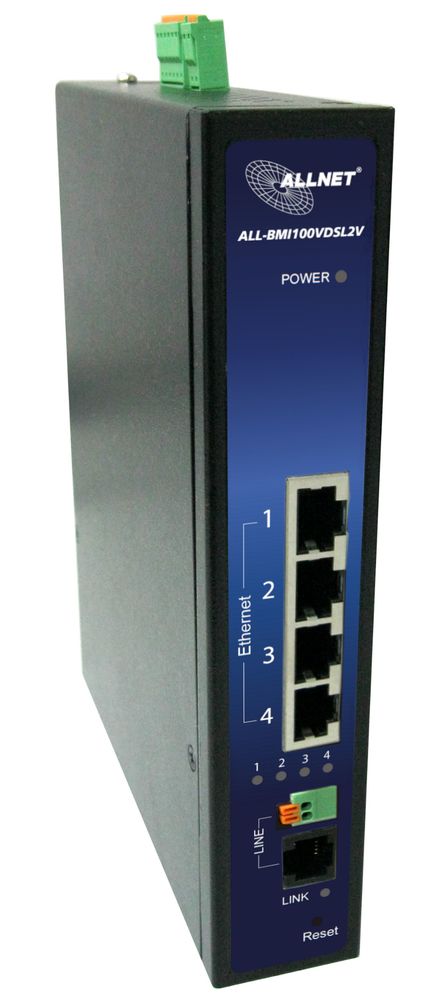

ALLNET ISP Bridge Modem VDSL2 mit Vectoring Industrial IP30 VDSL2V ALL-BMI100VDSL2V

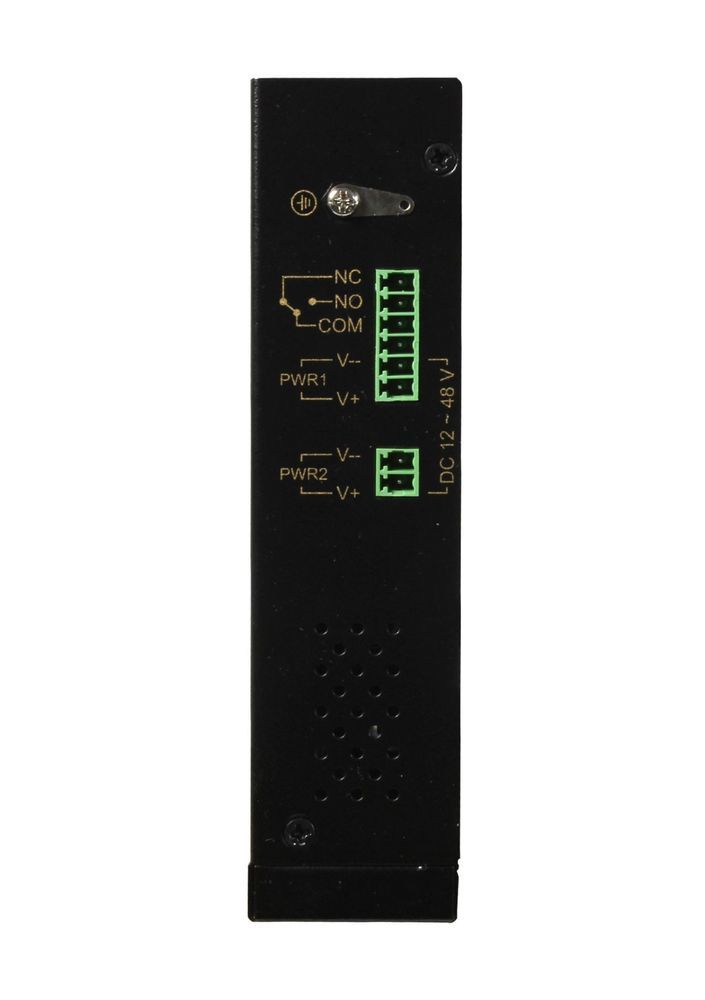

Highlight: Industrial VDSL2V Bridge-Modem aus Metall mit integriertem 4-fach 10/100/1000 Mbps Switch. Hutschienenmontage tauglich Unterstützt DPBO (Downstream Power Back Off). Kann als VDSL2-Modem für Telekom VDSL2-Anschluss konfiguriert werden und benötigt dann einen dazu passenden nachgeschalteten Router. Unterstützt VDSL Vectoring. Wandmontage möglich Auch eine redundante Stromversorgung ist möglich. Kann auch als Point to Point Client in Verbindung mit ALL126AM3 Master verwendet werden.   Temperaturbereich -20 Grad bis +70 Grad. Die Spannungsversorgung ist von 12V bis 48V DC über Klemmkontakte möglich. ALL-BMI100VDSL2V ist ein industrieller VDSL2-Bridge Modem, der mit vier Gigabit-LAN-Ports ausgestattet ist. Er ist konform zu den Standards ITU-T G.993.2 und G.993.5 und unterstützt das VDSL2-Profil 30a Element Spezifikation Chipsatz: Lantiq Vinax VRX268 (VDSL2) + VRX208 Physical Interface: 4 x RJ-45 10/100/1000Mbps auto-negotiation Ethernet port 1 x RJ-11/Terminal Block connector for VDSL2 line port 1 x removable 6-contact terminal blocks for power1 and alarm contact 1 x removable 2-contact terminal blocks for power2 1 x Reset Button (Factory Reset) MTU: 1680 bytes (Jumbo frame) VDSL2 Interface: Complies with ITU-T G993.2, G993.5 Connector: RJ-11/Terminal block PTM/ATM Transmission On-board surge protection LED Indicators: 1 x Power LED 4 x Link/Active Status for Ethernet port 1 x Link LED for VDSL2 port Features: Supports ITU-T G.993.5 Vectoring Supports ATM and PTM transmission mode auto detection( ADSL Annex A/B backward compatible) Supports high bandwidth up to 100Mbps symmetric over line ports Supports 8a, 8b, 8c, 8d, 12a, 12b, 17a, 17b, and 30a band profile and 997, 998 band plan Supports ATM-TC,ATM and AAL5 (ATM Flow Throughput / OAM Cell Filter and Forwarding / AAL5 SAR:PVC / ATM   Traffic Class / ATM PVC Shaping / ATM PVC Scheduling) Supports ATM Total Upstream Priority Queues Supports uPnP/PPPoE/PPPoATM/IPv4/IPv6/NAT/NAPT Supports static routing for IPv4 and IPv6 forwarding Supports Firewall functions contains Packet filtering, DMZ, Mac Address ased filtering, Parental Control, Application   based filtering Supports DHCP Server/DHCP Relay/DHCP Client/DHCPv6 Client/DHCPv6 Server/DNS/DNS Proxy or   Relay/DNSv6 Proxy or Relay/NTP Client/HTTP1.1 server Supports Multicast IP table/IGMP v3 Proxy and Snooping Supports IEEE 802.1p VLAN Priority and mapping to DSCP Supports 802.1q VLAN tagging Supports HTTP/HTTPS(SSL) web management Supports remote management and monitor Supports configuration backup and restore Provides surge protection for Line port Supports power redundant and wide range dual power input(DC12V ~ 48V) Supports Overload Current Protection Supports wide range operating temperature(-20 C ~ 70 C) Supports Reverse Polarity Protection Supports alarm contact (relay output - 1 A @ 24 Vdc/@ 120Vac) Supports DIN-Rail mount installation Metal case design and compliant with IP30 standard Supports Router Operationg Temperature: -20°C ~ 70°C (-4°F ~ 158°F) Fanless, free air cooling Storage Temperature: -40°C ~70°C (-40°F ~ 158°F) Humidity: 5 to 95% (non-condensin Net weight: approx. 0.79 kg Marks: CE, FCC, RoHS Compliant Package contents: 1x ALL-BMI100VDSL2V 1x terminal block connectors 1x DIN rail with screws 1x QIG
