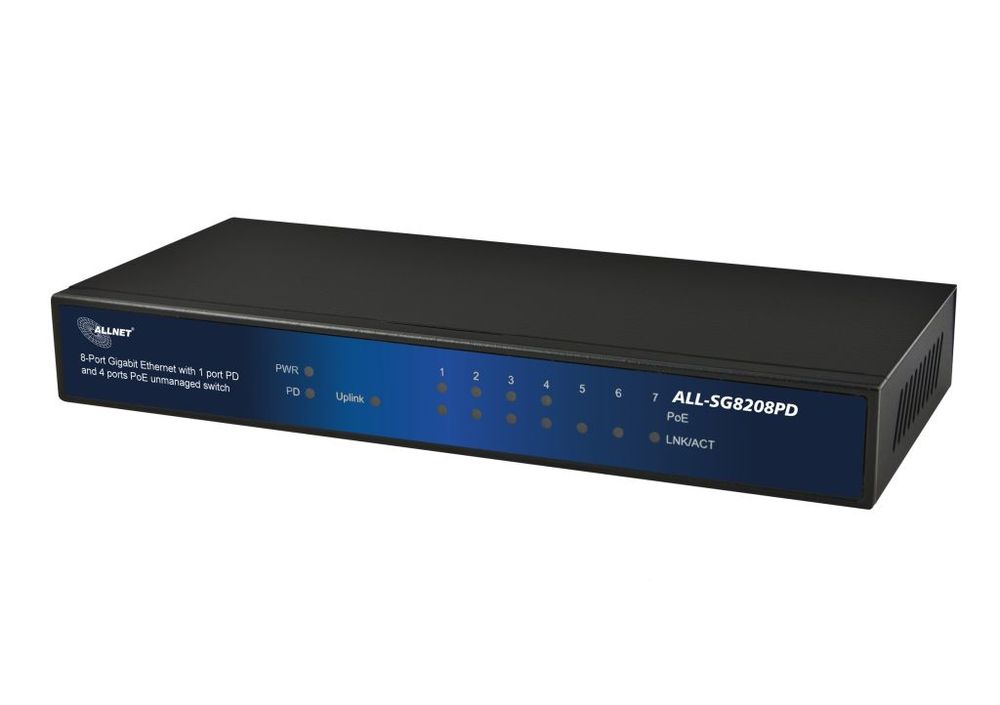

ALLNET ALL-SG8208PD / unmanaged 8 Port Gigabit Switch, 4x Giga PoE AF + 2x Giga TX

8-port 10/100/1000M PoE Ethernet Switch with 2-port PoE and 1-port PD


Highlights:8-Port 10/100/1000BaseT(X) with 4 PSE Port and 1 PD Port
Compliant with 4x IEEE 802.3af PSE and IEEE802.3at PD Input
Metal case with Palm, Size
NO power supply needed when powered over PD Port
FANLESS DESIGN


The device is a powerful, high-performance Gigabit Ethernet Switch, with all 8 ports capable of 10/100/1000Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and

imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10/100Mbps to 1000Mbps network with no pain.




This switch supports PoE pass-through, having both PD (Powered Device) and PSE (Power Sourcing Equipment) features in one single device, which means the switch could get power from the PD port by connecting to a PSE device and supply power on the 4 PSE ports for connected devices via CAT 5e or better twisted cables. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. You could easily connect a Wireless AP or a VoIP phone (PD devices) to this switch without looking outlets for them. Over current protection and circuit shorting protection are also supported to ensure the safety.



The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LED indicators on the front-panel provide the operating status of individual port and whole system.

Technical Details:

Standards

IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet (PD INPUT)
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow Control


Features

Number of Ports: 5 10/100/1000BaseT(X) with 2 PSE Port and 1 PD Port
Transmission Method: Store and Forward


Filtering/Forwarding Rates

1000Mbps port ? 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps

Buffer Memory128K Bytes frame Buffer
MAC Table4000

Transmission Media

10/100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5E UTP/STP


Led Indicators

Device:1x Power
1x Uplink
1x PD
per Port:
je 1x LINK/ACT
2x PoE PSE


Power Supply

48V/DC with 36W or 1x Port PoE IEEE802.3at INPUT


Power Budget

Powered from PD Port : 25W Uplink PD
Powered from PD Port and 36W power adaptor :36W (The power adaptor is for optional)


Dimensions

115 × 85 × 26 mm (L x W x H)


Weight

0,4kg


Operating Temperature

0 to 50°C



Humidity

10 to 90% RH (non-condensing)


Certifications

FCC Class B, CE
