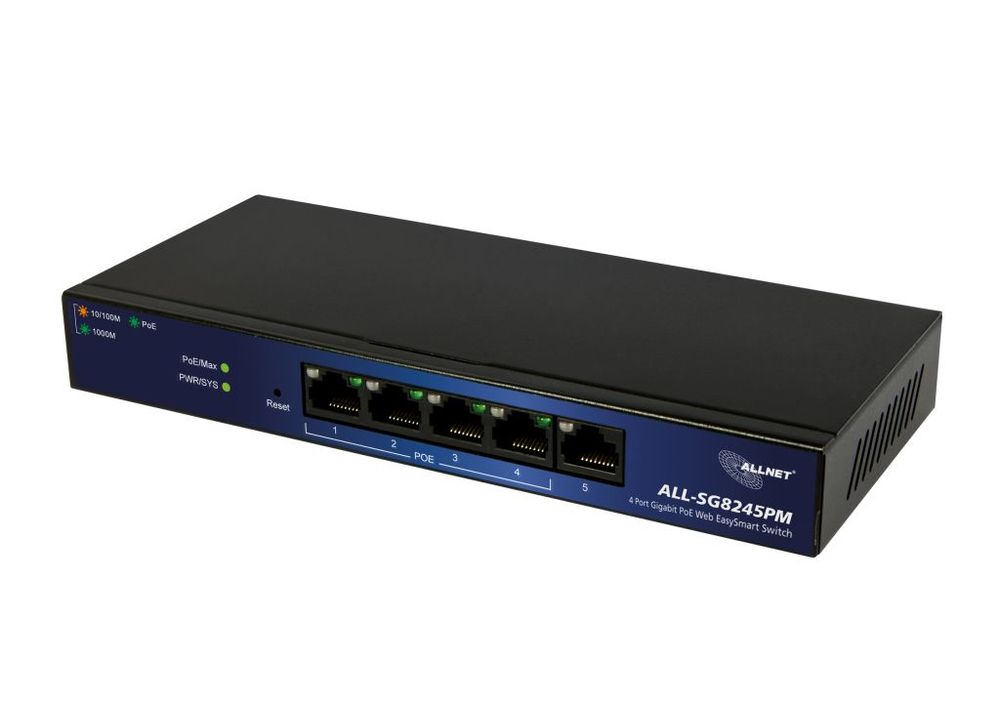

ALLNET ALL-SG8245PM / managed 5 Port Gigabit Switch, 4x PoE AT 30W per Port

ALLNET ALL-SG8245PM / managed 5 Port Gigabit Switch, 4x PoE AT 30W per Port

5-port 10/100/1000Mbit/s managed Gigabit Ethernet Switch mit 4x PoE Ausgabe (802.3af)

Highlights:

5 Port 10/100/1000Mbit/s Gigabit Ethernet Switch mit 4x PoE Ausgabe (802.3af)
Eigenverbrauch 3W (PoE Budget ca. 70W für weitere 4 Ports)
Smart managed
Lüfterloses Design



Der neue ALLNET ALL-SG8245PM Switch ist eine solide Basis für einen vernetzten Arbeitsplatz. Mit seinen insgesamt 5 abwärtskompatiblen Gigabit Ports lassen sich Computer, Drucker, Access Points, etc. zuverlässig miteinander vernetzen. Der ALL-SG8245PM kann über seine 4 PoE Ports (IEEE802.3af) PoE fähige Endgeräte auch mit Strom versorgen, sodass diese kein zusätzliches Stromkabel benötigen. Um den für einen Arbeitsplatz sehr wichtigen geräuschlosen Betrieb zu gewährleisten, ist der ALL-8245PM im lüfterlosen Design konzipiert. Für optimalen Nutzungskomfort ist er “smart managed“. Das heißt zum unter anderem für VLAN und QoS konfigurierbar.

Technische Daten:

Switch working:
Layer 2-Switch, Web easy smart managed

Switch-Typ:

standalone

Standards:IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3az EEE
IEEE802.3ad Link Aggregation
IEEE802.1q VLAN
IEEE802.1p-based QoS

Switching-Ports:

5x RJ45 10/100/1000BaseT(X)
4x PoE IEEE802.3at max. 30W per Port

Special:

4x PSE Port for PoE Devices

Uplink:

yes

Full Duplex Mode:

yes

Buffer Memory:

1Mbits

Jumbo Frames:9216byte

MAC adress table:

2K


Filtering/Forwarding:
Store-and-Forward

LED Define:

Power/System: Green LED
Off: power off or fail
On: power on
Blinking: system booting up

PoE Alert: Green LED
Off: No over PoE max power budget (50W)
On: Over PoE max power budget (50W)

RJ 45 Port:LINK/ACT: bio-color LED
Off: port disconnected or link fail
Green on: 1000Mbps connected
Amber on: 10/100Mbps connected
Blinking: sending or receiving data

PoE:Off: PoE power output off
Green on: PoE power output on

Layer2 Basic:

Port:Auto Negotiation of speed and duplex modes
Jumbo frame support
Mirror:Port mirroring both on ingress and egress traffic
VLAN:802.1Q VLAN
Port-based VLAN
LACP:Link Aggregation = IEEE802.3ad
Multicast:Blocking of unknown multicast traffic
Qos:IEEE802.1p-based QoS
Port-based QoS
Scheduling Method = WFQ or SP
IGMP Snooping:Support IGMPv1 Snooping RFC 1122, RFC4541
Support IGMPv2 Snooping RFC 2236, RFC4541
Support IGMPv3 Snooping(Partial) RFC 3376
Security:STP / Self Loop Support
Broadcast Storm Control Support
Management:User Interface Web-based Management
User Account System password protection
PoE:PoE power output On/Off management

Power Input:

Power-Input:
AC to DC external power adapter
Input: 100~240V AC
Output: 55VDC / 1,3A


Housing:Metall/ Desktop
PoE Output power capacity:Maximum output :30W per each port
1. Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or
PoE+
2. Automatically discover the connection of PD device and immediately sends power to it
3. Auto disable port if the port current is over 700mA or short happens
4. Priority default setting is lower port NO. has high priority
5. The maximum power used by power devices is defined by the following classification.
When Port works in Auto Mode, the output port power limit will be associated with PD
classification Value.
6. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out
power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable

Dimension:193 x 84 x 26mm

Environment:

Operating Temperature: 0 ~ 50 °C
Operating Humidity: 10% ~ 90% (non condensing)
Storage Temperature: -40 ~ 70 °C
Operating Humidity: 5% ~ 90% (con condensing)


Marks:CE FCC EMI class B, ROHS
