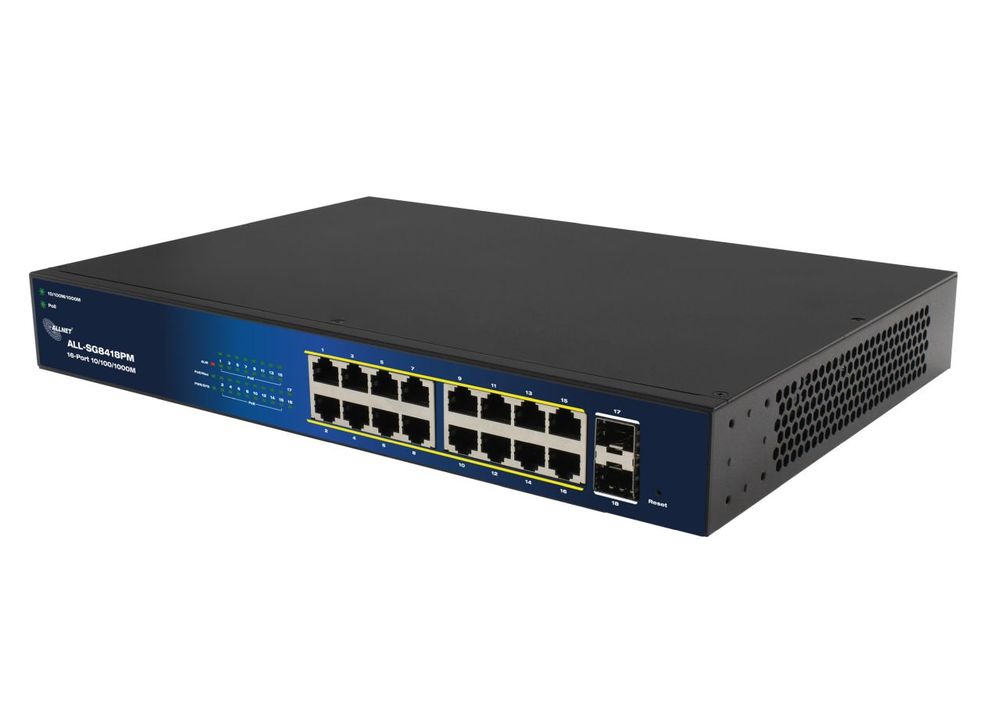

ALLNET Switch smart managed Layer2 18 Port Gigabit ? 18x GbE ? PoE Budget 240W ? 16x PoE at ? 2x SFP ? 48,3 cm ( 19 Zoll ) ? Lüfterlos ? ALL-SG8418PM

ALLNET 18 Port Managed Gigabit Layer-2 Switch +2x SFP MiniGbic Slots ohne Lüfter für Desktop und 48,3 cm ( 19 Zoll ) Rackinstallation Highlights:18 Port Gigabit non-blocking Switch Architektur 16x PoE Ports nach IEEE802.3af/at Standard 2x 1GbE SFP Ports für optionale GBIC-Module VLAN Port-Based / Tagged Based Link Aggregation ( IEEE802.3ad LACP QoS multi-label, queue config, QoS mapping ) Total-Lüfterlos, keine nervende Geräusche mehr... max. 240W Budget 48,3 cm ( 19 Zoll )Zoll-Winkel inklusive PoE Budget 240W Unterstützt Endspan POE PoE-Belegung = Endspan (1/2 und 3/6) Entdecken Sie den neuen ALLNET ALL-SG8418PM Switch – die ideale Lösung für kleine und mittlere Arbeitsgruppen, die eine schnelle und zuverlässige Netzwerkverbindung benötigen. Mit 16 abwärtskompatiblen Gigabit PoE Ports bietet dieser Switch eine leistungsstarke Konnektivität für Ihre PoE-fähigen Geräte.
Dank seines lüfterlosen Designs eignet sich der ALL-SG8418PM perfekt für Büroumgebungen, da er keine störenden Geräusche erzeugt. Er ist smart managebar und unterstützt eine Vielzahl von Standards wie QoS, VLAN, Storm-Control und IGMP Snooping, was für höchste Performance und Sicherheit in Ihrem Netzwerk sorgt.
Das robuste Metallgehäuse des Switches ist sowohl für die Montage im 19-Zoll-Schrank als auch zur Wandmontage geeignet. Darüber hinaus verfügt der ALL-SG8418PM über 2x SFP miniGBIC Slots, um auch entfernte Server oder Uplink-Endgeräte über Lichtwellenkabel anzubinden.

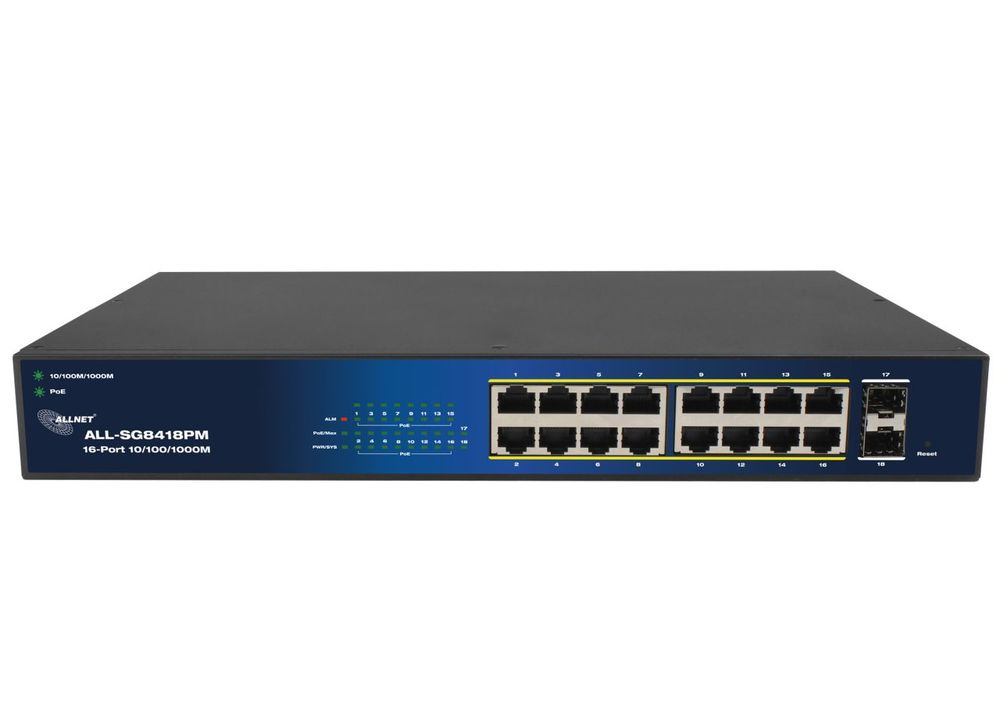

Entscheiden Sie sich für den ALLNET ALL-SG8418PM Switch und erleben Sie eine nahtlose Netzwerkverbindung ohne Kompromisse bei Leistung und Zuverlässigkeit.Mechanische Zeichnung: Front-Panel: Technical Details: Items Specifications Model No. ALL-SG8418PM Key
Components RTL8382M+RTL8218D
IP808ARx2 PSE controller
DDR:1Gb
Flash IC:16MB I/O ports 16x GbE ports, RJ45
2x SFP Giga Ports
Reset Button: reset to default setting, re-start system PoE ports Port# 1~ 16
IEEE802.3at, IEEE802.3af LED Define PWR/SYS: Green LEDOff: power off or fail On: power on ALM: Red LED Off: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. PoE Max.: Green LED Off: No over PoE max power Alert On: Over PoE max power Alert Port LED
Link/ACT: GreenOff: port disconnected or link fail Green on: 10/100/1000Mbps connected Blinking: sending or receiving data PoE: Green LEDOff: PoE power output off Green on: PoE power output on SFP Port: Off: disconnected or fail Green: 100/1000Mbps connected Blinking: data transmitting HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3x flow control 3 years @ 40? PoE power pin-out Alternative A (Pin 1,2/3,6) PoE Output power capacity Maximum output :30W per each portCompliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+ Automatically discover the connection of PD device and immediately sends power to it Auto disable port if the port current is over 700mA or short happens Priority can be configured and default setting is lower port NO. has high priority The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.
Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable PoE Power Budget 240Watt Reset button Support reset to default configuration Dimension 441mm(W)x190mm(D)x44mm(H) FAN Design N/A Temperature Operating: 0 ~ 40?
Storage : -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software Feature Status System
Information     Logging Message     Port Statistics   Error Disabled   Bandwidth Utilization   Link Aggregation     MAC Address Table 8K   Network IP Address Static / Dynamic   System Time SNTP / From Computer / Manual Time   Port Port Setting State / Speed / Duplex / Flow Control   Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast
Flood / DHCP Rate Limit / Port Security / Self Loop
/ Unicast Flood / Unknown Multicast Flood Link Aggregation Group   Port Setting State / Speed / Flow Control LACP   EEE     Jumbo Frame 9K Byte   PoE Global Setting Schedule Status   Priority Setting     Power Limit     Power Show     VLAN VLAN Create VLAN   VLAN Configuration   Membership   Port Setting   Voice VLAN Property   Voice OUI   Protocol VLAN Protocol Group   Group Binding   MAC VLAN MAC Group   Group Binding   Surveillance VLAN Property   Surveillance OUI   GVRP Property   Membership   Statistics   MAC Address
Table  Dynamic Address Aging Time   Static Address     Filtering Address     Spanning Tree Property State / Operation Mode /
Path Cost / BPDU
Handling  Operation Mode : STP/RSTP/MSTP Port Setting     MST Instance     MST Port Setting     Statistics     Discovery LLDP Property   Port Setting   MED Network Policy   MED Port Setting   Packet View   Local Information   Neighbor   Statistics   Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address   Router Port   Forward All Table   Throttling   Filtering Profile   Filtering Binding   IGMP Snooping Property State / Version / Report Suppression Querier   Statistics   MLD Snooping Property State / Version / Report Suppression Statistics   MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting   Group Address   Security RADIUS     TACACS+     AAA Method List   Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management
Access Management VLAN   Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL   Management ACE   Authentication Manager Property   Port Setting   MAC-Based Local Account       WEB-Based Local Account   Sessions   Port Security     Protected Port     Storm Control   State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property   Port Setting   Dynamic ARP
Inspection Property   Statistics   DHCP Snooping Property   Statistics   Option82 Property   Option82 Circuit ID   IP Source Guard Port Setting   IMPV Binding   Save Database   ACL MAC ACL     MAC ACE     IPv4 ACL     IPv4 ACE     IPv6 ACL     IPv6 ACE     ACL Binding     QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping   DSCP Mapping   IP Precedence Mapping   Rate Limit Ingress / Egress Port   Egress Queue   Diagnostics Logging Property Console / RAM / Flash Remote Server   Mirroring     Ping     Traceroute     Copper Test     Fiber Module     UDLD Property Message Time Neighbor   Management User Account      Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP)     Save Configuration Source File / Destination File, Restore Factory Default SNMP View   Group   Community   User   Engine ID   Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification   RMON Statistics     History     Event     Alarm
