ALLNET Switch smart managed Layer2 28 Port ? 24x 1 GbE ? PoE Budget 400W ? 4x SFP+ ? 48,3 cm ( 19 Zoll ) ? Lüfterlos ? ALL-SG8428v2FPM-10G

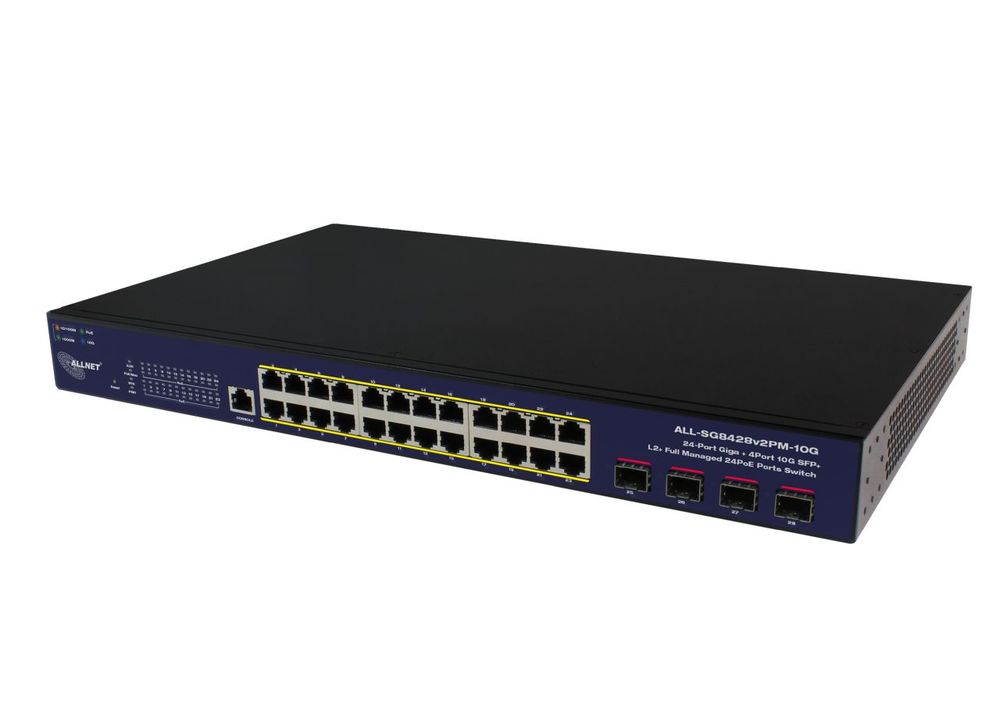

ALLNET Switch smart managed Layer2 28 Port • 24x 1 GbE • PoE Budget 400W • 4x SFP+ • 48,3 cm ( 19 Zoll ) • Lüfterlos • ALL-SG8428v2FPM-10G Highlights: 24 Port PoE Gigabit non-blocking Switch Architektur + 4 SFP+ Mini-GBIC Slots = Total 28 Ports PoE Standard nach IEEE802.3af / at max. 30W pro Port Unterstützt NWay Protokoll für die Geschwindigkeit (10/100/1000Mbps) und Duplexmodus (half/full) auto-detection Switch Kapazität bis zu 128Gbps 16K MAC Adress Tabelle 12K bytes Jumbo-Frames 400W PoE Budget Hardware Monitor Alarm LÜFTERLOS Sichern Sie sich jetzt den ALLNET Switch smart managed Layer2 28 Port - das Powerhouse für Ihr Netzwerk!
Mit 24 Gigabit-Ethernet-Ports, die PoE nach IEEE802.3af/at unterstützen und eine maximale Leistung von 30W pro Port bieten, sind Sie in der Lage, Ihre Geräte zuverlässig zu versorgen. Zusätzlich verfügt dieser Switch über 4 SFP+ Mini-GBIC Slots, was die Gesamtzahl der verfügbaren Ports auf beeindruckende 28 erhöht.
Dieser Switch bietet nicht nur Power, sondern auch intelligente Funktionen. Dank des NWay-Protokolls erkennt er automatisch die optimale Geschwindigkeit (10/100/1000Mbps) und den Duplexmodus (half/full) für Ihre Geräte. Die Switch-Kapazität beträgt bis zu 128Gbps, und die 16K MAC-Adresstabelle gewährleistet eine effiziente Datenverwaltung.
Mit einem großzügigen Jumbo-Frames-Speicher von 12K Bytes sind Sie bereit für die Übertragung großer Datenmengen. Das integrierte 400W PoE-Budget bietet ausreichend Leistung, um Ihre PoE-Geräte zu betreiben, und das alles ohne Lüfter, was eine leise und störungsfreie Umgebung gewährleistet.
Erweitern Sie Ihre Netzwerkmöglichkeiten und verlassen Sie sich auf die Qualität des ALLNET Switch smart managed Layer2 28 Port. Bestellen Sie noch heute den ALL-SG8428v2FPM-10G und steigern Sie die Leistungsfähigkeit Ihres Netzwerks auf das nächste Level!Mechanical Drawings: Technical Details: Hardware-Specs: Items Specifications Model No. ALL-SG8428v2FPM-10G      Key Components RTL9301-CG+RTL8218Dx3 GD32E230G8U6TR + RTL8238Bx3 Flash IC: MXIC 32M Byte DDR: 2G bits I/O ports 24x GbE ports, RJ45
4 x 10G ports, SFP+
Reset Button: reset to default setting, re-start system
Console port by RJ45 type PoE ports Port# 1~ 24

IEEE802.3at, IEEE802.3af LED Define PWR: Green LEDOff: power off or fail On: power on SYS: Green LEDOff: power off or fail On: system is ready Blinking: system booting up ALM: RED LEDOff: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. PoE Max: Green LEDOff: No over PoE max power Alert On: Over PoE max power Alert 1-24 Port LED:

Link/ACT:Off: port disconnected or link fail Green on: 1000Mbps connected Amber on: 10/100Mbps connected Blinking: sending or receiving data 25-28 port LED:

SFP+:

• Off: disconnected or fail
• Blue: 10Gbps connected
• Green: 1000Mbps connected
• Blinking: data transmitting
PoE: Green LEDOff: PoE power output off Green on: PoE power output on HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3ae SFP+
IEEE802.3az EEE
MAC address Table: 16K
Packet buffer size: 12Mbit
Jumbo Frame: 12K bytes
128Gbps switching capacity
Forwarding rate: 95.2Mpps (64-byte package size) Data Transfer Rate Ethernet:10 Mbps (half duplex),20 Mbps (full duplex)
Fast Ethernet:100 Mbps (half duplex),200 Mbps (full duplex)
Giga Ethernet:2000 Mbps (full duplex)
10 Gigabit Ethernet:20 Gbps (full duplex) System Monitor HW Monitor IC: ADT7476 Voltage MonitorInput Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHY Voltage: 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C Power Input Internal power supply
Input: 90~264VAC/47~63Hz
Output: 600W PoE Power Budget 400W Reset button Support reset to default configuration Dimension 441(W) x 270(D) x 44(H) mm FAN Design Fanless Temperature Operating: 0 ~ 40?
Storage : -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software-Specs: Status System Information Logging Message Port Statistics Error Disabled   Bandwidth Utilization Link Aggregation MAC Address Table 16K Network IP Address Static / Dynamic System Time SNTP / From Computer / Manual Time Port Port Setting State / Speed / Duplex / Flow Control Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group Port Setting State / Speed / Flow Control LACP EEE Jumbo Frame 12K Byte PoE Global Setting Schedule Status   Priority Setting     Power Limit     Power Show     VLAN VLAN Create VLAN VLAN Configuration Membership Port Setting Voice VLAN Property   Voice OUI   Protocol VLAN Protocol Group   Group Binding   MAC VLAN MAC Group   Group Binding   Surveillance VLAN Property   Surveillance OUI   GVRP Property   Membership   Statistics   MAC Address Table Dynamic Address Aging Time Static Address     Filtering Address Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode : STP/RSTP/MSTP Port Setting MST Instance     MST Port Setting     Statistics Discovery LLDP Property Port Setting MED Network Policy   MED Port Setting   Packet View Local Information Neighbor Statistics Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table   Throttling   Filtering Profile   Filtering Binding   IGMP Snooping Property State / Version / Report Suppression Querier Statistics MLD Snooping Property State / Version / Report Suppression Statistics   MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting   Group Address   Security RADIUS     TACACS+     AAA Method List   Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL   Management ACE   Authentication Manager Property Port Setting   Sessions   Port Security     Protected Port     Storm Control   State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property   Statistics   DHCP Snooping Property   Statistics   Option82 Property   Option82 Circuit ID   IP Source Guard Port Setting   IMPV Binding   Save Database   ACL MAC ACL     MAC ACE     IPv4 ACL     IPv4 ACE     IPv6 ACL     IPv6 ACE       ACL Binding     QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute     Copper Test     Fiber Module     UDLD Property Message Time Neighbor   Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group   Community   User   Engine ID   Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics     History     Event     Alarm
