ALLNET Switch smart managed Layer2 24 Port ? PoE Budget 370W ? 24x PoE at ? 4x SFP ? 48,3 cm ( 19 Zoll ) ? ALL-SG8428v2PM

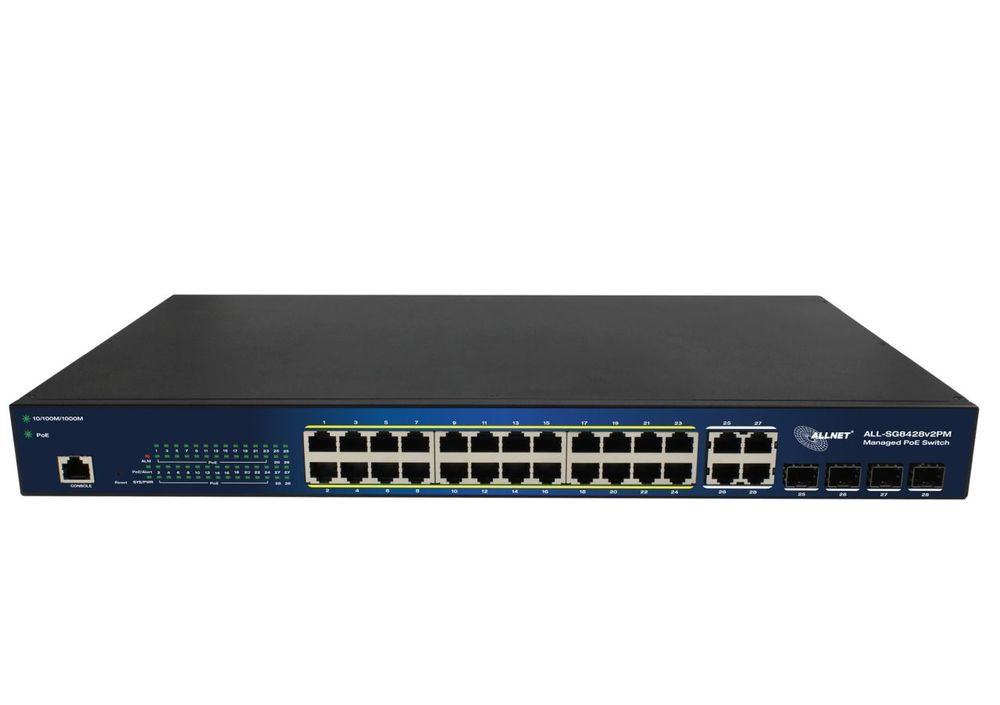

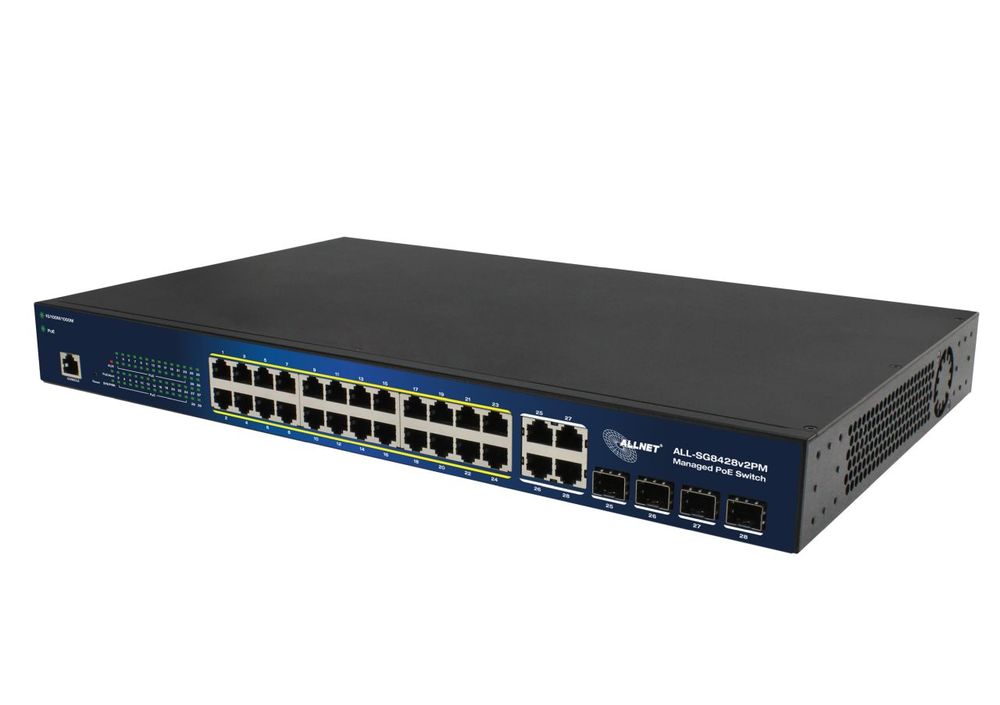

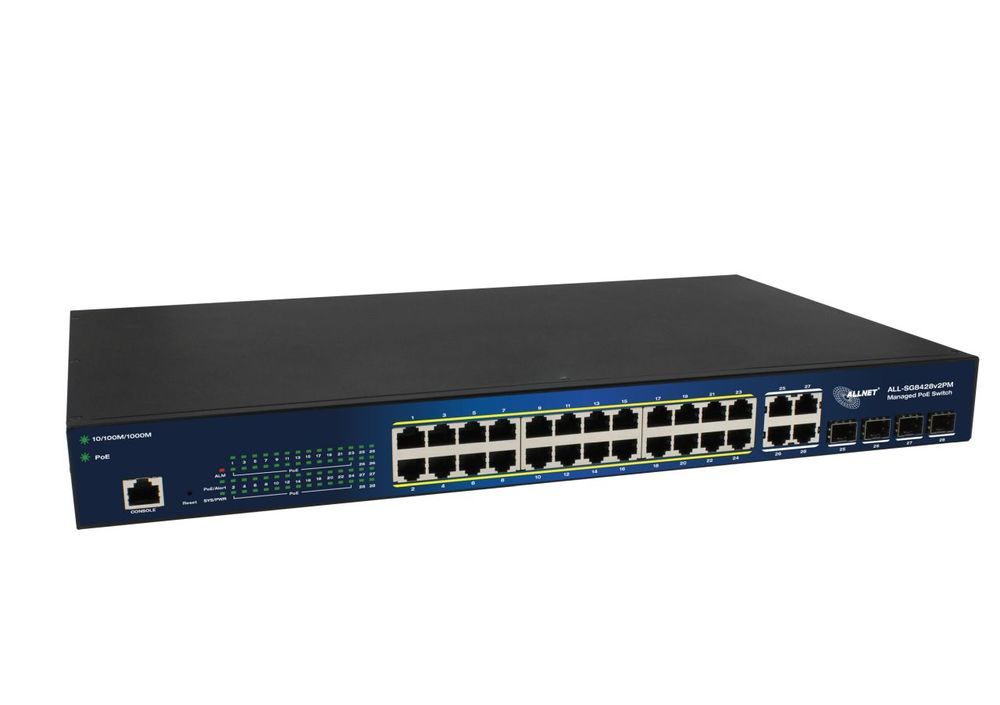

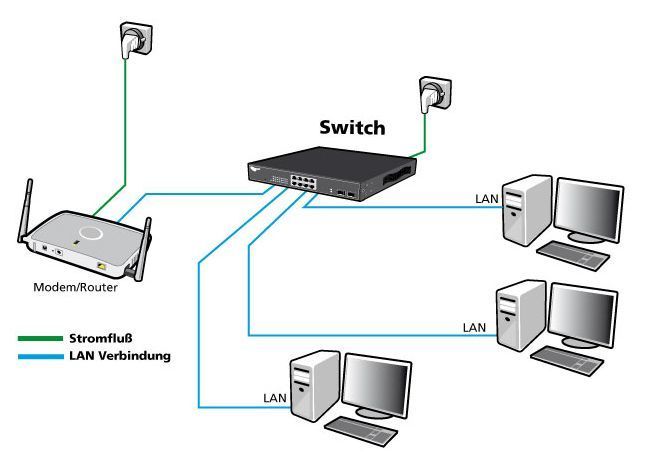

ALLNET Switch smart managed Layer2 24 Port • PoE Budget 370W • 24x PoE at • 4x SFP • 48,3 cm ( 19 Zoll ) • ALL-SG8428v2PM Highlights:24 Port Gigabit non-blocking Switch Architektur Unterstützt NWay Protocol (10/100/1000Mbps) und Duplexmodus (half/full) Auto Detektion support back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet VLAN: Port basiert / Tagged basiert Link Aggregation (IEEE802.3ad LACP) IGMP Snooping (v1/v2) QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP) Stormcontrol (Broadcast, Multicast, Unicast) 370W PoE Budget unterstützt PoE IEEE802.3af/at PSE-Devices Der neue ALLNET ALL-SG8428v2PM Switch stellt eine optimale Basis für kleine und mittlere Arbeitsgruppen mit hohem Netzwerk- und Datenaufkommen dar und ermöglicht eine schnelle Datenübertragung im Netzwerk. Mit insgesamt 24 abwärtskompatiblen Gigabit Ports sind die angebundenen Rechner und Server zuverlässig und leistungsstark miteinander verbunden. Der ALL-SG8428v2PM kann durch das interne 450W Netzteil ein maximales PoE Budget von 370W an die Endgeräte weiterreichen. Die 24 Gigabit PoE Ports unterstützen den PoE Standard IEEE802.3af und den IEEE802.3at Standard. Im Switch sind seitlich 2 Lüfter verbaut.Mechanical Drawings:  Technische Details: Items Specifications Model No. ALL-SG8428v2PM Key Components RTL8382M+RTL8218Dx2+RTL8214FC
Flash IC:16MB
DDR: 1Gb
IP808ARx3 PSE controller I/O ports 24x GbE ports, RJ45
4 x port GbE SFP/RJ45 combo
Reset Button: reset to default setting, re-start system PoE ports Port# 1~ 24

IEEE802.3at, IEEE802.3af LED Define PWR/SYS: Green LEDOff: power off or fail On: power on Blinking: system booting up PoE Alert: Green LEDOff: No over PoE Max power Alert On: Over PoE Max power Alert ALM: Red LEDOff: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage, Fan failed. Port LED:

RJ45:Off: port disconnected or link fail Green on: 10/100/1000Mbps connected Blinking: sending or receiving data PoE:Off: PoE power output off Green on: PoE power output on SFP:

• Off: disconnected or fail
• Green: 100/1000Mbps connected
• Blinking: data transmitting HW feature IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3az EEE
IEEE802.3x
IEEE802.3z
IEEE802.3at, IEEE802.3af
MAC address Table: 8K
Packet buffer size: 4.1M
Jumbo Frame: 10K bytes
56Gbps switching capacity
Forwarding rate: 41.66Mpps (64-byte package size) Data Transfer Rate Ethernet:10 Mbps (half duplex),20 Mbps (full duplex)
Fast Ethernet:100 Mbps (half duplex),200 Mbps (full duplex)
Giga Ethernet:2000 Mbps (full duplex) PoE power pin-out Alternative A (Pin 1,2/3,6) PoE Output power capacity Maximum output :30W per each portCompliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+ Automatically discover the connection of PD device and immediately sends power to it Auto disable port if the port current is over 700mA or short happens Priority default setting is lower port NO. has high priority The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable System Monitor HW Monitor IC: ADT7476 Voltage Monitor Input Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHY Voltage: 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C Power Input Internal power supply

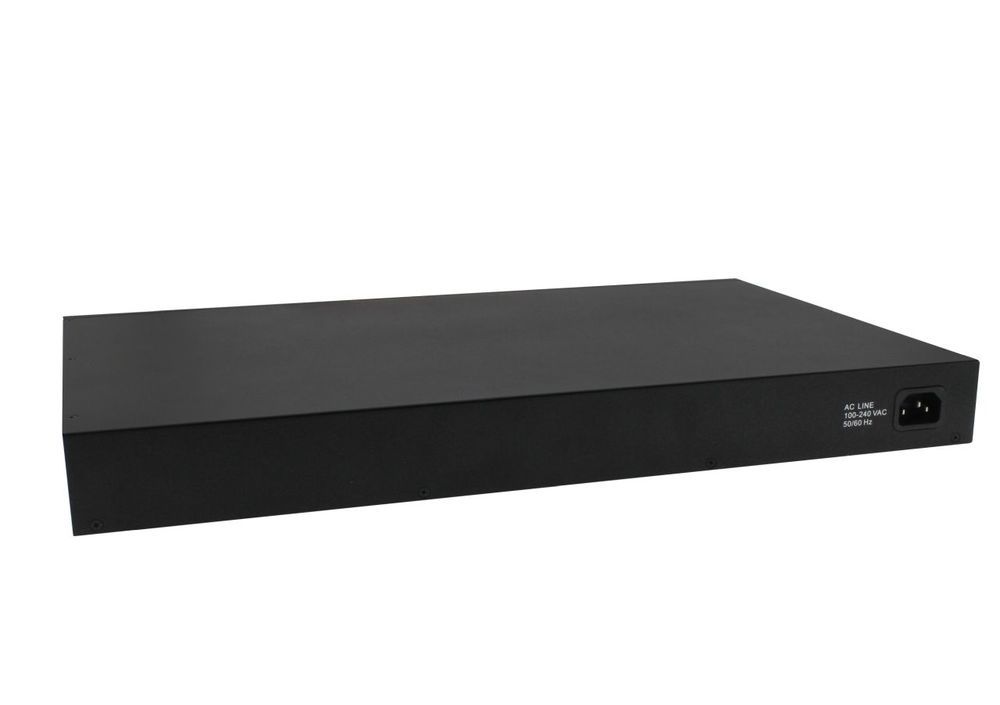

Input: 100-240V AC
Output: 450W PoE Power Budget 370W Reset button Support reset to default configuration Dimension 441(W) x 270(D) x 45(H) mm FAN Design 6300 Fanx2 (Smart Fan) Temperature Operating: -5~ 50?
Storage : -40 ~ 70? Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 90% RH (non-condensing) Software Feature Status System Information     Logging Message     Port Statistics   Error Disabled Bandwidth Utilization   Link Aggregation   MAC Address Table 8K   Network IP Address Static / Dynamic   System Time SNTP / From Computer / Manual Time   Port Port Setting State / Speed / Duplex / Flow Control   Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood Link Aggregation Group   Port Setting State / Speed / Flow Control LACP   EEE     Jumbo Frame 9K Byte   PoE Global Setting Schedule Status Priority Setting Power Limit Power Show VLAN VLAN Create VLAN VLAN Configuration Membership   Port Setting Voice VLAN Property Voice OUI Protocol VLAN Protocol Group Group Binding MAC VLAN MAC Group Group Binding Surveillance VLAN Property Surveillance OUI GVRP Property Membership Statistics MAC Address Table Dynamic Address Aging Time   Static Address Filtering Address     Spanning Tree Property State / Operation Mode / Path Cost / BPDU Handling Operation Mode : STP/RSTP/MSTP Port Setting     MST Instance MST Port Setting Statistics     Discovery LLDP Property Port Setting   MED Network Policy MED Port Setting Packet View   Local Information   Neighbor   Statistics   Multicast General Property Unknown Multicast Action / Multicast Forward Method Group Address Router Port Forward All Table Throttling Filtering Profile Filtering Binding IGMP Snooping Property State / Version / Report Suppression Querier   Statistics   MLD Snooping Property State / Version / Report Suppression Statistics MVR Property State / VLAN / Mode / Group Start / Group Count / Query Time Port Setting Group Address Security RADIUS TACACS+ AAA Method List Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access Management VLAN   Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL Management ACE Authentication Manager Property   Port Setting MAC-Based Local Account WEB-Based Local Account   Sessions   Port Security     Protected Port     Storm Control   State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) DoS Property Port Setting Dynamic ARP Inspection Property   Statistics   DHCP Snooping Property   Statistics   Option82 Property   Option82 Circuit ID   IP Source Guard Port Setting   IMPV Binding   Save Database   ACL MAC ACL     MAC ACE     IPv4 ACL     IPv4 ACE     IPv6 ACL     IPv6 ACE       ACL Binding     QoS General Property CoS / DSCP / CoS-DSCP / IP Precedence Queue Scheduling Strict Priority / WRR CoS Mapping DSCP Mapping IP Precedence Mapping Rate Limit Ingress / Egress Port Egress Queue Diagnostics Logging Property Console / RAM / Flash Remote Server Mirroring Ping Traceroute     Copper Test     Fiber Module     UDLD Property Message Time Neighbor   Management User Account Firmware Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Save Configuration Source File / Destination File, Restore Factory Default SNMP View Group   Community   User   Engine ID   Trap Event Authentication Failure / Link UP_Down / Cold Start / Warm Start Notification RMON Statistics     History     Event     Alarm     Marks Safety LVD EN62368-1:2014   EMC CE    EN55032: 2015+AC:2016
         EN55035: 2017 class A FCC Part15, Subpart B: ANSI C
