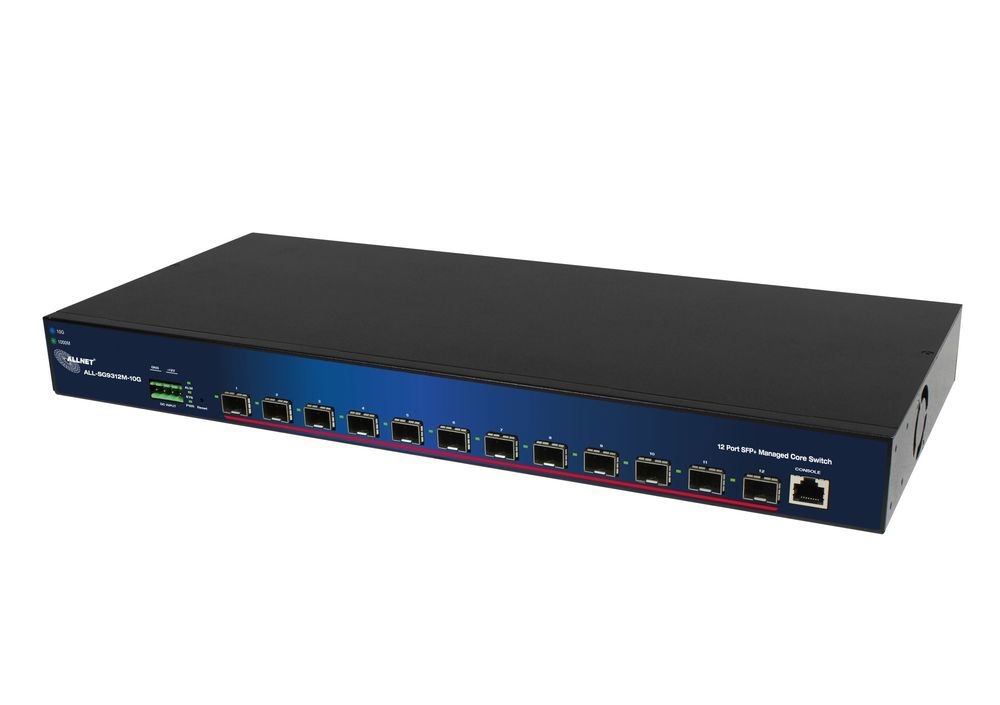

Allnet ALL-SG9312M-10G Switch smart managed Layer2 12 Port • 12x SFP+ 10GbE • 48,3 cm ( 19 Zoll ) • • Core-Switch • Redundant Power Option content_copy

ALLNET Switch smart managed 12 Port 10Gigabit / 12x SFP+ / ALL-SG9312M-10G" Core Switch Highlights: Support 12*10G SFP+ ports Core-Switch Support Web UI for configuration Support Console port with CLI command Support HW monitor Alarm Redundant 12VDC Power-INPUT Dieser Switch ist ein 12-Port 10G SFP+ L2 Switch. Der Switch bietet außergewöhnlich intelligente Web-Management-Funktionen, wie VLAN, QoS, RSTP, IGMP Snooping, LACP, IEEE802.1X, Strom Control...etc. Der Switch ist standardmäßig in einem 19-Rack untergebracht, um in eine Rack-Umgebung zu passen. Mit diesen Funktionen ist der Switch eine hervorragende Wahl für mittlere oder große Netzwerkumgebungen, um die Netzwerkverbindung und Effizienz zu stärken. Durch den optionalen Redundanten 12VDC Strom-Eingang kann der Switch auch über ein optionales externes Netzteil betrieben werden, wenn das Hauptnetzteil kein Strom liefert. Technical Details: Model No. ALL-SG9312M-10G Key Components 1. RTL9313Flash IC: MXIC 32MB (up to 64MB, optional) DDR: 2Gb (up to 4Gb, optional) I/O ports 12 x 10G SFP+ ports

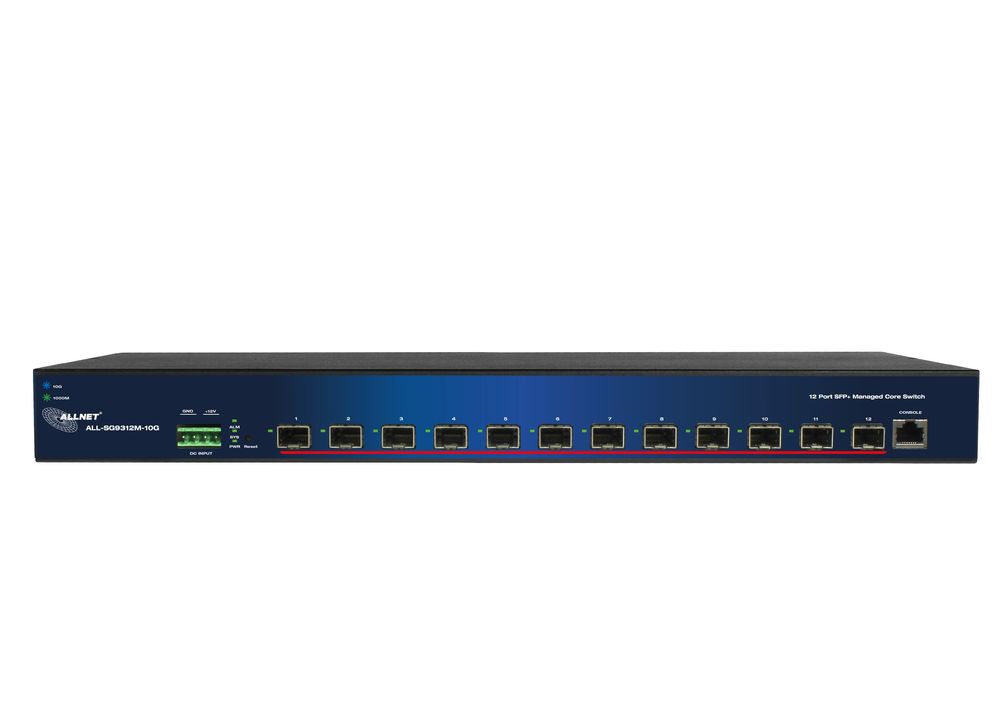

Reset Button: reset to default setting, re-start system Console port by RJ45 type LED Define PWR: Green LEDOff: power off or fail On: power on SYS: Green LED Off: power off or fail On: system is ready Blinking: system booting up Alert: Red LED Off: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. 1-12 Port LED: (SFP+) Link/ACT:Off: port disconnected or link fail Green on: 10G bps connected Amber on: 1000Mbps connected Blinking: sending or receiving data HW feature IEEE802.3az EEE IEEE802.3ah 10GBase-T
MAC address Table: 32K
Packet buffer size: 16Mbit Jumbo Frame: 12K bytes System Monitor HW Monitor IC: ADT7463
Voltage MonitorInput Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHYVoltage: 1.1V (+/- 5% Alarm Threshold) MACVoltage:1.0V (+/- 5% Alarm Threshold) Temperature MonitorBOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C Power Input Internal power supply

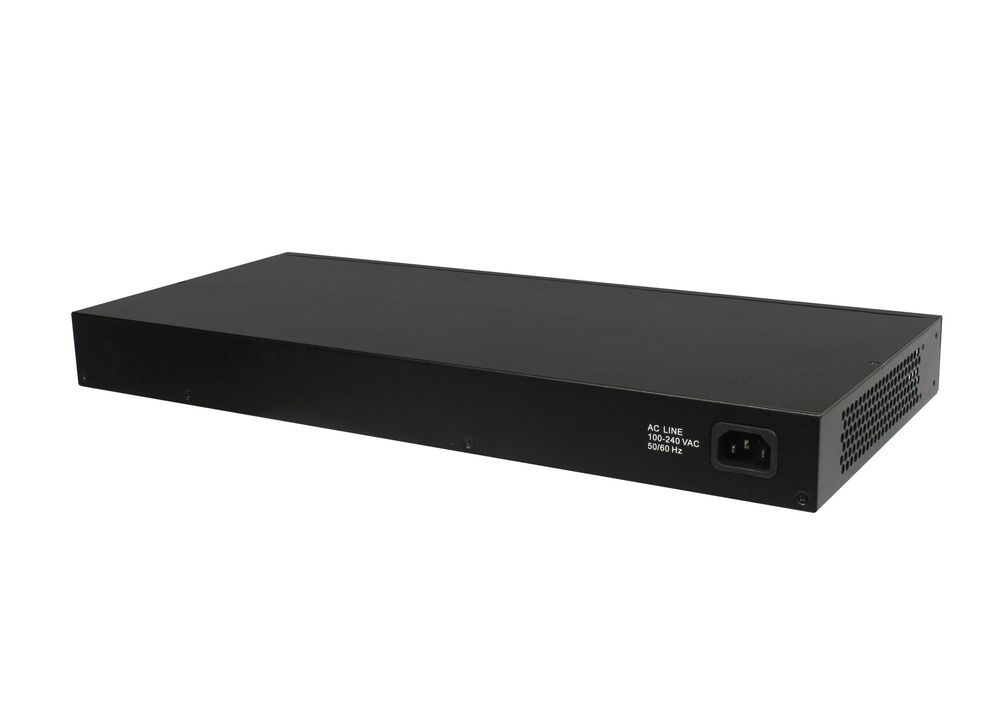

Input: 90~264VAC/47~63Hz Output: 12V/3A (TBD) Reset button Support reset to default configuration Dimension 441(W) x 131(D) x 44(H) mm FAN Design Fan-less Temperature Operating: 0 ~ 50°CStorage : -40 ~ 70°C Humidity Operating: 10% ~ 90% RH (non-condensing)Storage: 5% ~ 90% RH (non-condensing) Hardware Specs Status System Information     Logging Message     Port Statistics   Error Disabled   Bandwidth Utilization   Link Aggregation     MAC Address Table 16K   Network IP Address Static / Dynamic   System Time SNTP / From Computer / Manual Time   Port Port Setting State / Speed / Duplex / Flow Control   Error Disabled Recovery Interval ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop
/ Unicast Flood / Unknown Multicast Flood Link Aggregation Group   Port Setting State / Speed / Flow Control LACP   EEE     Jumbo Frame 12K Byte   VLAN
VLAN
MAC Address Table Spanning Tree VLAN Create VLAN   Priority Setting VLAN Configuration   Power Limit Membership   Power Show Port Setting   Voice VLAN Protocol VLAN Property   Voice OUI   Protocol Group   Group Binding   MAC VLAN MAC Group   Group Binding   Surveillance VLAN Property   Surveillance OUI   GVRP
Surveillance VLAN Dynamic Address Property   Membership   Statistics   Aging Time   Static Address Filtering Address Property State / Operation Mode /
Path Cost / BPDU Handlin Operation Mode : STP/RSTP/MSTP MAC Address Table Port Setting     MST Instance     MST Port Setting     Spanning Tree Discovery Statistics     LLDP Property   MST Instance Port Setting   MST Port Setting MED Network Policy   Statistics MED Port Setting   Discovery Multicast
Multicast Security
Security ACL LLDP
General
General
IGMP Snooping MLD Snooping
IGMP Snooping MVR
MLD Snooping RADIUS Packet View   Local Information   Neighbor   Statistics   Property Unknown Multicast Action / Multicast Forward Method Group Address   Router Port   Forward All Table   Throttling   Filtering Profile   Filtering Binding   Property State / Version / Report Suppression Querier   Statistics   Property State / Version / Report Suppression Statistics   Property State / VLAN / Mode / Group Start / Group Count /
Query Time Port Setting   Group Address       TACACS+ AAA     Method List   Login Authentication Console / Telnet / SSH / HTTP / HTTPS Management Access
TACACS+
AAA Management VLAN   Management Service Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout Management ACL   Management ACE   Authentication Manager Property   Port Setting   ACL
QoS Port Security Sessions       Protected Port Storm Control DoS       State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) Property   Port Security Port Setting   Dynamic ARP Inspection
Storm Control Property   Statistics   DHCP Snooping
Dynamic ARP Inspection Property   Statistics   Option82 Property   Option82 Circuit ID   IP Source Guard MAC ACL Port Setting   IMPV Binding   Save Database       MAC ACE IPv4 ACL IPv4 ACE             IPv6 ACL     IPv6 ACE     ACL Binding     General Property CoS / DSCP / CoS-DSCP / IP Precedence IPv6 ACL Queue Scheduling Strict Priority / WRR IPv6 ACE CoS Mapping   ACL Binding DSCP Mapping   QoS Diagnostics
Diagnostics Management General Rate Limit Logging IP Precedence Mapping   Ingress / Egress Port   Egress Queue   Property Console / RAM / Flash Remote Server   Mirroring Ping         Traceroute Copper Test         Fiber Module     UDLD
Traceroute Property Message Time Neighbor   User Account     Firmware
UDLD
Configuration Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Active Image Active Image / Backup Image Upgrade / Backup Action (Upgrade / Backup) / Method (TFTP / HTTP) Management User Account Save Configuration Source File / Destination File, Restore Factory Default RMON SNMP View   Group   Configuration Community   User   SNMP
Statistics History Event Alarm Engine ID   Trap Event Authentication Failure / Link UP_Down / Cold Start
/ Warm Start Notification   MARKS Safety LVD EN62368:2014   EMC FCC Part 15, Subpart B: ANSI C63.4-2014 class A CE       EN55032: 2015+AC:2016 EN55035: 2017

Technische Daten
Einsatzort Switch	19"
SFP Port Anzahl	12x SFP+
LAN Geschwindigkeit	10GBit/s
Anzahl Ports PoE/LAN	0/12
SFP Geschwindigkeit	SFP+ 10GBit
Belüftung Switch	Mit Lüfter
Management	smart managed (WebGui)
Extra Features	12VDC Redundant Power Input

---
