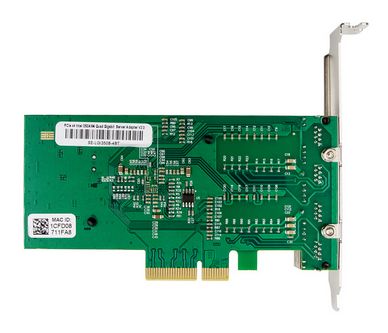

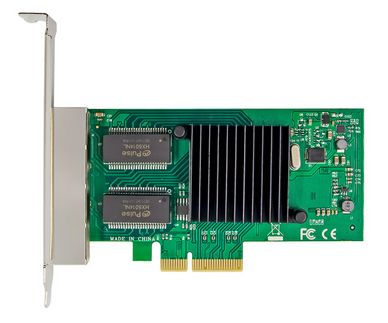

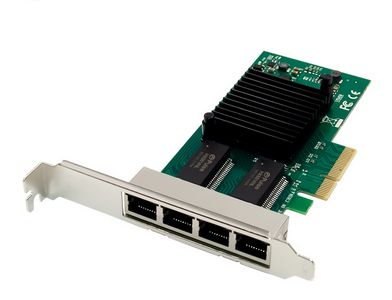

Allnet ALL0136v2-4-GB-TX/I350T4 PCIe 1G x4 Quad Port Gigabit Server Adapter Copper RJ45 I350 ALL0136v2-4-GB-TX content_copy

Dual- and Quad-port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies Overview The ALL0136v2-4-GB-TX Intel Ethernet Server Adapter I350 family, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC). Key Features -- Dual - or Quad -port Gigabit Ethernet adapters with copper or fiber interface options -- Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption -- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports -- Scalable iSCSI performance delivering cost-effective SAN connectivity -- High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s -- Reliable and proven Gigabit Ethernet technology from Intel Corporation Essentials Product Collection Intel I350 Ethernet Server Adapter Controller Processors Intel NHI350AM4 Bus Type/Bus Width PCI Express* 2.1 (5 GT/s) x4-lane, operable in x4, x8 and x16 slot Connections 4 x RJ-45 (Copper) Data Rate Supported 10/100/1000 Mbps (Copper), 1000 Mbps (Fiber) Cable Distances Copper: up to 100 m Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation Fiber: MMF 62.5/50 um Bracket Full-height bracket installed. Low-profile bracket included in package Dimension 130 mm x 69 mm (PCIe Board) Technical Specifications IEEE standard Network topology IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T IEEE* 802.3 Auto-negotiation 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant Integrated PHY for 10/100/1000 Mb/s for multispeed, fulland half-duplex IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames Automatic cross-over detection function (MDI/MDI-X) IEEE 1588 protocol and 802.1AS implementation - Interrupt Levels INTA, INTB, INTC, INTD, MSI, MSI-X System Requirements Windows Client Windows 11/ 10/ 8.1/ 8/ 7 Windows Sever 2008 R2/ 2012/ 2012 R2/ 2016/ 2019/ 2022 Linux RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 Environment &amp Certification Power consumption (typical) Copper: I350T2V2 4.4 W I350T4V2 5.0 W Fiber: I350F2 5.5 W I350F4 6.0 W Storage Humidity Maximum 90% non-condensing relative humidity at 35 °C Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) Connect Speed LED Indicators Not illuminated=10 Mb/s green=100 Mb/s amber=1 Gb/s (Copper) - Green=1 Gb/s. Not illuminated=no link (Fiber) Certifications CE FCC RoHS
