ALLNET DS DIN-RAIL / Hutschienen PC LEC-6032B - Atom E3845

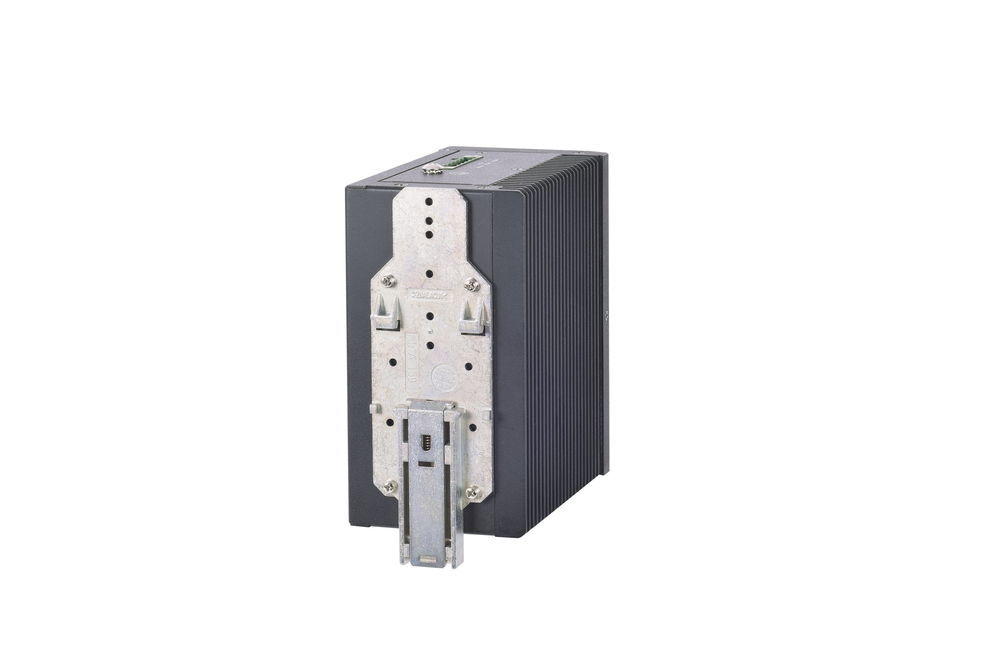

SCADA / ICS Security PC with Intel Atom E3845 CPU and Advanced LAN Bypass Key features Fanless and compact design Intel® Atom™ E3845 1.91GHz SoC CPU Wide Temperature Support: -40~70ºC 6032C with 2 x GbE SFP Fiber, 6032F with 4 x GbE SFP Fiber ESD/surge protection on serial COM ports for harsh environments 3 or 5 x GbE LAN with 1 or 2 pair Gen.3 LAN bypass DIN rail or wall mounting options 1 x USB 3.0 and 1x USB 2.0 port Overview LEC-6032 is a compact fanless industrial cyber security platform with Intel® Bay Trail" Atom™ E3845 CPU. Deployed in remote, unmanned and harsh environments, LEC-6032 supports isolated COM ports, rich LAN ports with advanced Gen.3 LAN bypass and extended operating temperature from -40 ºC to 70 ºC. It also boosts for its flexible design with versatile mounting options (wall mount or DIN-Rail) and Ethernet LAN configuration, making it perfect for performing network security measures at critical infrastructure such as oil refinery, substation, power plants and manufacturing factories.Specifications Platform CPU Intel® Atom™ E3845 1.91GHz SoC CPU Chipset SoC Memory Technology DDR3L SO-DIMM x1 Memory Capacity Up to 8 GB Storage SATA storage 1x SATA connector, optional 6,3 cm ( 2,5 Zoll ) drive bay I/O Ethernet controller Intel i210-IT Default LAN 6032B: 5 x RJ45 Bypass 6032B: 2 pairs Magnetic Isolation Protection 1.5 KV built-in Serial ports LEC-6032B: 1 x Internal pin header (RS-232 only) USB 2.0 2 x Type A USB 3.0 1 x Type A Power and Mechanical Power input 12 ~ 36 Vdc OS and Certifications Operating System Windows 7, Windows 7 Embedded, Linux Kernel 3.X Certifications CE, FCC Class A, RoHS Physical and Environmental Storage temperature -40°C to 85°C Operating temperature -40°C to 75°C Dimensions (W x H x D) 78 mm x 146 mm x 127 mm (7,8 cm ( 3,1 Zoll ) x 14,6 cm ( 5,8 Zoll ) x 5.00) Watchdog Watchdog timer 256 level time interval system reset, software programmable Casing material Aluminum
