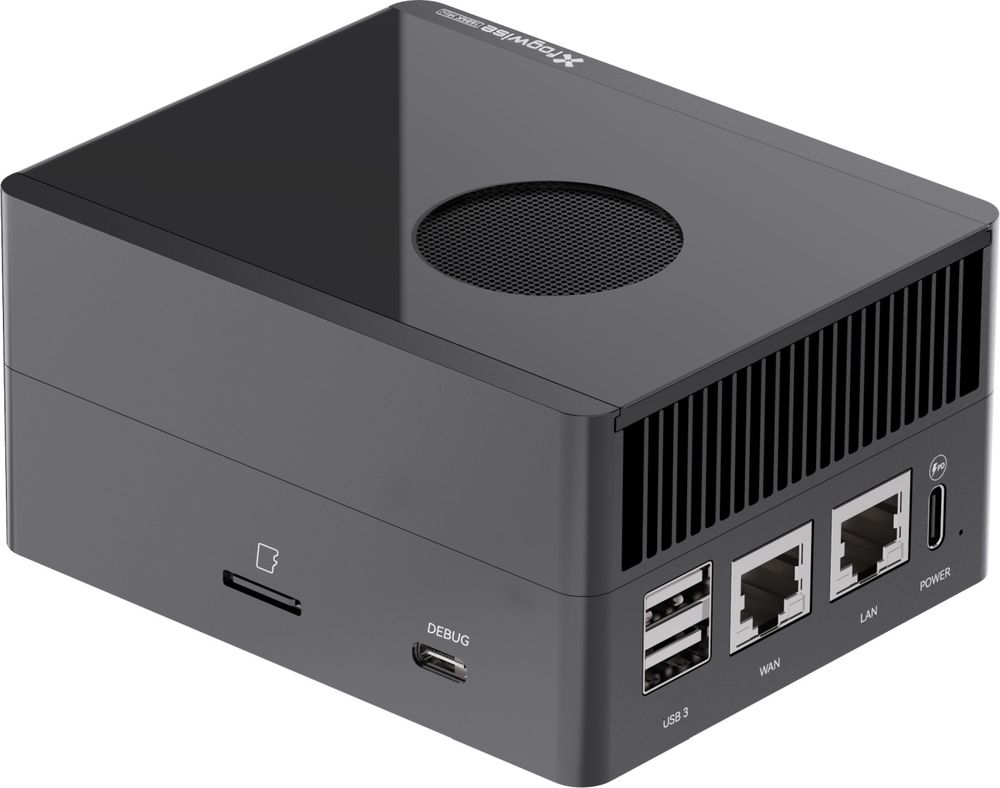

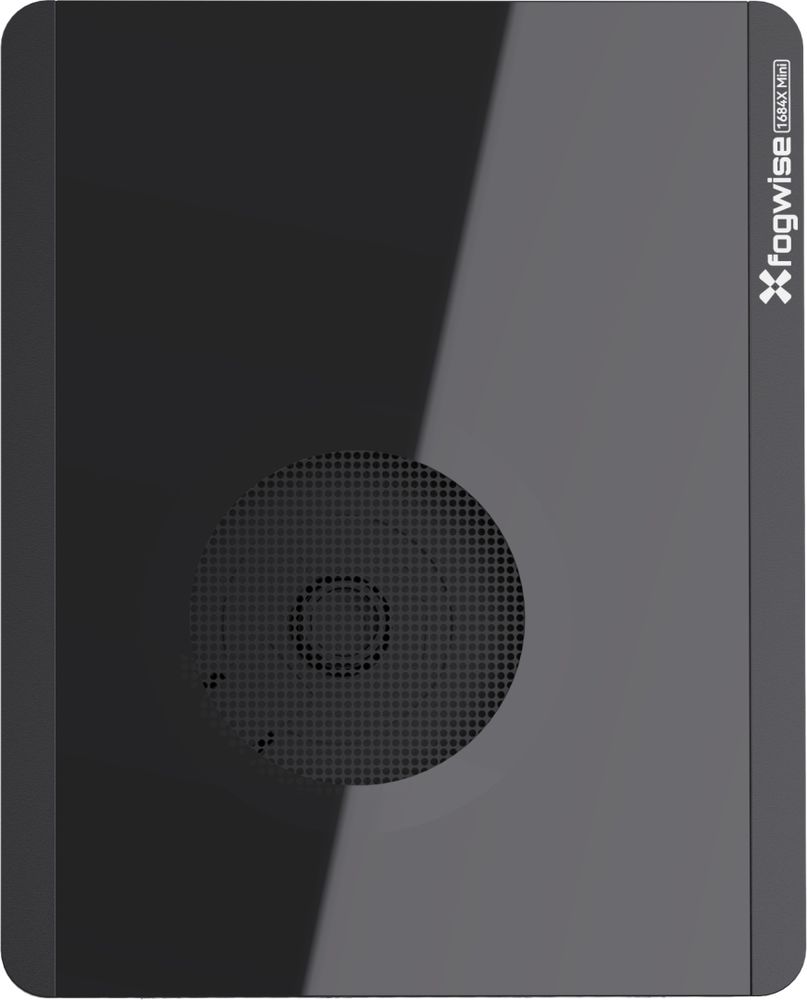

ALLNET RD-Fogwise_Airbox RADXA Fogwise AirBox

SOPHON SG2300X based High-Performance Mini AI Server SOPHON SG2300X with Octa core Cortex-A55 @ 2.3GHz 16GB LPDDR4X RAM 64GB onboard eMMC storage AI Computing Power of up to 24 TOPs @ INT8, 12 TFLOPS @ FP16/BF16, and 2 TFLOPS @ FP32 Video decoding supports H.264 & H.265 with capabilities including 32x 1080P@25fps, 8x 4K@25fps, and 1x 8K@25fps Video encoding supports H.264 & H.265 with capabilities of 12x 1080P@25fps, 3x 4K@25fps, and a maximum of 8K Image codec support JPEG at 1080P@600fps, with a maximum resolution of 32768 x 32768 Supports video post-processing capabilities Built-in high quality speakers Flexibility to Upgrade SoM and Carrier Board Design Interfaces 2x USB 3.0 Host Type-A Port 2x Gigabit Ethernet 1x 2-Pin Speaker(SPK) Interface 1x 6-Pin Microphone(MIC) Interface 1x TF Card Slot 1x 4-Pin Fan Header 1x USB USB Type-C Debug UART 3.3V DC power in x2 1x USB USB Type-C PD 20V Power, at least 65W 1x M.2 M Key Connector for NVMe SSD 1x M.2 E Key Connector for WIFI/BT Card Software Support for Debian/Ubuntu Linux Server Support for Casa OS (web panel, support for online installation of StableDiffusion) Power Requirements 20V / 3A without perpherials and 20V / 5A with all the perpherials connected Temperature range Operating temperature 0-40°C Dimensions / Weight 104 x 84 x 50.2mm 501g Radxa Fogwise AirBox will be available until at least September 2029 FURTHER DETAILS ON RADXA Fogwise AirBox ?Main documentation page on RADXA Fogwise AirBox
