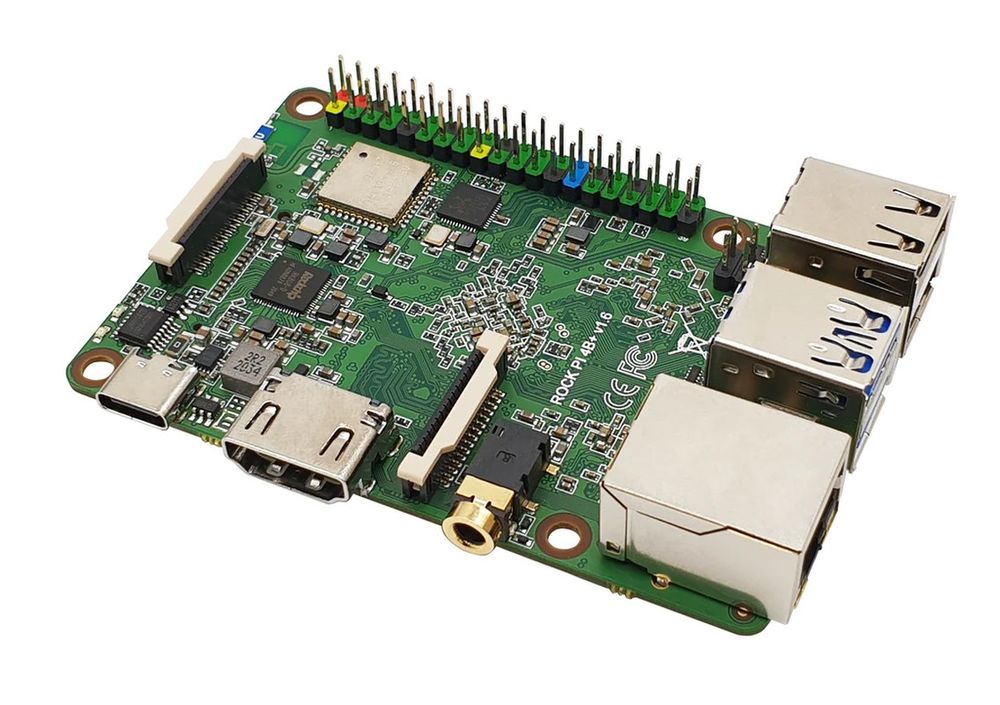

ALLNET RS114BD4E128-UFL Rock Pi 4+ Model B OP1 4GB/128GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss

Rock Pi 4+ Model B OP1 4GB/128GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) mit UFL Anschluss für externe Antenne (176996)
Rockchip OP1 64bit hexa core based SBC
Small form-factor, rich feature set, outstanding design and performance.
Rock Pi 4 is the perfect choice for your personal or business oriented projects.
Rock Pi 4B+ product details
OP164bithexacoreprocessor
Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores
GPU
Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.
Memory LPDDR4
64bit dual channel LPDDR4@3200Mb/s, 2GB or 4GB
SPI Flash
nicht im Lieferumfang!
Wifi/BT Antenna
Wifi/BT with external antenna support*

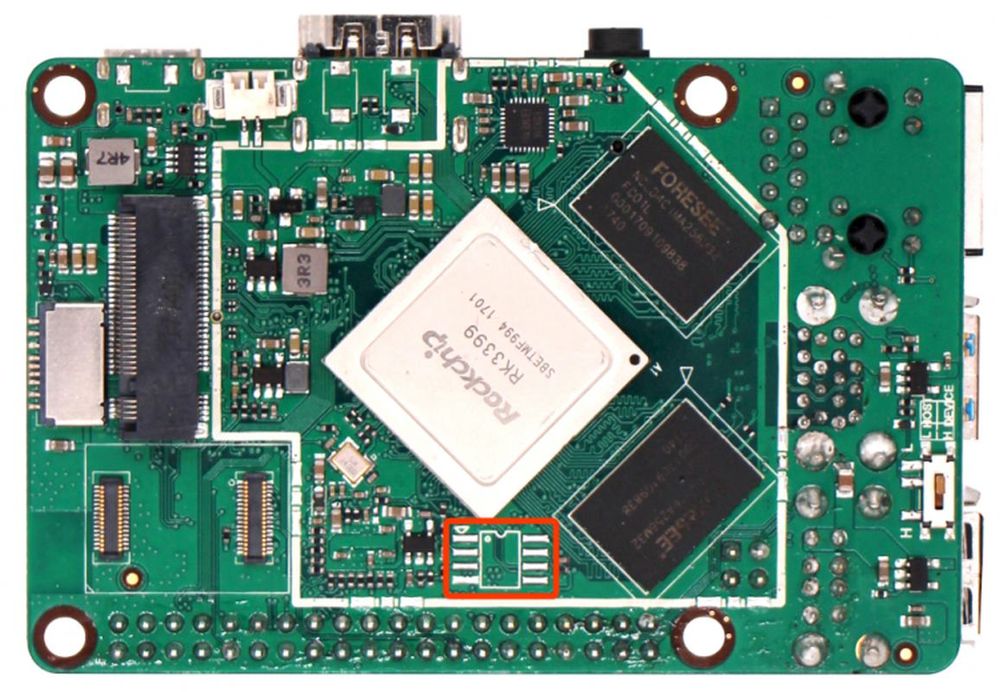

*an uFL connector must be soldered on the board, which will then disable the on board antenna. Connector and soldering service available in the store!
Onboard eMMCmodule
Industrial level high performance eMMC storage, 16G/32G/64G/128G available
Micro SD card
uSD slot supports up to 128G uSD card
M.2 SSD
M.2 connector supports up to 2T M.2 NVME SSD
note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 10,2 cm ( 4 Zoll )+"
Display HDMI
HDMI 2.0 up to 4k@60
Peripherie
MIPI DSI 2 lanes via FPC connector
HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.
Audio 3.5mm jack with mic with improved mechanics
HD codec that supports up to 24-bit/96kHz audio.
Camera MIPI CSI
MIPI CSI 2 lanes via FPC connector, support up to 8MP camera
USB 3.0 OTG x1
hardware switch for host/device switch, upper one
USB 3.0 HOST x1
dedicated USB3.0 channel, lower one
USB 2.0 HOST x2
Ethernet GbE
Network
Wireless 802.11 ac wifi 2,4/5GHz
Bluetooth 5.0
LAN
GbE LAN with PoE support
additional HAT is required for powering via PoE

IO 40-pinexpansionheader :

• 1 x UART
• 2 x SPI bus
• 2 x I2C bus
• 1 x PCM/I2S
• 1 x SPDIF
• 1 x PWM
• 1 x ADC
• 6 x GPIO
• 2 x 5V DC power in
• 2 x 3.3V power pin
Others
RTC battery connector for time backup
Power USB PD
Support USB Type C PD 2.0, 9V/2A, 12V/2A
Power Supply Qualcomm® Quick Charge™
Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A
Size 85mm x 54mm

Essentials You NeedROCK PI 4 Model A or Model B / B+ / OP1 PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard < Mouse Monitor with HDMI input Heat Sink  optional M.2 extension board ______________________________________________________
Additional information < Setup instructions
