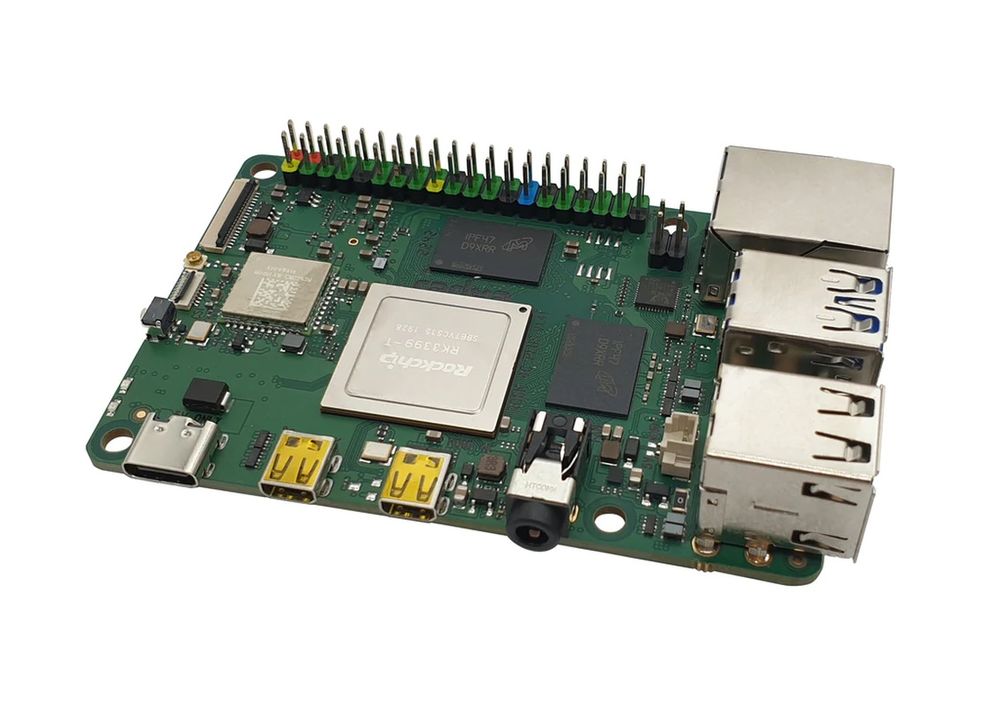

ALLNET RS114CPD4W2 Rock 4 C+ 4GB RK3399T (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0) MicroHDMI

Rock Pi 4 Model C+ 4GB (mit Dualband 2,4/5GHz WLAN/Bluetooth 5.0), 2x Micro HDMI

Rockchip RK3399TProcessor64bithexacoreprocessor
Dual Cortex-A72, frequency 1.5GHz (oc to 2GHz) with quad Cortex-A53, 1.4Ghz (os to 1.6GHz) with separate NPU NEON coprocessor
GPU
Mali T860MP4 gpu, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11
Memory LPDDR4
64bit dual channel LPDDR4@3200Mb/s, 4GB
Storage eMMCmodule
Optional industrial compatible high performance eMMC module, 8G/16G/32G/64G/128G available
Micro SD card
uSD slot supports up to 128G uSD card
M.2 SSD
not available in latest versions.
Display HDMI
Micro HDMI 2.0 up to 4k@60 (Type D), H.265/VP9 (HEVC) hardware decode
Micro HDMI 2.0 up to 2k@60 (Type D), H.264 hardware decode
Peripherie
Display MIPI DSI
MIPI DSI 4 lanes display via FPC connector
Two of HDMI/HDMI2/MIPI DSI can work at the same time, support mirror or extend mode.
Camera MIPI CSI
MIPI CSI 2 lanes via FPC connector, support up to 8MP camera
Audio
Audio 3.5mm jack with mic with improved mechanics
HD codec that supports up to 24-bit/96kHz audio
Output can drive 32Ohm head phones directly
USB 3.0 OTG x1
USB 3.0 HOST x1
USB 3.0 OTG port x1 (upper one)
hardware switch for host/device switch, upper one
USB 2.0 HOST x2
Ethernet GbE
Network
Wireless 802.11 ac wifi 2,4/5GHz
Bluetooth 5.0
LAN
GbE LAN with PoE support
additional HAT is required for powering from PoE

IO 40-pinexpansionheader :

• 1 x UART
• 2 x SPI bus
• 2 x I2C bus
• 1 x PCM/I2S
• 1 x SPDIF
• 1 x PWM
• 1 x ADC
• 6 x GPIO
• 2 x 5V DC power in
• 2 x 3.3V power pin
Others
Power switch
Dual-pin PWM fan strip (controller chip onboard)
Power supply USB-C recommended 5V/5A
Size 85mm x 54mm
NOTE: Mechanically fits many of the existing Raspberry Pi 4 accessories.
Size 85mm x 54mm
