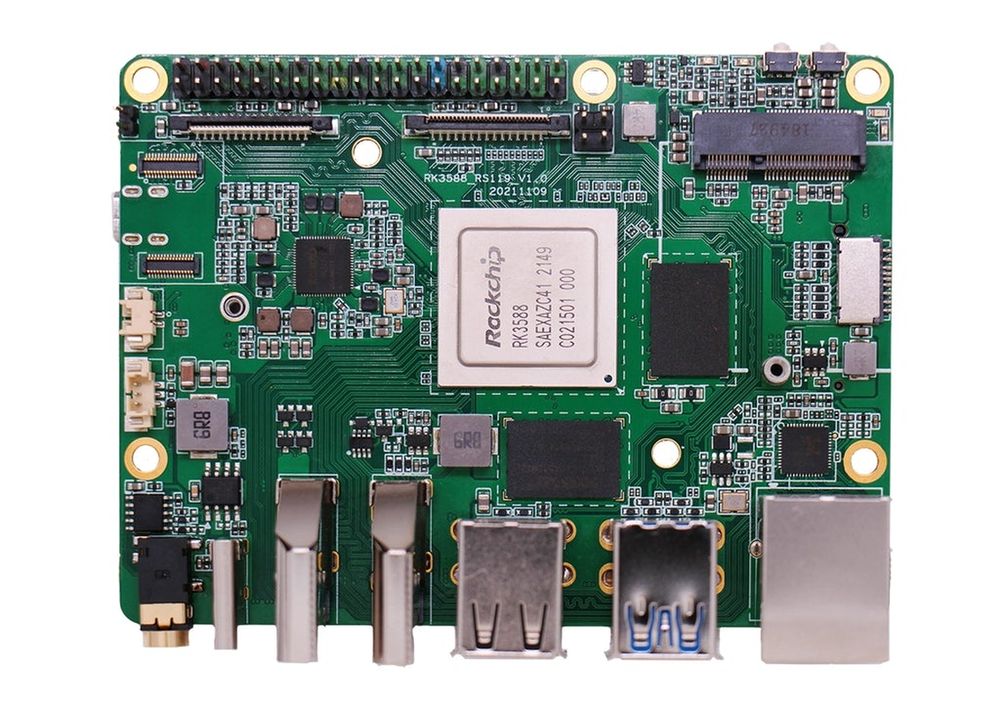

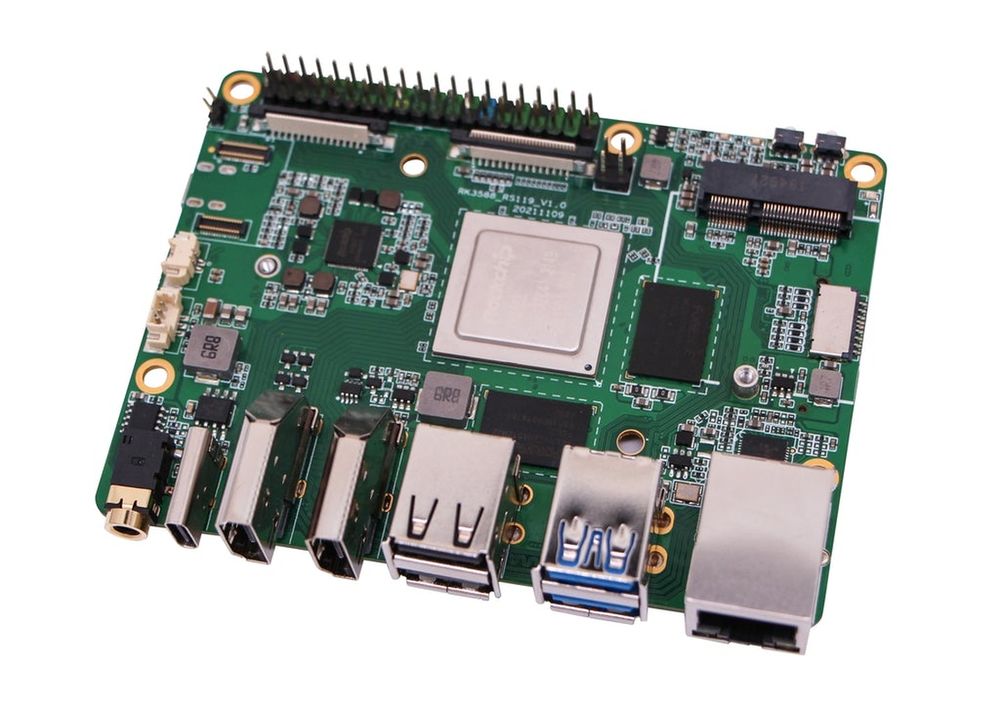

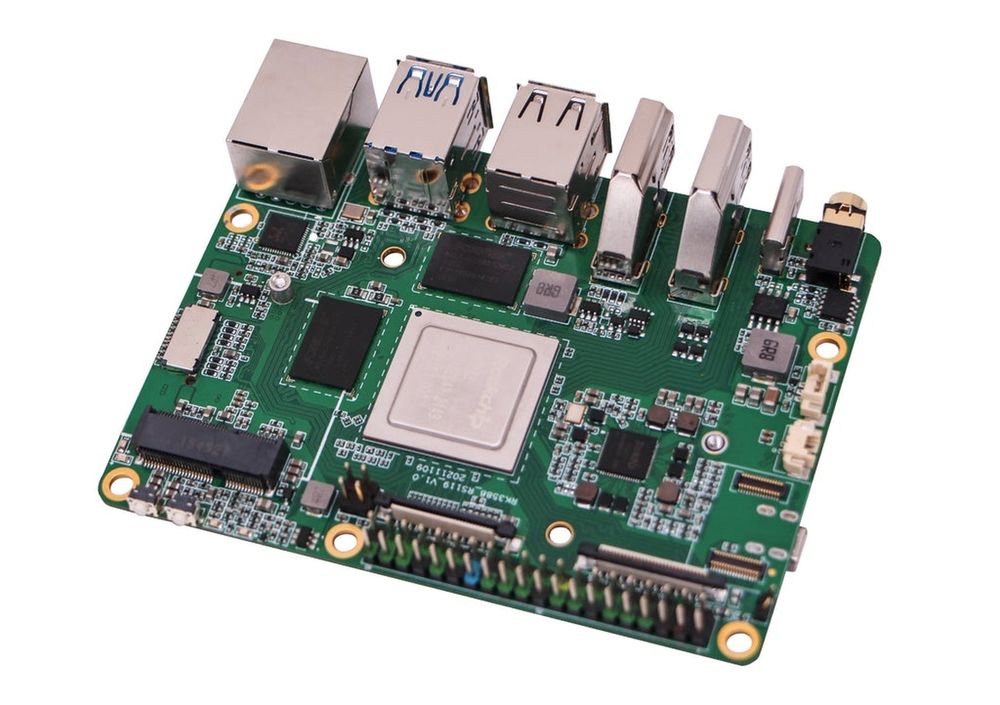

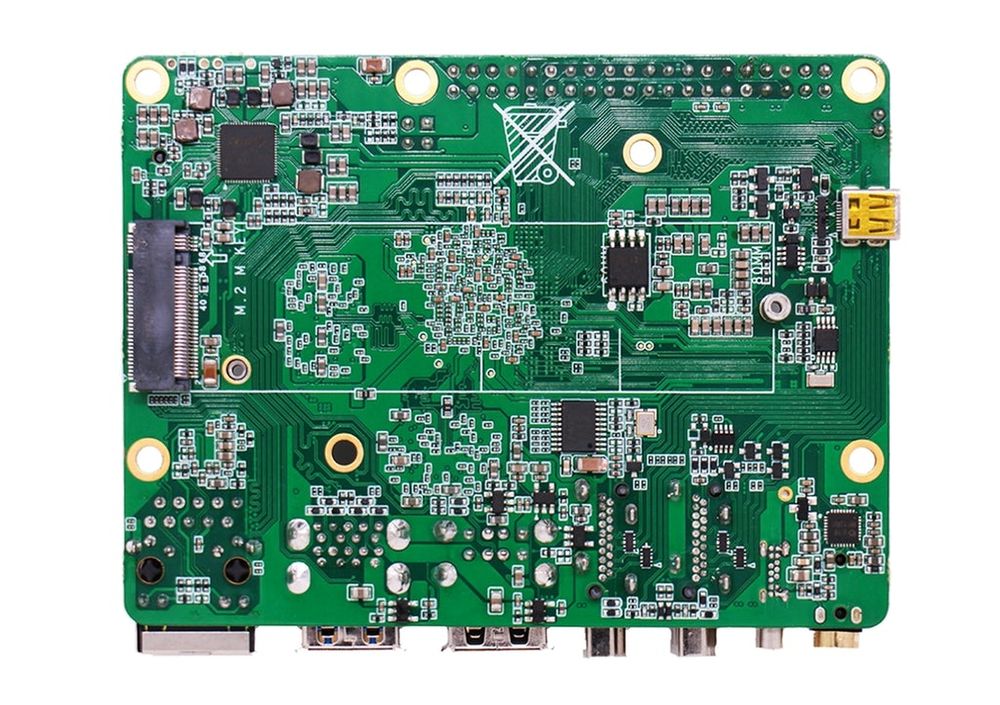

ALLNET RS119-D16P1 Radxa ROCK 5B RK3588 16GB LPDDR4 RS119-D16

Rock5 Model B product details*
RK358864bit octa core processor

Quad Core A76 2.4GHz + Quad Core A55 1.8GHz
GPU
Mali G610MP4 GPU (up to 5 channel 4k UI)
8K 10bit decoder, 8K encoder

NPU
6T NPU
Memory LPDDR4
LPDDR4x with 4, 8 or 16GB
SPI Flash
32MB SPI flash soldered
Wifi/BT
WiFi 6E and BT5.2 support
eMMCmodule (removable)

Industrial level high performance eMMC storage, 16G/32G/64G/128G available
Micro SD card
uSD slot supports up to 128G uSD card
M.2 Interfaces
M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes
M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported

Display HDMI
Triple display support (with HDR)
2x HDMI 2.1 up to 8k@60FPS
1x USB-C with DP up to 8K@30FPS
HDMI in with up to 4K@60FPS
1x MIPI DSI
Peripherals
MIPI DSI 2 lanes via FPC connector
HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.
Audio 3.5mm jack with mic
HD codec that supports up to 24-bit/96kHz audio.
Camera MIPI CSI
MIPI CSI 2 lanes via FPC connector, support up to 8MP camera
USB 3.0 HOST x3
1x USB-C
2x USB-A
Network
Wireless / Bluetooth
WiFi 6E and BT5.2

LAN
2.5GbE LAN with PoE support
additional HAT is required for powering via PoE

IO 40-pinexpansionheader :

• 1 x UART
• 2 x SPI bus
• 2 x I2C bus
• 1 x PCM/I2S
• 1 x SPDIF
• 1 x PWM
• 1 x ADC
• 6 x GPIO
• 2 x 5V DC power in
• 2 x 3.3V power pin
Others
RTC battery connector for time backup
Power USB PD (new generation QC/PD protocol IC)
Support USB Type C PD 2.0, 9V/2A, 12V/2A
Power Supply Qualcomm® Quick Charge
Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A
Size 100mm x 72mm (Pico ITX form factor)

Essentials You Need
ROCK5 Model B PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard Monitor with HDMI input
