Allnet RS119-D8P1

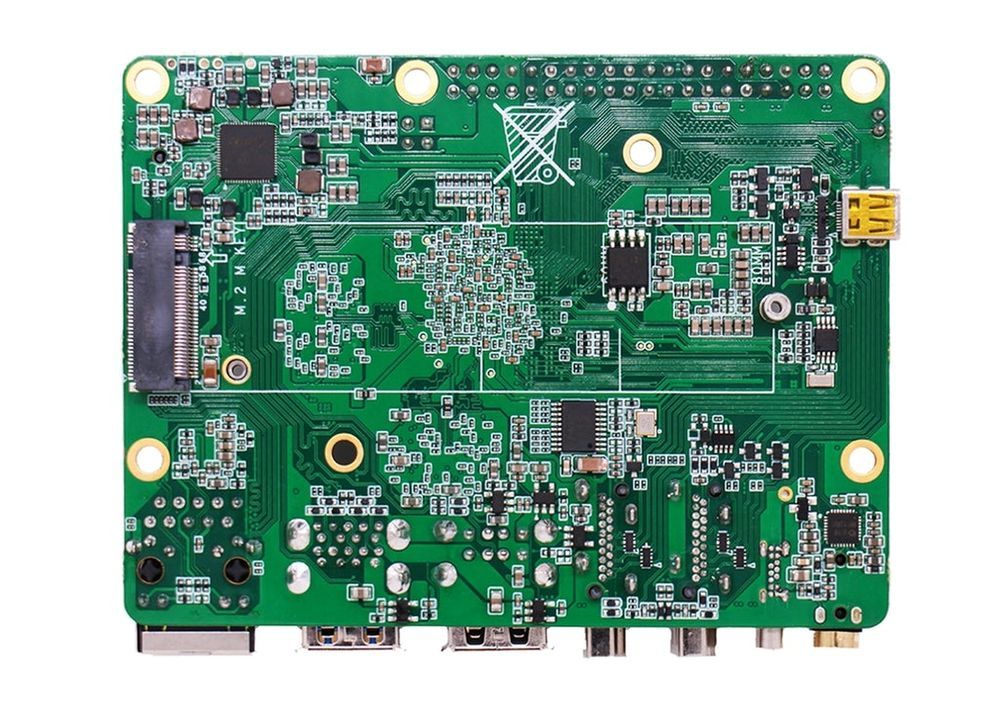

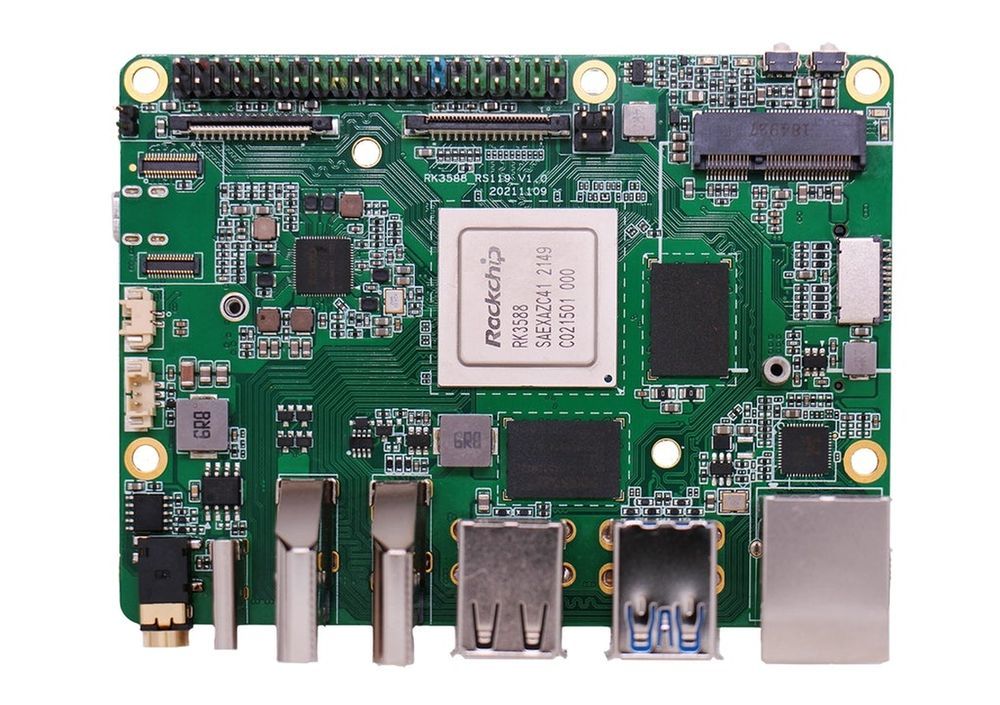

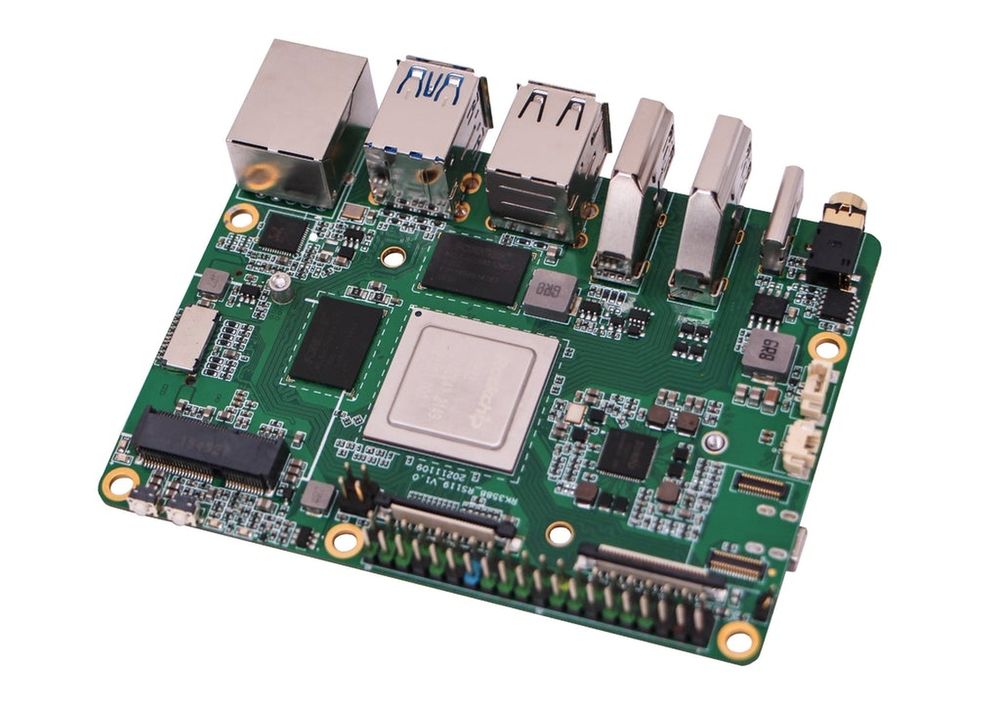

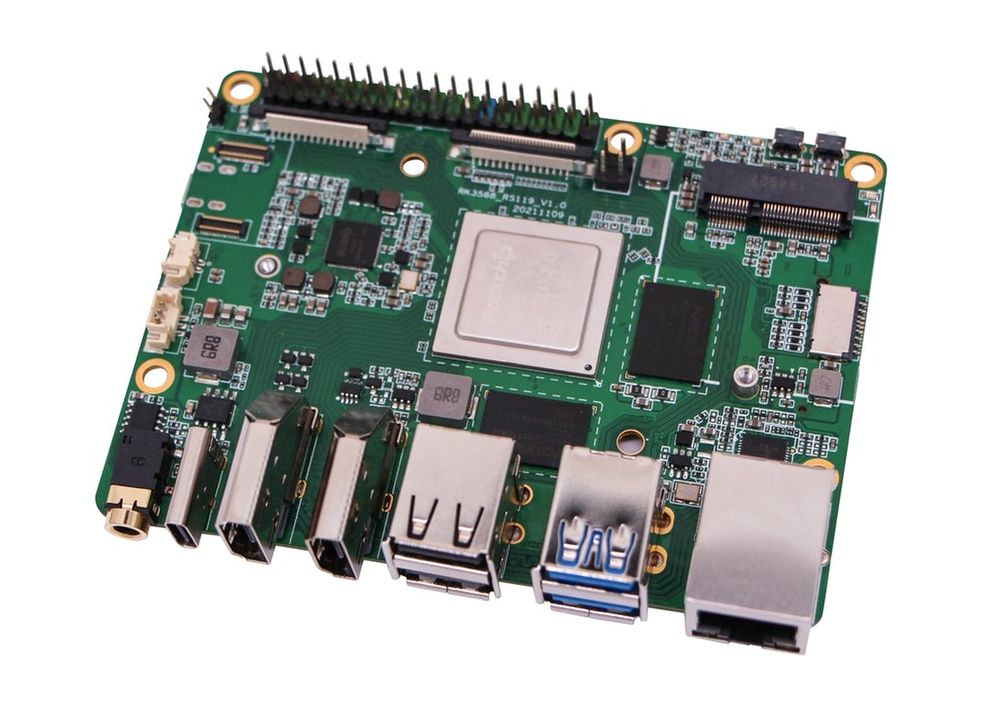

Radxa ROCK 5B RK3588 8GB LPDDR4 content_copy

 Rock5 Model B product details* RK3588 64bit octa core processor Quad Core A76 2.4GHz + Quad Core A55 1.8GHz GPU Mali G610MP4 GPU (up to 5 channel 4k UI) 8K 10bit decoder, 8K encoder NPU 6T NPU Memory LPDDR4 LPDDR4x with 4, 8 or 16GB SPI Flash 32MB SPI flash soldered Wifi/BT WiFi 6E and BT5.2 support eMMC module (removable) Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 Interfaces M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported Display HDMI Triple display support (with HDR) 2x HDMI 2.1 up to 8k@60FPS 1x USB-C with DP up to 8K@30FPS HDMI in with up to 4K@60FPS 1x MIPI DSI Peripherals MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 HOST x3 1x USB-C 2x USB-A Network Wireless / Bluetooth WiFi 6E and BT5.2 LAN 2.5GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pin expansion header : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD (new generation QC/PD protocol IC) Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 100mm x 72mm (Pico ITX form factor) Essentials You Need ROCK5 Model B PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard &amp Mouse Monitor with HDMI input
