Allnet RS500-D1E0G0J0R38S16
Radxa Cubie 5AE - 4GB (no EMMC) Radxa Cubie 5AE - 1GB (no EMMC) content_copy

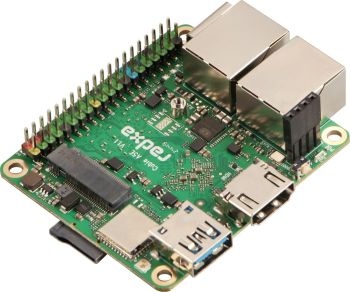

RADXA Cubie A5E Allwinner A527 / T527 (industrial) powered tiny and compact SBC by RADXA Processor Allwinner A527 / T527 SoC- Quad-Core ARM® Cortex®-A55 @1.8GHz &amp Quad-Core ARM Cortex-A55 @1.4GHz- RISC-V CPU up to 200MHz- NPU computing power up to 2TOPS (T527 SoC, theoretical peak performance) ARM Mali™ G57 MC1 GPU- OpenGL® ES 3.2/2.0/1.1- Vulkan® 1.1/1.2/1.3- OpenGL™ 2.2 RAM LPDDR4 RAM 1GB /2GB /4GB Onboard eMMC (depending on product variant) 8GB /16GB /32GB Onboard SPI Flash for Bootloader H.265MP/VP9 multivideo decoder up to 4K@60fps H.264BL/MP/HP multivideo decoder up to 4K60fps H.264BP/MP/HP multivideo encoder up to 4K@25fps MJPEG encoder up to 4K@15fps, JPEG encoder up to 8K x 8K resolution Supports AES/DES/3DES/SM4 encryption and decryption algorithms Interfaces Display 1x HDMI® port up to 4Kp60 1x MIPI DSI Interface (four lane MIPI DSI) Wireless IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.4 with BLE (external Antenna Conn) Storage 1x Micro SD card slot 1x M.2 M Key Connector with PCIe 2.1 1-lane for M2 2230 NVMe SSD USB 1x USB 3.0 5Gbps Type A HOST Port (USB3 HOST and PCIe 2.1 share some HW resources, requires software driven multiplexing) 1x USB 2.0 Type-C® OTG/HOST port for Data and Power Ethernet 2x Gbit LAN Port with (1x PoE support via optional PoE hat) GPIO 40-pin expansion header supporting: UART, I2C, SPI, GPIO, PWM 2 x 5V DC power in/out 2 x 3.3V DC power out Other 1x power button Software ·Debian Linux® support ·Android™ 13 support (Android 13 support requires the official BSP or vendor-provided SDK. Actual feature set may depend on further validation and licensing) · Hardware access/control library for Linux Power USB Type-C with min 5V/3A ( alternative via PoE HAT) Size 56mm x 65mm Operation temperature: 0°C to 60°C Certifications: FCC, CE, RoHS Availability: until at least September 2032
