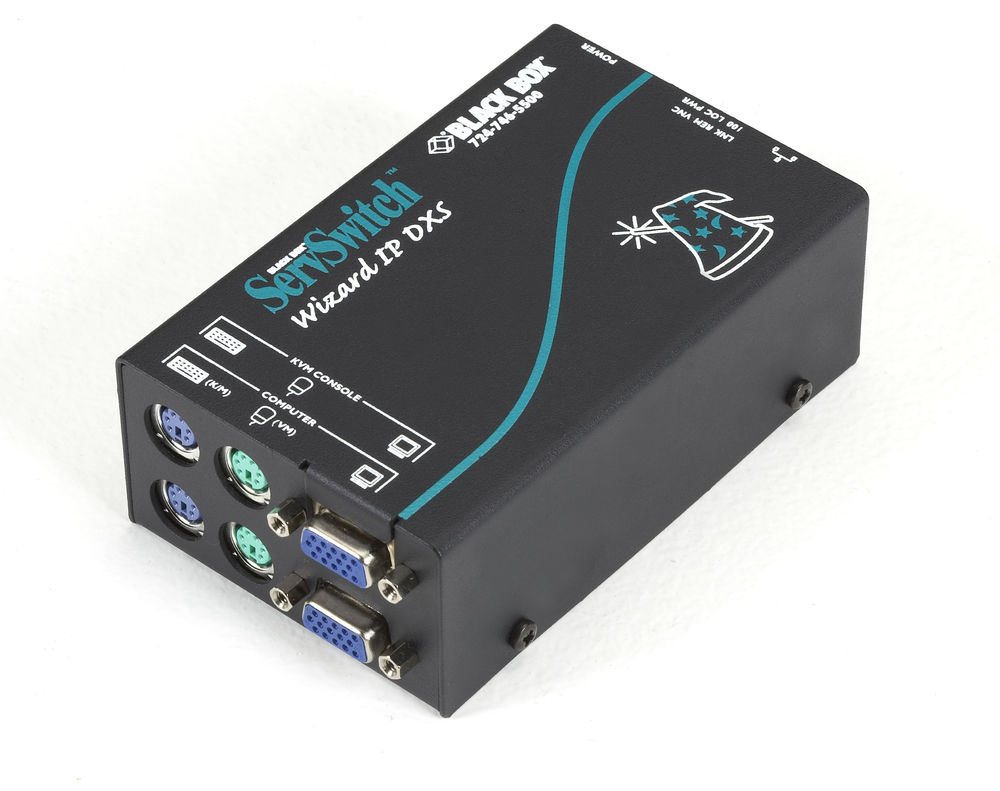

BlackBox ACR201A ServSwitch Wizard DXS, Dual Access

ServSwitch DXS allows efficient management of a single server or a complete cluster of servers. The direct connect to the servers guarantees best video performance even on higher resolutions and smooth mouse handling. Access is granted via Browser or VNC. For larger installations the included Wizard IP Management software can be used to efficiently manage multiple servers and sites at a central point.

The Wizard IP DXS units are fully interface powered and allow full KVM access down to the BIOS level of a server with very short boot up times. Choose between a standard model with single access or a dual access version allowing the connection to a second user station. DXS gives a direct access to as many users as DXS modules are used within the setup - simultaneously. Virtual Media transmission capability adds even more value.

The DXS design features a small form factor that fits into every dense office application. Up to 16 Wizard IP DXS modules can easily be mounted into a 19-chassis (ACU5000A). Special mounting brackets allow even vertical mounting in cabinets of 800mm width.

ServSwitch DXS allows efficient management of a single server or a complete cluster of servers. The direct connect to the servers guarantees best video performance even on higher resolutions and smooth mouse handling. Access is granted via Browser or VNC. For larger installations the new included Wizard IP Management software can be used to efficiently manage multiple servers and sites at a central point.

Full direct Access
The Wizard IP DXS units are fully interface powered and allow full KVM access down to the BIOS level of a server with very short boot up times. In case the DXS boot up time of app. 5 seconds is too long, units can optionally be powered by an external power supply.

Vitual Media
Virtual Media transmission capability adds even more value. Patches can be rolled out without the need to access lights-out server room environments. The reduced single point of failure results in a high reliability server management system. DXS gives a direct access to as many users as DXS modules are used within the setup - simultaneously! Access bottle necks like with integrated KVM over IP switches with e.g. 4 simultaneous user sessions to 16 or 32 connected servers do not exist with DXS!

Centralized in a 19 rack
The Wizard IP DXS modules can easily be mounted into a 19-chassis (ACU5000A). It holds up to 16 Single Access or 8 Dual Access units. Special mounting brackets allow even vertical mounting in cabinets of 800mm width.


ServSwitch Wizard IP Management Software for central management and authentication
The ServSwitch Wizard IP Management Software ties the whole Wizard IP product family (see solution box above) together allowing central management functionality and security based access to clusters of servers. Administration and access is done via Web browser. Multiple site or multiple servers can now be managed more efficiently and ergonomically than before but with the known high performance of the Wizard IP product family.
Features:

• Central Authentication to assure System Access Security
• Integrates ServSwitch Wizard IP , Wizard IP Plus, CX IP and Wizard IP DXS
• Central Log of system events and activity
• Runs on Linux and Windows O/S
Version 1.xx comes free with the Wizard IP DXS


Technische Daten:

Connectors —
Both:
(1) RJ45 Ethernet,
(1) 2.5 mm DC-power;
ACR101A:
(1) HD15 Bu (Video),
(2) PS/2 keyboard/video/mouse;
ACR201A:
(2) HD15 Bu (Video),
(4) PS/2 Tastatur/Monitor/Maus;
Configuration— via the USB-port of the server using a set-up program or via a web-browser
Indicators — LEDs: 10/100, Link, Data, Power,
Keyboard/Mouse VNC
Power — through the interface (5 VDC, l A) or optional power supply (PS649-R2)
size —
ACR101A: 2.5H x 7.5W x 17.0D cm;
ACR201A: 5.0H x7.5W x 17.0D cm
weight — 0.5 kg


Lieferumfang:

(1) Set KVM-cable,
(2) Adapters PS/2 to USB,
(1) Enterprise Management Software Version 1.xx,
(4) rubber feet,
(1) Manual
