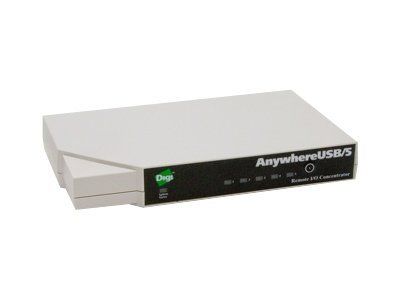

Digi AW-USB-5-W AnywhereUSB/5 Port USB over IP Hub Gen. 2

AnywhereUSB products are network-attached USB hubs that connect USB peripheral devices to a PC over a Local Area Network. The AnywhereUSB TS model also adds four RS-232 serial ports, enabling the mixing of USB and serial ports over the same network connection. Relocating the host PC to a remote location translates to smaller workstations, enabling deployment without a local PC in kiosks, ATMs, restaurant kitchens, manufacturing lines or any hostile or non-secure area where having a local PC is not practical.

AnywhereUSB is a network-attached USB hub. Combining Digi's patented RealPort® USB and RealPort® COM port redirector technologies, AnywhereUSB connects USB and serial devices anywhere on a wired or wireless LAN, while eliminating the need for locally-attached host PCs. Relocating the host PC to a remote location translates to smaller workstations, enabling deployment without a local PC in kiosks, ATMs, restaurant kitchens, manufacturing lines or any hostile or non-secure area where having a local PC is not practical.

AnywhereUSB/2, AnywhereUSB/5 and AnywhereUSB TS provide two, five and four USB ports respectively, which deliver the same Plug and Play user experience as onboard USB ports. AnywhereUSB TS also adds four RS-232 serial ports with the same transparency. Software drivers are loaded onto a host PC or server, enabling remote devices to communicate with the host, without changing existing application software. Peripheral devices can be centrally managed and monitored from a remote server or PC via an IP address.

AnywhereUSB is compatible with bulk or interrupt type USB devices such as bar-code scanners, printers, fingerprint scanners, mice, pole displays, card readers, flash drives, security keys, and more. It is an excellent solution for networked USB or serial devices in VMware and Microsoft virtualized environments. Watchport/V3 USB camera, Watchport® sensors and Edgeport® USB-to-serial converters are also fully compatible with AnywhereUSB.

Allgemein
Breite	18.3 cm
Gerätetyp	Terminalserver
Gewicht	284 g
Höhe	2.6 cm
Tiefe	11.1 cm
Erweiterung / Konnektivität
Schnittstellen	1 x 100Base-TX - RJ-45 ¦ 5 x USB - Type A
Verschiedenes
Kennzeichnung	FCC Klasse B bescheinigt, CSA, EN 60950, EN55022, IEC950, UL 1950, EN55024
Software / Systemanforderungen
Erforderliches Betriebssystem	Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Stromversorgung
Erforderliche Netzspannung	Wechselstrom 120/230 V ( 50/60 Hz )
Stromversorgungsgerät	Externer Netzadapter
Umgebungsbedingungen
Zulässige Luftfeuchtigkeit im Betrieb	0 - 95%
Max. Betriebstemperatur	60 °C
Min Betriebstemperatur	0 °C
Netzwerk
Anschlusstechnik	Verkabelt
Formfaktor	Extern
Netzwerk/Transportprotokoll	TCP/IP
Statusanzeiger	Port Status
Data Link Protocol	Ethernet, USB, Fast Ethernet

---
