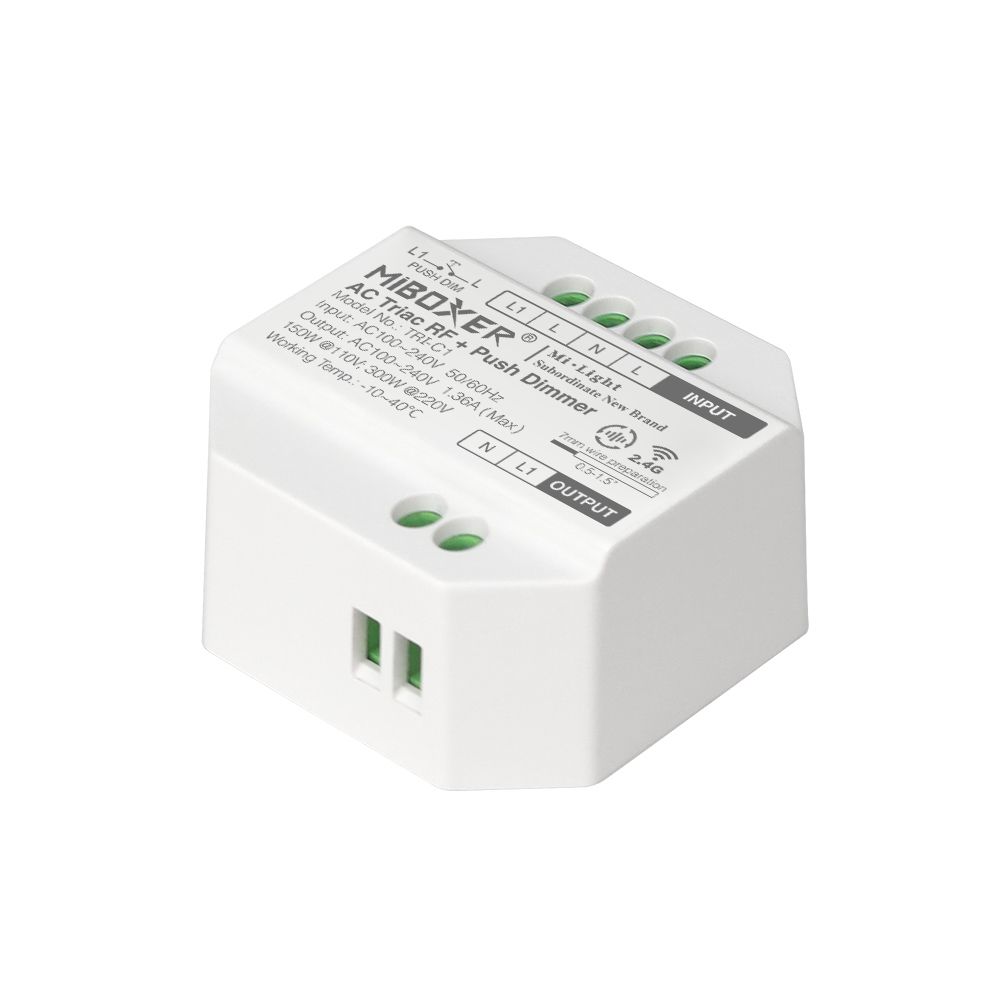

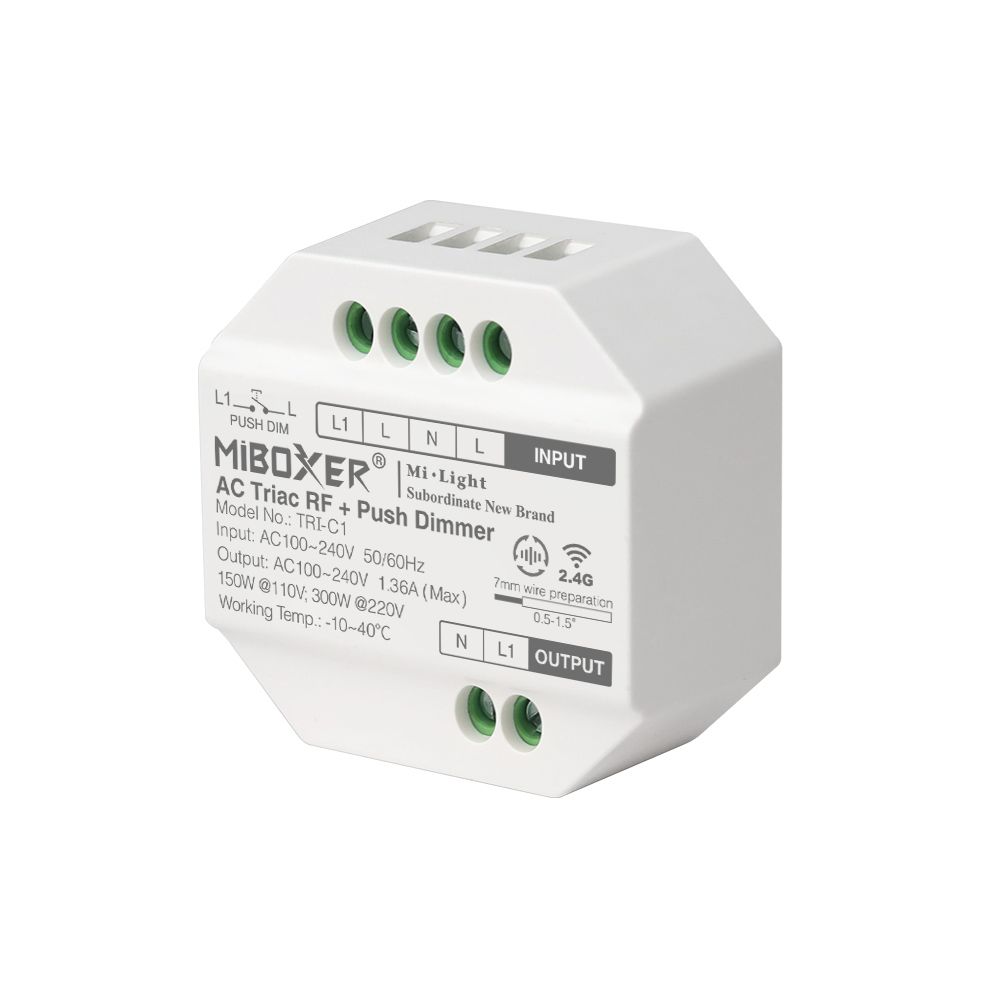

Synergy 21 LED Dimmer Controller 2.4G WLAN Dimming RF+Push *Milight/Miboxer* content_copy

PUSH1-3 2.4GHz Wireless Dimming (3-Zone) AC100-240V powered No wiring required, easy to implement PUSH switch to wirelessly control brightness and switch of lights. Compatible with MiBoxer / Mi-Light 2.4G series lamps. Using 2.4G RF wireless transmission technology, the control distance is 30 meters. Supports 3 zones of independent control, unlimited number of lamps. Supports 4096 levels of smooth dimming, the lowest brightness is 0.1%. Dimming range: 0.1%-100% Features AC100-240V powered No wiring required, easy to implement PUSH switch to wirelessly control brightness and switch of lights. Compatible with MiBoxer / Mi-Light 2.4G series lamps. Using 2.4G RF wireless transmission technology, the control distance is 30 meters. Supports 3 zones of independent control, unlimited number of lamps. Supports 4096 levels of smooth dimming, the lowest brightness is 0.1%. Dimming range: 0.1%-100% Parameters Product Name: 2.4GHz Wireless Dimming (3-Zone) Model No.: PUSH1-3 Input Voltage: 100-240V~ 50/60Hz Transmitting Power: 6dBm RF: 2.4GHz Control Distance: 30m IP Rating: IP20 Working Temperature: -10~40°C Standby Power Consumption: 0.15W Dimming Grayscale: 4096 Levels Dimming Range: 0.1%-100% EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.1.1 Safety Standard (LVD): EN 61347-1:2015+A1: 2018 EN 61347-2-11: 2001+A1:2019 Radio Equipment (RED): ETSI EN 300 440 V2.2.1 Certification: CE, EMC, RED

Technische Daten
Schutzklasse	IP20
Volt	230 Volt
Betriebstemperatur	-10 bis +40 Grad
Watt	300 W
Lichtfarbe Name	Single Colour
Dimmbar	Ja, TRIAC+Push

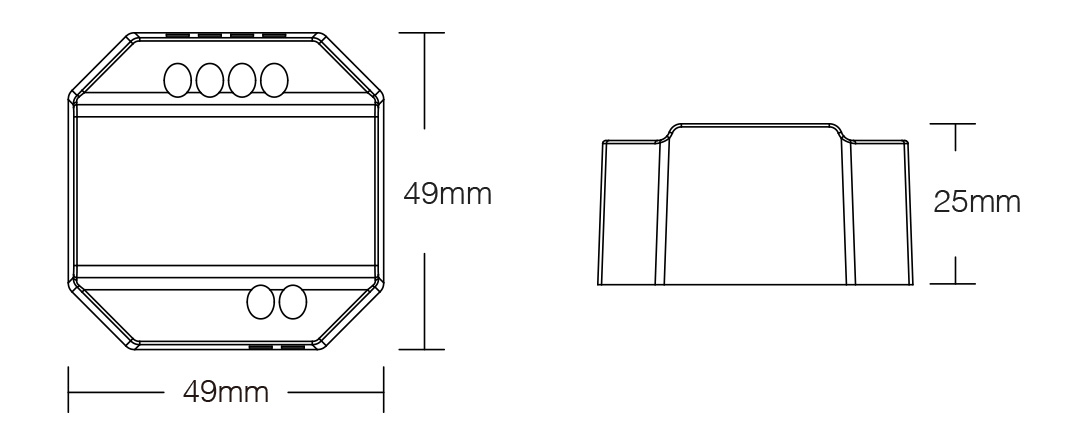

Grösse	49*49*25 mm

---
