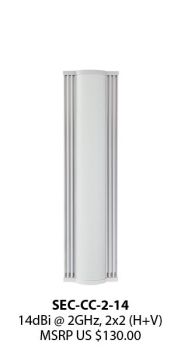

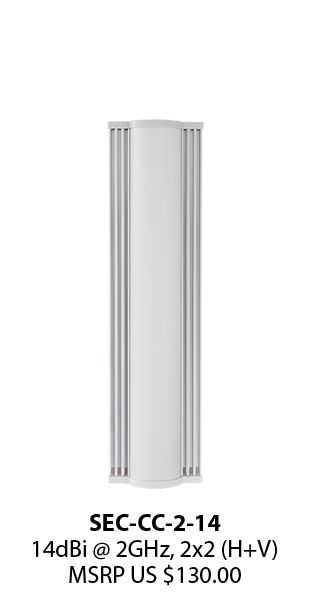

RF Elements Sector CARRIER CLASS 2GHz 14dBi MiMo 2x2 (H+V) content_copy

RF Elements Sector CARRIER CLASS 2GHz 14dBi MiMo 2x2 (H+V) CARRIER CLASS Sectors are addressing customer requirements for RF performance, co-location noise resistance, ease of installation and cost effi ciency. Antennas feature innovative BackShield?, patent pending sys- tem of frequency selective refl ectors incorporated into antenna structure to attenuate side lobes and back side near fi eld radiation. Sector Antenna 2.4 GHz 14 dBi is a dual polarization version of CARRIER CLASS Sector with one horizontal and one vertical polarization antenna. Antenna Connection 2x RP-SMA on integrated semi-fl ex pigtails Antenna Type 2.4 GHz 14 dBi Enviromental IP55 Temperature -26°C to +60°C (-15°F to +140°F) Wind Survival 160 km/hour Weight 3.9 kg Single Piece Retail Box: 97 × 22 × 10 cm Frequency Range 2400 - 2485 MHz Gain Max 13.8 dBi Gain Typical 13.5 dBi Polarization Dual Linear H + V Azimuth Beam Width -3 dB H 75° / V 69° Elevation Beam Width -3 dB H 14.5° / V 14° Azimuth Beam Width -6 dB H 108° / V 100° Elevation Beam Width -6 dB H 20° / V 19° Front-to-Back Ratio (Min) 24 dB Cross Pol Isolation H 15 dB / V 13.5 dB Impedance 50 Ohm VSWR Max 1.8 VSWR Typical 1.4 Isolation Between Ports 18 dB RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield? Cambium Networks? ePMP? 1000 Connectorized Radio* MikroTik? BaseBox, NetBox Ubiquiti Networks? UBNT Rocket? M2, UBNT Rocket? M2 Titanium
