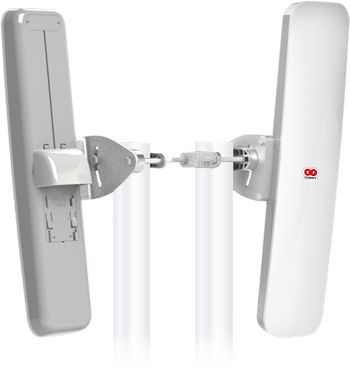

RF Elements Sector MiMo 5-90 90° beam angle, 5350-5850 MHz, 18dBi MiMo H+V content_copy

RF Elements Sector MiMo 5-90 90° beam angle, 5350-5850 MHz, 18dBi MiMo H+V www.rfelements.com 1/2 Sector Antenna Rev JUN-2014 RF elements®, StationBox® and RockShield? are trademarks of RF elements s.r.o., Humenne, Slovakia. MikroTik? and RouterBoard? are trademarks of MikroTik, Aizkraukles iela 23, Riga, LV-1006 Latvia. Cambium Networks? and ePMP? are trademarks of Cambium Networks, Ltd., Rolling Meadows, Ilinois. Ubiquiti Networks? and Rocket? are trademarks of Ubiquiti Networks, Inc., San Jose, California. All rights of respective trademark owners reserved. © RF elements 2014 RF elements MiMo Sector Antennas demonstrate new standard in com - patibility, price/performance, ease of use and environmental resistance. Antennas are equipped with quick mounting system compatible with RF elements StationBox® S, compact radio powered by MikroTik? Router - Board? technology. Advanced, cross platform MiMo Sector solution for professional requirements. Materials UV stabilized and weather resistant ABS plastic Die Cast Aluminium Flame Rating UL 94 HB Mounting Diameter 500-700 mm Operating Temp. -30 to +60 °C Wind Survival 160 Km/h Weight 1.4 Kg / 3.1 lbs - single piece incl. package 14.5 Kg / 32.0 lbs - carton (10 pcs) Single Unit Retail Box: 7 × 13 × 64 cm 10 Units Carton Box: 35 × 27 × 66 cm COMPATIBLE WIRELESS PLATFORMS RF elements ® StationBox ® Mikro, StationBox ® S, StationBox ® S CARRIER CLASS, RockShield? Ubiquiti Networks? UBNT Rocket? M2, UBNT Rocket? M5, UBNT Rocket? M2 Titanium, UBNT Rocket? M5 Titanium Cambium Networks? ePMP? 1000 Connectorized Radio* MikroTik? BaseBox Frequency Range 5350 - 5850 MHz Gain Max 16.6 - 18dBi Polarization Dual linear, H and V Cross Pol Isolation 22dB min. VSWR Typical 1.2 H pol BeamWidth 102°(-6dB) V pol BeamWidth 93°(-6dB) Elevation BeamWidth H 9° Elevation BeamWidth V 8.6° Wind Survival max. 200km/h
