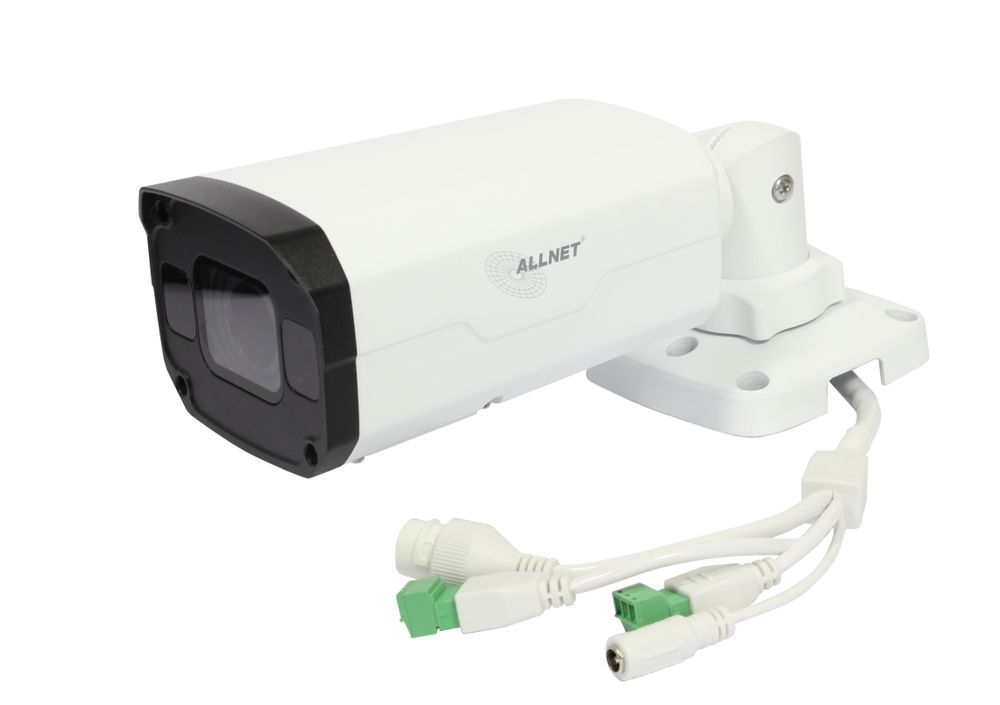

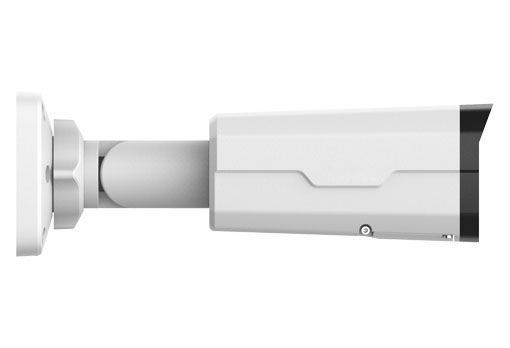

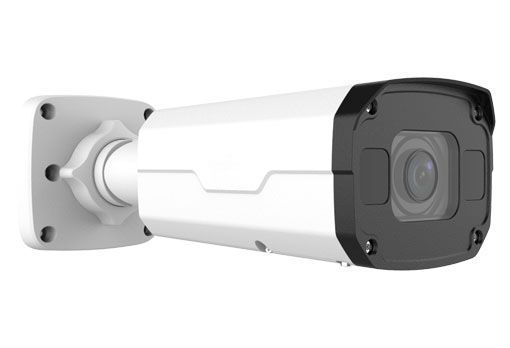

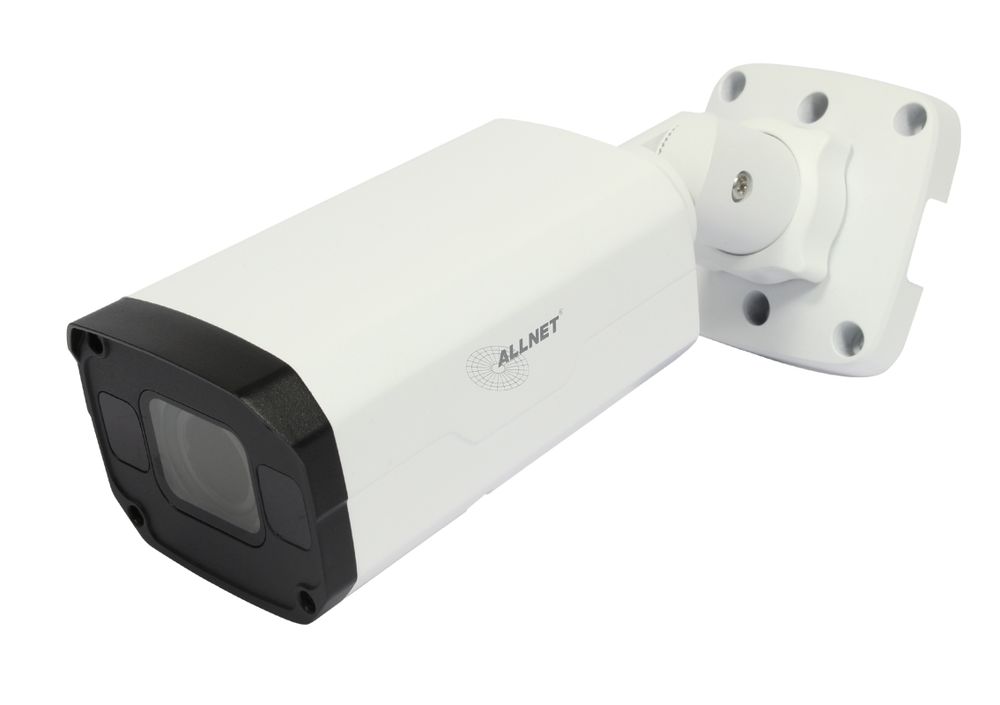

ALLNET IP Kamera Bullet / Outdoor / 5MP / IR / Low-Light / Motorisiertes Vario-Objektiv / 93° / ALL-CAM2496v3-LEFN

Highlights: Optik 1/6,9 cm ( 2,7 Zoll ), mit Lichtquelle SmartIR, bis zu 50m (164 ft) IR Entfernung Bis zu 120 dB optischer WDR (Wide Dynamic Range) Komprimierung Ultra 265, H.265, H.264, MJPEG  Dreifach-Streams  2592*1944@20fps im Hauptstrom ROI (Region von Interesse) Netzwerk ONVIF-Konformität Aufbau DC12V oder PoE-Stromversorgung Großer Spannungsbereich von ±25% in DC Micro SD, bis zu 256 GB Alarm 1 Eingang und 1 Ausgang, Audio 1 Eingang und 1 Ausgang IP67 Schutz gegen Eindringen IK10 vandalismusgeschützt Links zu direkten Streams siehe =   Technical Details:   ALL-CAM2496v2-LEFN Camera Sensor 1/2.7",5.0 megapixel, progressive scan, CMOS Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 60.8 24.3 12.2 6.1 13.5 303.8 121.5 60.8 30.4 Angle of View (H) 106.25°~ 30.42° Angle of View (V) 56.36°~ 17.22° Angle of View (O) 110.34°~34.18° Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.002Lux (F1.2, AGC ON)
0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >56 dB IR Range Up to 50m (164ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps 4MP (2560*1440), Max 30fps 3MP (2304*1296), Max 30fps 1080P (1920*1080), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps
Third Stream: D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation
EZView
EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kΩ amplitude 2V [p-p] Output: impedance 600Ω amplitude 2V [p-p] Alarm I/O 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0 W Dimensions (L × W × H) 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) Net Weight 0.92kg (2.0lb) Material Metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button N/A
