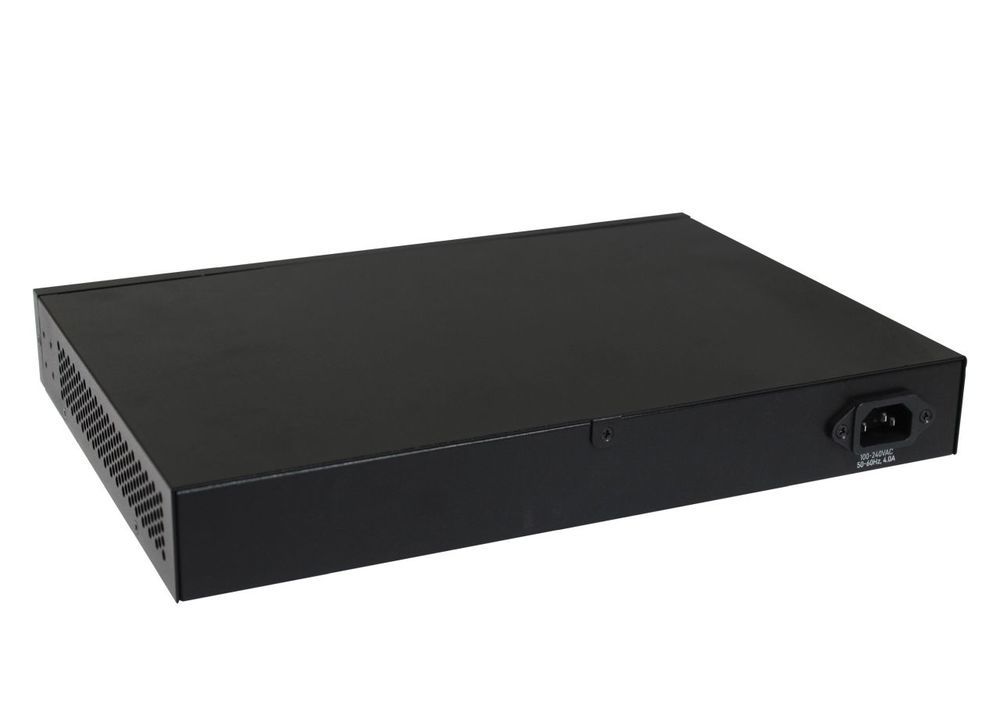

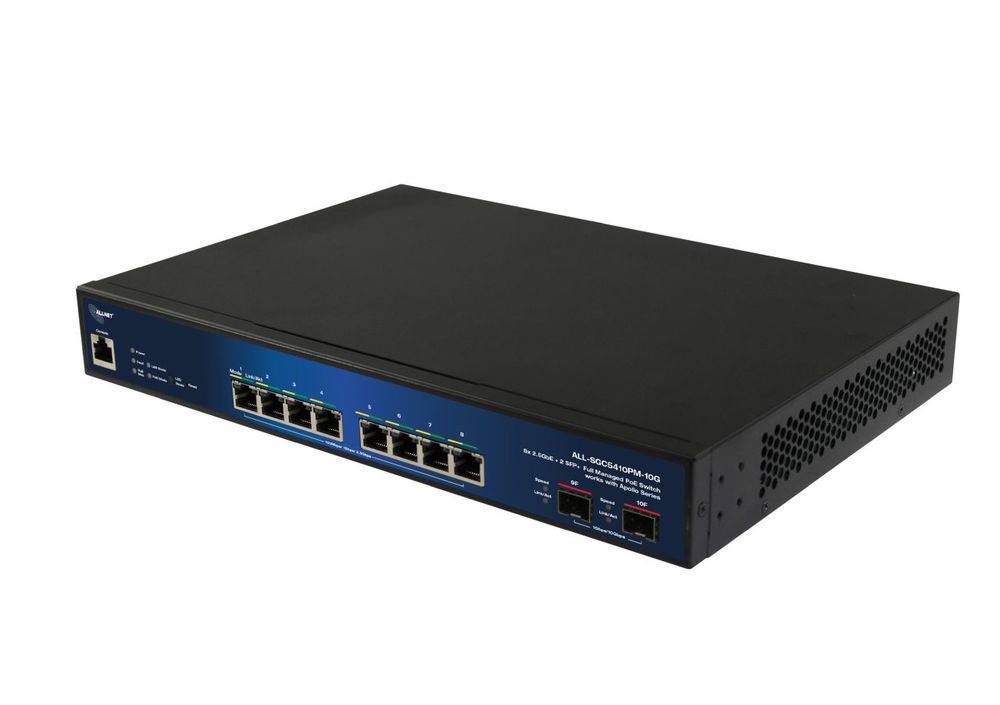

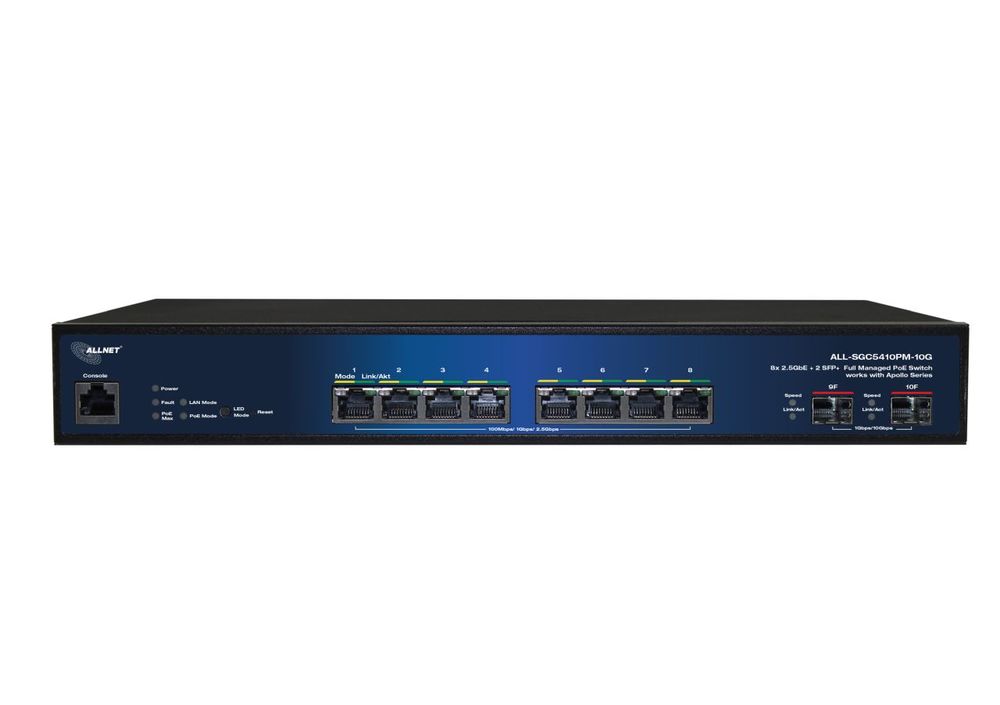

ALLNET Apollo full managed Layer2+ 10Port ? 8x 2.5GB ? PoE Budget 240W ? 8x PoE at ? 2x SFP+ ? Apollo ? ALL-SGC5410PM-10G

Highlights: 8x 2.5GbE PoE Ports 2x SFP+ 10G Ports for Uplink Support PoE IEEE802.3af / at with max. 30W per Port PoE Budget 240W Supports Jumbo Frames Support IGMP snooping v1/v2/v3 Support Link aggregation Support Loop protection Support Spaning Tree Protocoll (STP) and Rapid Spanning Tree (RSTP) Funktioniert als eigenständiger Switch oder mit Apollo Controller (siehe ALL-AC100) Es gibt immer mehr Anwendungen, die einen schnelleren Ethernet-Switch benötigen. ALLNET Apollos MultiG Switches unterstützen schnellere Wi-Fi 6/6E/7 APs, beschleunigen große Datei-Uploads und -Downloads, machen Videokonferenzen flüssiger und verhindern Jitter.2.5G / 10G Devices Ecosystem
Application Multi-GE
Feature Die Uplink-Bandbreite von WLAN-APs wurde von 2,5 Gbit/s in 802.11ac auf 5 Gbit/s oder 10 Gbit/s erhöht. Herkömmliche Gigabit-Zugänge können die Uplink-Bandbreitenanforderungen von APs nicht erfüllen. Die Multi-GE-Switches von Emplus unterstützen 100M*/1/2,5Gbps und sogar 5G/10Gbps (SMX-Serie) Auto-Sensing und erfüllen damit die Bandbreitenanforderungen von Hochgeschwindigkeits-Wireless-APs in der Wi-Fi 6-Ära. Als Antwort auf den Wi-Fi-Standard der nächsten Generation (Wi-Fi 7) wird die Multi-GE-Switch-Familie von Emplus mit Wi-Fi 7-Funktionen in Kürze erhältlich sein.
Multi-GE-Switch-Ports mit Auto-Negotiation für Geschwindigkeiten von 100Mbps, 1Gbps, 2,5Gbps und 5Gbps über bestehende Cat5e-Kabel und bis zu 10-Gbps über neuere Cat6a-Kabel (siehe Tabelle unten).Cable 1 G 2.5G 5 G 10G Cat5e • • • N/A Cat6 • • • •
(55m) Cat6a • • • • *100Mbps unterstützt keinen Halbduplexmodus Spanning Tree Protokoll (STP) Unterstützt Standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) für schnellere Konvergenz.Loop protection Wenn der Switch eine Schleife erkennt, sperrt er den Quellport für die Weiterleitung von Datenpaketen, die vom Switch stammen, um Broadcast Storms zu vermeiden.Jumbo-Frame-Unterstützung Unterstützt bis zu 10K Bytes Frame-Größe zur Verbesserung der Leistung bei großen Datenübertragungen.IGMP-Snooping v1/v2/v3 Verbessert die Netzwerkleistung durch Multicast-Filterung, anstatt den Datenverkehr auf allen Ports zu überfluten.Link-Aggregation Fasst mehrere Ports bis zu einem Maximum von acht (8) Ports pro Trunk automatisch mit dem Link Aggregation Control Protocol (LACP) zusammen.Software Features - Apollo System Information System Name System Location System Contact System System Features IPv4 Settings
-IP address / Subnet mask
-DHCPv4 IPv6 Settings
-Global address
-Link-local address
-DHCPv6 Domain Name System (DNS)
-IPv4 (Support 4 Servers) Port Port Configuration
-Speed configuration
-Flow control (802.3x, back pressure)
-Port description (support 128 bytes)
-Port extend mode IEEE 802.3az Energy Efficient Ethernet (EEE) L2 MAC Address Table
-MAC address table (16K)
-Age Time
-Static MAC address Jumbo Frame
-Per-Port/Per-system (9216 bytes) Spanning Tree
-802.1w rapid spanning tree
-802.1s multiple spanning tree
-MSTP instance (16 instances)
-Per device BPDU forward
-Per port BPDU forward
-Per port BPDU Filter
-Per port BPDU Guard
-Per port Root Guard
-Edge port mode
-Point to Point mode
-Per port admin state L2 Loopback detection
-STP independent + port base shutdown only Multicast Filtering
-Unknown Multicast Drop (unregistered multicast filtering)
-Unknown Action-Drop/Flood/Router Port Multicast Group
-Support Max. multicast group (256 groups) IGMP Multicast Forwarding
-MAC Group Address FDB IGMP Snooping
-Support v1, v2, v3 awareness
-IGMP snooping fast leave (per-vlan)
-IGMP querier
-Dynamic router port
-Static/Forbidden router MLD Multicast Forwarding
-MAC Group Address FDB
-IP Group Address FDB MLD Snooping
-Support v1
-MLD snooping fast leave (per-vlan)
-MLD querier
-Dynamic router port
-Static/forbidden router 802.3ad Link Aggregation
-Static Trunk
Max. 8 ports/group
Max. 8 groups per device
-Dynamic Trunk (LACP)
Max. 8 ports/group
Max. 8 groups per device
-Load Balance Algorithm (source/destination MAC, VLAN, EtherType, source/destination IP address, TCP/UDP ports)
-LA description 802.1ab Link Layer Discovery Protocol (LLDP) EOAM
-SFP information, SFP+ DDM
-Cable diagnostic
-Port statistics DHCP IPv4 DHCP Relay
-DHCP Relay
-Max. IPv4 DHCP servers
-Option82 Status
-Option82 Strategy (Keep/Replace/Drop) IPv4 DHCP Snooping
-DHCP Snooping
-Binding list
-Statistics VLAN 802.1Q Support VLAN Group
-VID from 1-4094 (Max. 256 VLAN groups) GVRP
-Dynamic VLAN groups
-Per port / device enable / disable
-VLAN advertisement Voice VLAN L3 Interface Multiple IP Interface
-Max. 4 IP interfaces
-Max. 4 Ip v4 address
-20 IPv6 address (shared for both link local and global address) ARP Table
-Max. 192 ARP entries Static ARP
-Static 192 ARP entries (Share with ARP Table) ARP Age Time IPv6 Neighbor Discovery Table
-Max. 42 ND entries Static IPv6 Neighbor Discovery
-Static 42 ND entries (Share with IPv6 Neighbor Discovery Table) L3 Routing IPv4 Static Route and Default Route
-Max. 63 entries IPv4 Default Route
-Max. 1 entry IPv4 Route Table IPv6 Static Route
-Max. 21 entries IPv6 Default Route
-Max. 1 entry IPv6 Route Table Interface specific select
-Per VLAN RIP OSPF L3 IP Multicast IGMP
-IP group address FDB MLD
-IP group address FDB QoS Trust Mode
-Cos/802.1p
-DSCP
-CoS/802.1p-DSCP Per Port Trust Mode
-Enable-follow the global trust type
-Disable-Always go to the lowest priority queue. Queue
-Number of priority queues supported-8 CoS Mapping CoS Based on 802.1p Priority CoS Based on Physical Port CoS Based on DSCP/TOS Scheduling Mechanism
-Strict/WRR/Strict + WRR Queue Weight Bandwidth Bandwidth Control
-Rate limit according to network speed 16kbps~1000Mbps-in step of 16kbps Advanced QoS Security 802.1X Authentication Protocol
-Local/RADIUS/TACACS+ 802.1X Port-based Access Control 802.1X Authenticated Hosts 802.1X Guest VLAN RADIUS-VLAN assignment EAP/RADIUS of Port Statistics Port Security (Limited Dynamic Lock) Storm Control
-Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps - in step of 16kbps Port Isolation (Protected Ports) DOS Attack Prevention Access Control List (ACL)
-Ingress/Egress
-MC Based ACL
-IPv4 Based ACL
-IPv6 Based ACL
-MAC Range Mode
-IP Range Profile
-ACL Binding
-Action-Permit/Deny/Shutdown/Rate Limit Management VLAN Radius Server
-IPv4 / IPv6 / hostname(IPv4) AAA Login Authentication List
-Local
-Telnet/HTTP Security Password
-Requires a user to generate a new means of authentication before access is granted to the device for the first time. PoE management
-Power on/off per port
-Power class configuration (autoclass/userdefine)
-Power feeding with priority
-Power budget limit PD LifeGuard Account Manager
-Muti Privileges Web Graphical User Interface (GUI)
-HTTP IPv4 / IPv6
-HTTPS IPv4 / IPv6 Web support multi-language
-Language support SNMP v1/v2/v3 Support RMON 1, 2, 3, 9
-Support 4 groups of RMON (1-statistics, 2-history, 3-alarms, 9-events) SSH Server
-IPv4/IPv6 AAA Telnet Server
-IPv4/IPv6 TFTP Client
-IPv4/IPv6 Port Mirroring
-Support 1 to 1 and many to 1
-Max. mirroring session-3
-Tx/Rx/both mirroring Dual Images Image upgrade/backup
-Firmware upgrade (TFTP/HTTP) Configuration upgrade/backup
-TFTP/HTTP Configuration Saving
-Manual/Auto Save System Time
-Time setting/daylight saving Simple Network Time Protocol (SNTP)
-IPv4/IPv6/hostname(IPv4) SNTP server
-Daylight Savings Time
-Port number for SNTP server Web UI Supports Non-IE Browser
-Chrome, Firefox, Safari SYSLOG
-Support log admin password/IP change activity enhancement
-Local logging-buffered/flash
-Remote logging-IPv4/IPv6/hostname(IPv4)
-Originator Identifier-None/Hostname/Ipv4/Ipv6/User Defined SYSLOG Backup
-Buffered Ping
-IPv4/IPv6/hostname(IPv4) Trace Route
-IPv4/IPv6/hostname(IPv4) Factory Default Reboot Switch Flick Reboot MIB Support MIB II
-RFC1213 Bridge
-RFC1493 RMON
-RFC1757 802.1p
-RFC2674 LLDP MIB
-RFC2863 Pubic Mib From Cloud Agent
-ReadOnly Physical Interfaces Multi GE PoE Switch
ALL-SGC5410PM-10G
330 x 44 x 230 mm

Technical Details: Multi GE PoE Switch ALL-SGC5410PM-10G Copper Ports 8x 2.5GbE SFP Ports - SFP+ Ports 2x 10GbE PoE Available Ports 8 PoE Standard 802.3af/at PoE Power Budget 240W Switch Chip RTL9302C PHY GPY241 PoE Controller RTL8238B Flash Memory 16MB NOR
128MB NAND SDRAM Memory 512MB DDR3 Packet Buffer 12Mbit MAC Table Size 16K Switching Capacity 80Gbps Fan(s) 2 Power Supply Int. PSU 300W Dimensions (W x H x D) 330 x 44 x 230 Operating Temperature 0°C to 50°C
