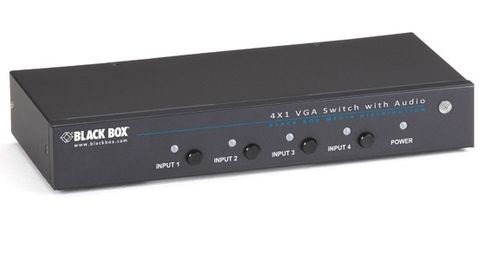

BlackBox AVSW-VGA4X1A 4 X 1 VGA SWITCH WITH SERIAL AND AUDIO

VGA Switches with Serial and Audio:

Switch between up to eight VGA sources for output on a single HD display or projector.

Route video plus audio from multiple sources to a single display.
Provides high-resolution output, up to 1920 x 1200 and 1920 x 1440 VGA resolutions, as well as Full HD 1080p (1920 x 1080).
Easy to set up and use with front-panel push button switching control.
Also supports serial switching control plus control with the included IR remote control.
Works with an array of VGA, SVGA, and multisync monitors.
LEDs show your selected VGA input source.
Rack mountable, hardware included.
Gewährleistung: 3 Jahre Double Diamond™ (Standard)

This low-priced, highly reliable 4 x 1 and 8 x 1 VGA Switch with Serial and Audio is ideal for applications where video and audio need to be routed from multiple PC sources to a single display.

Applications:

The VGA switches are perfect for classrooms, control centers, digital signage, and meeting or seminar environments where switching between multiple sources on a VGA monitor or projector is required.

Specifications:

Resolutions (Maximum):
Full HD 1080p (1920 x 1080), WUXGA (1920 x 1200), 1920 x 1440

Connectors:

Input: (4) or (8) HD15 female (VGA), (4) or (8) 3.5-mm jack (audio), (1) 1.7-mm DCE jack (serial, for use with included adapter);
Output: (1) HD15 female (VGA), (1) 3.5-mm jack (audio)

Indicators:

(4) or (8) LEDs: (1) per each port (indicating active status of VGA input source)

Power:

Input: 100–240 VAC, 50–60 Hz;
Output: 9–12 VDC;
Consumption: 4.5 W

Size:

3.4 H x 22 W x 10 D cm (3,3 cm ( 1,3 Zoll ) H x 21,8 cm ( 8,6 Zoll ) W x 9,9 cm ( 3,9 Zoll ) D)

Weight:

0.8 kg (1.5 lb.)
