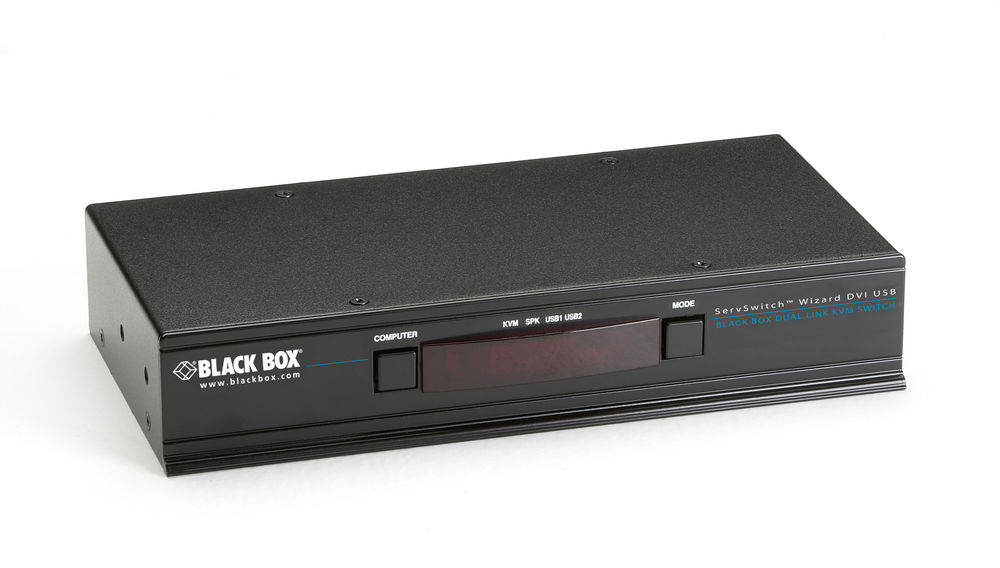

BlackBox KV2004A ServSwitch Wizard DVI DL (USB), 4-Ports True USB Emulation USB 2.0 switched Dual Link DVI-I enhanced hybrid DDC (Optional RM-Kit: RMK4007)

The ServSwitch Wizard DVI DL USB Multivideo supports the full DVI dual-link specification, enabling resolutions up to 2560 x 1200 at 60 Hz to be switched at best quality. The Switch also supports all single-link DVI and even VGA resolutions as well.

The KVM switch is available with switching between four computers featuring one, tro, tree or even four video heads. Thus also high productive Multi Monitor sessions extending program windows seamlessly across multiple screens are possible.

As a professional grade KVM Switch, the Wizard DVI DL features DDC EDID and HDCP support to all attached PCs for optimum image quality and protected contents. A clever architecture combines transparent USB 2.0 protocol for any USB 2.0 peripherals with emulated keyboard and mouse control. Additionally stereo-audio speakers are supported. All peripheral interfaces can be switched independently from the video signal, enabling maximum flexibility.

Professional KVM switching for premium video
The new ServSwitch Wizard DVI DL USB Multivideo supports the full DVI dual-link specification, enabling resolutions up to 2560 x 1200 at 60 Hz to be switched at best quality. The Switch also supports all single-link DVI resolutions as well. The DVI-I video circuitry enables even analogue VGA signals to be switched!

Multihead video
More and more user stations are equipped with two or further monitors to move and extend program windows seamlessly across multiple screens. A better monitoring and increased productivity are the results. Take part of this big advantage. These new KVM Switches come along with support for single, double, triple and even quad video graphic outputs.

Enhanced DDC and HDCP support
As you would expect from a professional grade KVM Switch, the Wizard DVI DL Multivideo reads the DDC EDID information from the attached screens and mirrors it to all attached PCs for optimum image quality. In addition the KVM Switches feature full HDCP support to deliver also protected contents.

True USB Emulation for Keyboard and mouse
The Wizard DVI DL allow to fully support all low speed HID devices to be fully recognized and supported by their drivers. By that more reliability, quicker switching and access to attached workstations is provided.

USB 2.0 transparency
A clever architecture combines transparent USB 2.0 protocol with emulated keyboard and mouse control. To support this, there are two dedicated K/M Ports on the switch's console port plus two USB 2.0 transparent ports for any USB 2.0 peripherals.

Stereo audio support
Additionally, the Wizard DVI DL supports stereo-audio speakers. The audio ports can be switched independently from the video signal, enabling maximum flexibility.

Switching
The Wizard DVI DL USB can easily be switched via simple, selectable hotkey commands from the keyboard or via intuitive combined mouse clicks, besides switching via the front panel. A great advantage is the individual switching possibility of the the different interfaces: KVM, Audio, USB 2.0 on Port A and USB2.0 on port B.

Intelligent Options Port
The Wizard DVI DL can be upgraded for future improvements via its intelligent Options Port. It can also be switched via simple RS-232/V.24 protocol or even dry contact. When linked with another ServSwitch Wizard Desktop Switch, the Options Port can be used for synchronous switching of multiple video heads. Various combinations are possible that way.

Applications
The ServSwitch Wizard DVI DL Multivideo is the ideal solutions for:

• graphic design and post production stations within broadcasting companies,
• conference rooms with external control like i.e. Creston,
• traffic control,
• CAD stations,
• medial applications like X-Rax, CT and equal image analyses,
• Gaming by supporting all gamer type periphals

Technische Daten:

Video —
DVI-dual link: 2560 x 1600 at 60 Hz,
DVI-single link: 1920 x 1200 at 60 Hz,
VGA: 1920 x 1200 at 60 Hz

Connectors —
All:
(4) USB Type A F;
(4) USB Type B F;
(5) 3.5mm Audio Jacks;
(1) DB9 M options port;
(1) barrel jack (Power)
KV2004A also: (5) DVI-I F,
KV2204A also: (10) DVI-I F,
KV2304A also: (15) DVI-I F,
KV2404A also: (20) DVI-I F,

Switching —
via front panel, mouse, keyboard or RS232

Indicators — Multi-Segment Display Control; (1) Front-Panel Push Button
Power — external power supply, 100 to 240 VAC/5 VDC 6A
Size — KV2004A: 4.4H x 48.3W x 22D cm
Weight —
KV2004A: 2.5 kg

Lieferumfang:

(1) ServSwitch DVI DL USB;
(1) Power supply,
(1) IEC 320 power cord;
(1) User manual on CD;
