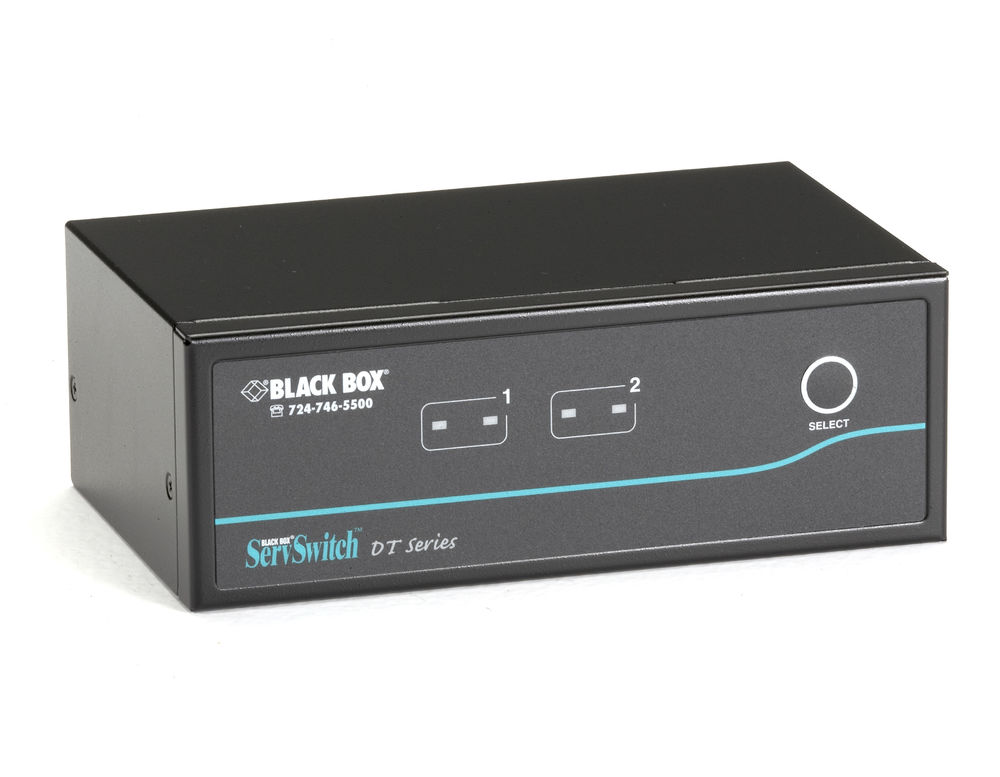

BlackBox KV9622A ServSwitch DT Dual DVI USB 2 CPU Ports Dual Head SL DVI-D up to 1920 x 1200 Stereo Audio support for speaker/micro 2 transparent USB 2.0 ports + 1 emulated port for Hotkey control

The new ServSwitch DT DVI-I MultiVideo supports the full DVI single link specification, allowing you to switch resolutions at up to 1920x1200 at 60Hz. With their dual head video functionality they are ideal for computers featuring two graphic outputs and consoles with two monitors besides the USB keyboard and mouse. The switches' circuitry architecture allows you to fine tune the signals depending on signal strength.
The switches combines DVI or VGA and audio signals together with transparent USB 2.0 signals to be switched. Switching is issued via push buttons on the front or the attached USB keyboard. Up to four resp. three (KV9622A) USB peripherals are supported via a built-in hub.
All models support stereo-audio signal switching for speakers and microphones. Audio channels can be switched independently from USB and video.

Desktop switching with high-quality Dual DVI-I video
The ServSwitch DT DVI MultiVideo Series supports the full DVI single link specification, allowing you to switch resolutions at up to 1920x1200 at 60Hz. With their dual head video functionality they are ideal for computers featuring two graphic outputs and consoles with two monitors besides the USB keyboard and mouse. The switches' circuitry architecture allows you to fine tune the signals depending on signal strength.

Transparent USB 2.0
The switches combine dual DVI or VGA video and audio signals together with transparent USB 2.0 signals to be switched. Switching is issued via push buttons on the front. Up to three USB peripherals like USB mouse, DVD writer, USB printer are supported via a built-in hub.

Emulated USB for keyboard and mouse
For easy hotkey switching, the DT DVI MultiVideo supports one emulated USB channel.

Stereo audio support
All models support stereo-audio signal switching for speakers and microphones. Audio channels can be switched independently from USB and video.

Technische Daten:

Resolution —
HDTV: 1080p;
DVI-D: 1920 x 1200;
Bandwidth: 1.5 Gbps

Operating Systems Supported — Windows® 95/98/Me/XP, Windows NT®, Windows 2000, Mac® OS

Connectors —
KV9622A:
CPU side:
Video: (4) DVI-I (digital only);
USB: (2) USB Type B;
Audio: (4) 3.5mm stereo jacks;
Console side:
Video: (2) DVI-I (digital only);
USB workstation/device sharing: (4) USB Type A;
Audio: (2) 3.5mm stereo jacks
(1) barrel connector for power

KV9624A:

CPU side:
Video: (8) DVI-I;
USB: (4) USB Type B;
Audio: (8) 3.5mm stereo jacks;
Console side:
Video: (2) DVI-I;
USB workstation/device sharing: (4) USB Type A;
Audio: (2) 3.5mm stereo jacks
(1) barrel connector for power

KV9628A:

Console side:
Video: (2) DVI-I F; (1) HD15 F (VGA) for primary channel video, first video port;
Keyboard/mouse: (2) USB Type A F;
Peripherals: (2) USB Type A F;
Audio: (2) 3.5mm jacks (stereo audio and microphone);
CPU side:
Video input: (16) DVI-I F (with [2] DVI ports per channel);
Keyboard/mouse: (8) USB Type B F;
Audio: (2) 3.5mm jacks (stereo audio and microphone input)
(1) barrel connector for power

Indicators — (1) power; (2/4) LEDs for port selection; (2/4) LEDs for CPU power

Control — Front-Panel Push Buttons or Hotkey commands

Power — External: 100 to 240 VAC / 5 VDC

Size —
KV9622A: 0,6H x 16,0W x 10,0D cm
KV9624A: 0,6H x 22,0W x 13,0D cm
KV9628A: 6.6H x 43.8W x 22.9D cm

Weight —
KV9622A: 1,33 kg
KV9624A: 1.86 kg
KV9628A: 2kg
