MikroTiK Parabolic Antennas 30dBi 5Ghz Parabolic Dish antenna with precision aligmnent mount content_copy

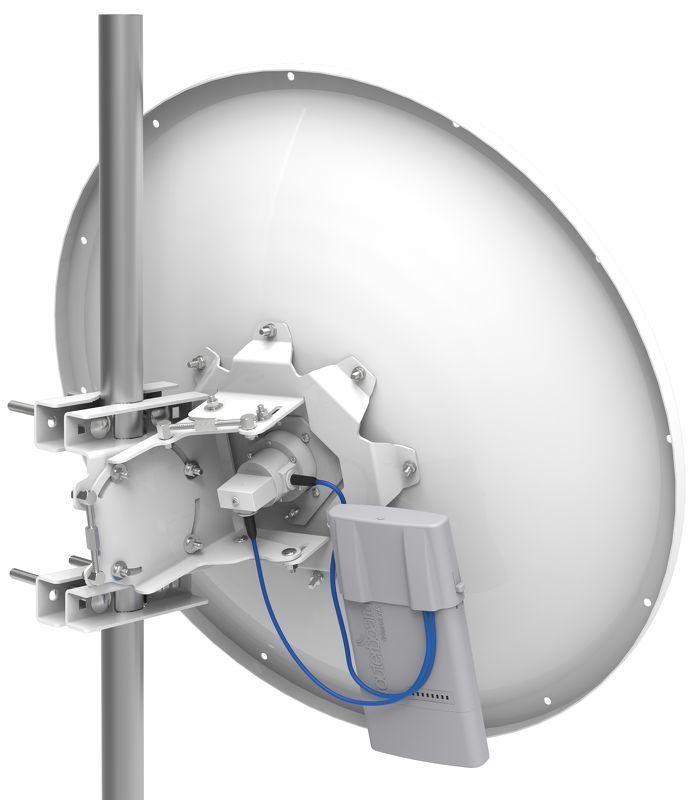

30dBi 5Ghz Parabolic Dish antenna with precision aligmnent mount mANT30 PA mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable. Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables. Note: Basebox wireless device pictured for illustrative purposes. It is not included Product specifications Details Product code MTAD-5G-30D3-PA Antenna gain DBI 30dbi Frequency Range 4.7-5.875 GHz Polarization Vertical and Horizontal Beamwidth 3 deg VSWR - 1.4 typ, - 1.8 max Port to Port Isolation &gt40dB min Front-to-Back Ratio &gt30 dB Cross Polarization &gt40 dB Power Rating 100W Impedance 50 ohms Elevation adjustment range +/- 15 deg Diameter x Depth 70 x 45cm (27.5 x 17.8in) Weight 5.7kg (12.6 lbs) Reflector Aluminum Outdoor Rating ETSI EN 300 019-2-4 Standards EN 302 326 DN1, DN2, DN3, DN5 Wind Survivability 201kph (125mph) Wind Load (125 mph) 181.4kg (400 lbs) Operating Temperature -50°C to 80°C(-49°F to 158°F) Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in) Connector 2x RP-SMA Female (outside thread) Packaged size 73x73x20cm (29x29x8in) Packaged weight 8.4 kg (18,5) Suggested price $129.00
