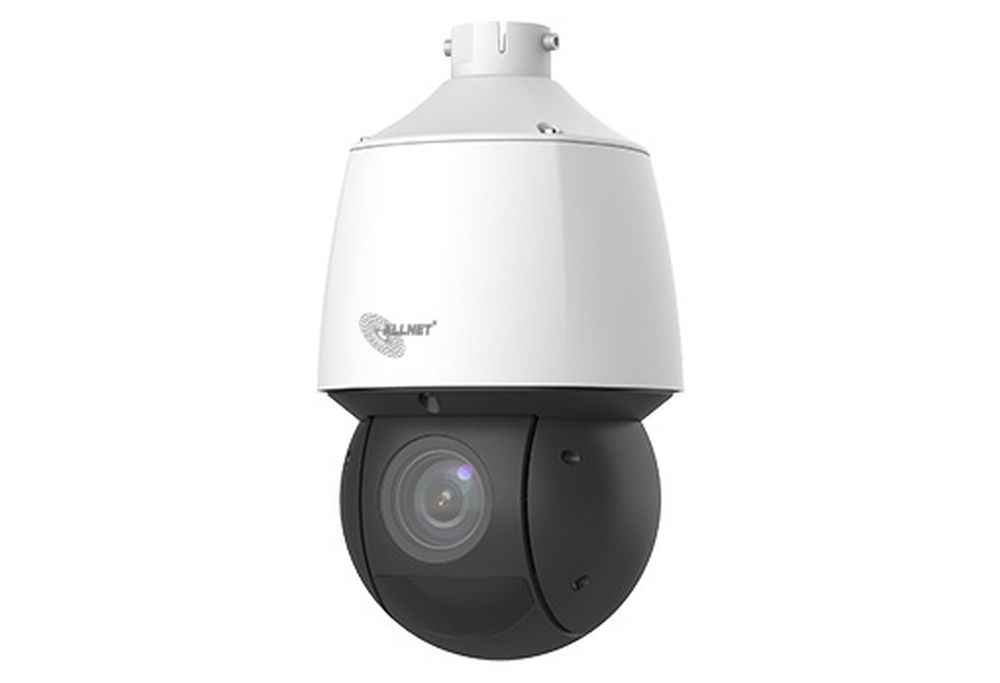

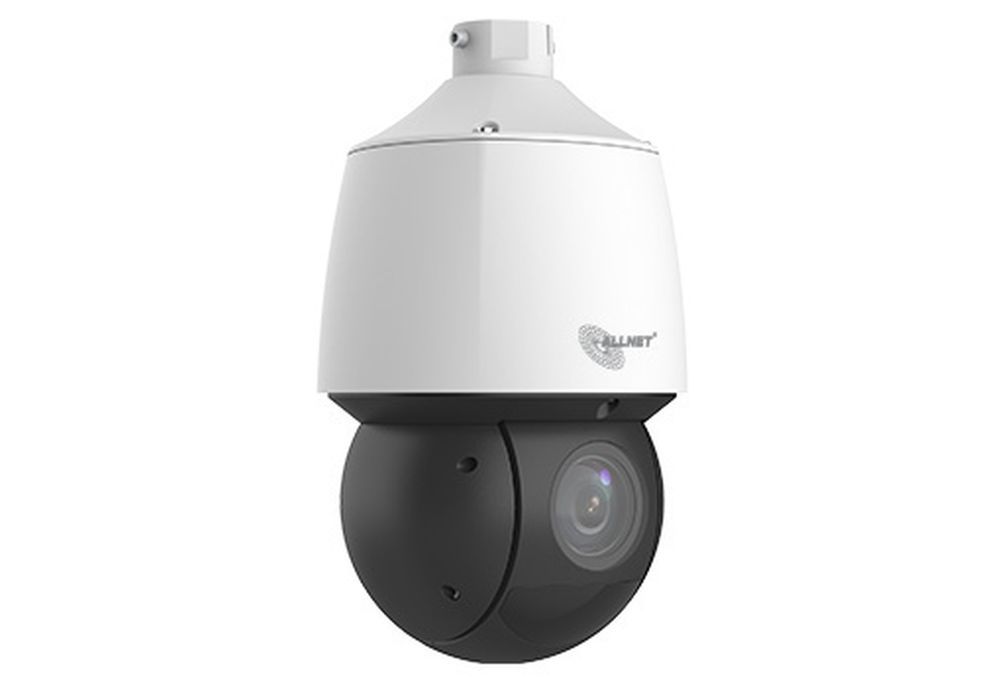

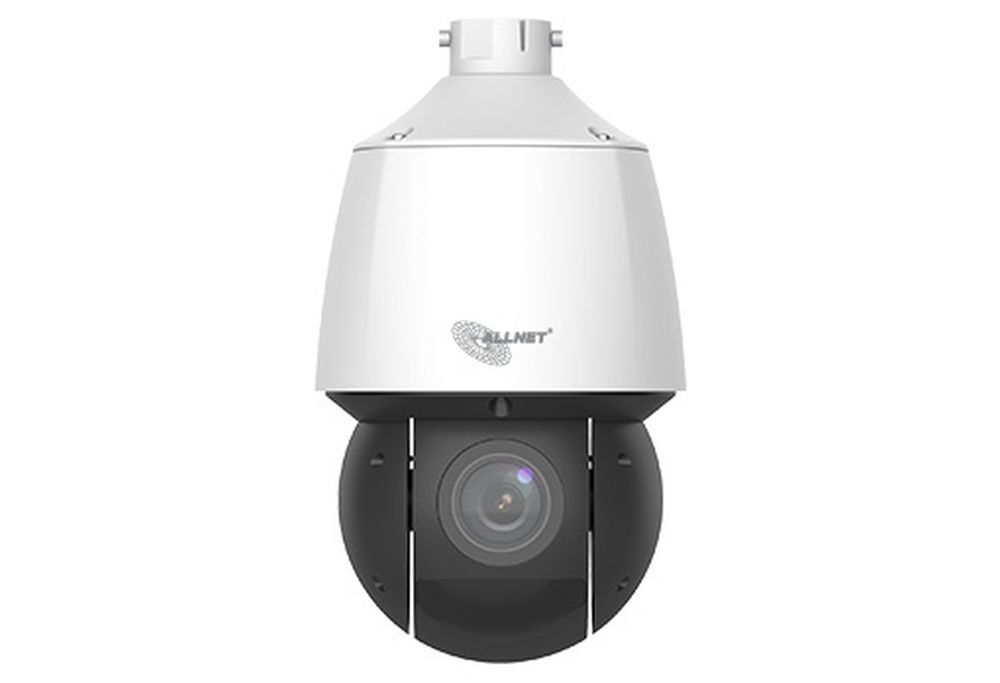

ALLNET IP Kamera PTZ / Outdoor / 4MP / IR / IP67 / IK10 / 25x opt. Zoom / Motion-Tracking / ALL-CAM2498v2-LEP content_copy

Industry-Electronics IP Kamera PTZ / Outdoor / 4MP / IR / IP67 / IK10 / 25x opt. Zoom / Motion-Tracking / ALL-CAM2498v2-LEP" 4MP 25x Lighthunter Network PTZ Dome Camera Highlights: Hohe Bildqualität mit 4MP, 1/2.8\'\' CMOS Sensor 2688*1520@30fps im Hauptstream Ultra 265, H.265, H.264, MJPEG Dreifach-Streams 25facher optischer Zoom Lighthunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung Smart IR, bis zu 100m (328ft) IR-Abstand DC 12V±25% oder PoE+ (IEEE 802.3at) Alarm 2 Eingänge und 1 Ausgang, Audio 1 Eingang und 1 Ausgang IP67 Schutz gegen Eindringen IK10 vandalismus geschützt Links zu direkten Streams siehe = https://service.Industry-Electronics.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx Technical Details: ALL-CAM2498v2-LEP Camera Sensor 1/2.8, 4.0 megapixel, progressive scan, CMOS Min. Illumination Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N &gt56dB Lens Lens type 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens Digital Zoom 16 Optical Zoom 25 Iris Auto F1.5 ~ F3.8 Angle of View (H) 52.20°~2.74° Angle of View (V) 30.81°~1.54° Angle of View (O) 64.20°~3.23° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.8 119.3(391.2ft) 47.7(156.5ft) 23.9(78.2ft) 11.9(39.1ft) 120 2475.0(8120.1ft) 990.0(3248.0ft) 495.0(1624.0ft) 247.5(812.0ft) Illuminator IR Range Up to 100m (328 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 4MP(2688*1520),Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps Video Bit Rate 128 Kbps~16 Mbps U-code Support ROI Support Video Stream Triple streams OSD Up to 8 OSDs Privacy Mask 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Defog Digital Defog Events Basic Detection Motion detection, Audio detection, Tampering Alarm Auto Tracking Support General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZLive EZView Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Pan &amp Tilt Pan Range 360° (endless) Pan Speed 0.1°/s ~ 200°/s Preset speed: 240°/s Tilt Range –15° ~ 90° (auto reverse) Tilt Speed 0.1°/s ~ 120°/s Preset speed: 200°/s Number of Presets 1024 Preset Patrol 16 patrols, up to 64 presets for each patrol Route Patrol 16 patrols, up to 32 actions for each patrol Recorded Patrol 16 patrols, up to 128 actions for each patrol Patrol Stay Time 15s~1800s Preset Image Freeze Support Home Position Support Interface Audio I/O 1/1 Alarm I/O 2/1 Serial Port 1 RS485 Built-in Mic N/A Built-in Speaker N/A WIFI N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output 1 BNC Certification EMC FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 Safety IEC 62368-1 EN 62368-1 UL 60950-1 Environment CE-ROHS (2011/65/EU(EU)2015/863) WEEE (2012/19/EU) REACH (Regulation (EC) No 1907/2006) General Power DC12V(±25%,3A), PoE+(IEEE 802.3at) Power consumption: MAX 21W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Ø166 x 295mm (Ø6.5” x 11.6”) Weight 3.05kg(6.72lb) Working Environment -40°C~70°C(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) Storage Environment -40°C~70°C(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Reset Button Support Protection Ingression protection: IP67 Vandal resistant: IK10
