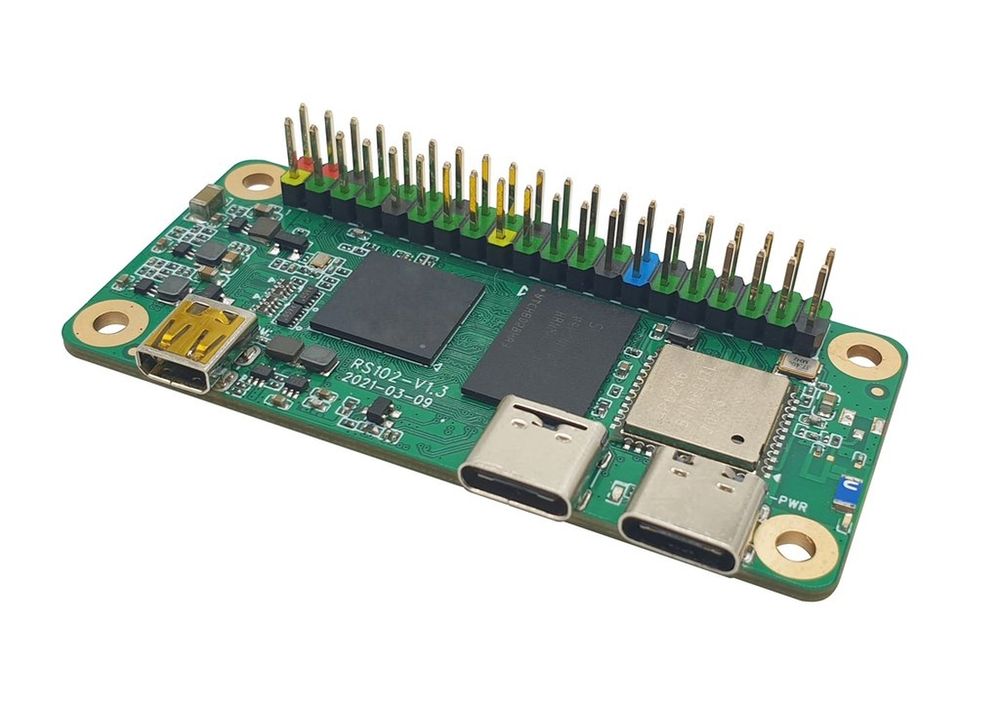

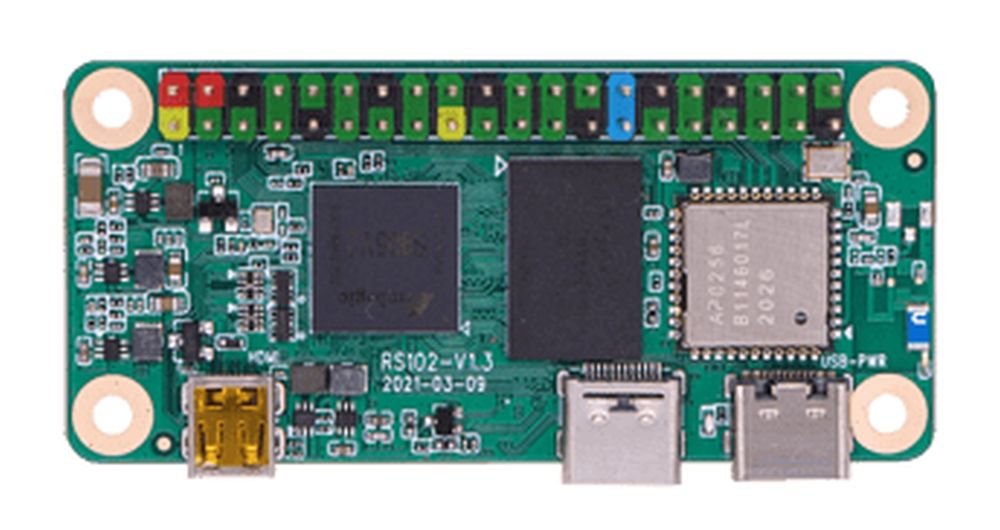

ALLNET RS102-D1H Radxa Zero 1GB D1H WLAN, Pin Leiste gelötet, onboard Antenne

Amlogic S905Y2 64bit quad core based Mini SBC
Quadcore power with up to 4GB LPDDR4 RAM with the dimensions of an USB-stick.
WLAN Chipsatz AP6212 OK
RADXA Zero product details
Amlogic S905Y264bit quadcoreprocessor
Quad Cortex-A53, frequency 1.8Ghz, 12nm
GPU
Mali G31 MP2 GPU, supports OpenGL ES 1.1 /2.0 /3.1 /3.2, Vulkan 1.1, Open CL 1.1 1.2, 2.0 Full Profile
Memory LPDDR4
64bit dual channel LPDDR4@3200Mb/s, 1GB/ 2GB or 4GB
Wifi/BT Antenna
Wifi/BT with external antenna support*
* WIFI4/BLE4 and WIFI4/BLE5 available for different models!
Storage eMMC 5.1
soldered high performance eMMC 5.1 with capacities of 8GB/ 16GB
Micro SD card
uSD slot supports up to 128G uSD card
Display Micro HDMI
HDMI 2.1, 4K@60 HDR
Peripherie
 HD codec H265/VP9 decode 4Kx2K@60
USB 3.0 Type-C HOST x1
USB 3.0 HOST
dedicated USB3.0 channel
USB 2.0 Type-C OTG x1
 USB 2.0 OTG
Network (depending on the model)
Wireless 802.11 abgn wifi 2,4GHz, Bluetooth 4.2
Wireless 802.11 ac wifi 2,4/5GHz, Bluetooth 5.0

IO 40-pinexpansionheader :

• 1 x UART
• 2 x SPI bus
• 2 x I2C bus
• 1 x PCM/I2S
• 1 x SPDIF
• 1 x PWM
• 1 x ADC
• 6 x GPIO
• 2 x 5V DC power in
• 2 x 3.3V power pin
Others
Crypto Engine
one button
Size 66mm x 30mm

Essentials You NeedRADXA ZERO Power adapter with USB type C port equal or larger than 5W MicroSD Card or onboard eMMC module Keyboard < Mouse Monitor with HDMI input
