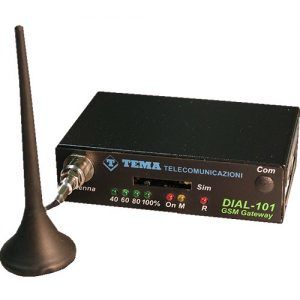

TEMA TELECOMUNICAZIONI DIAL-101A TEMA GSM-Gateway 1x FXS or FXO Metallgehäuse / Antenne Abnehmbar FME

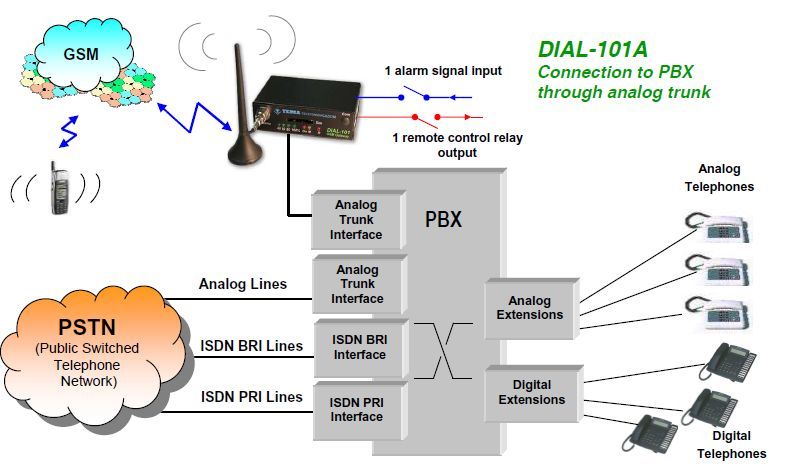

Highlights: Gateway GSM for both incoming and outgoing calls Drastic reduction of fixed-to mobile phone calls costs Telephone SMS service dialer from alarm contact, remote control relay Ideal choice for calls in remote sites temporary or mobile offices, crafts and as emergency line Caller identity display (Calling Line 6 Identification service) Inbound and outbound call barring option Ring signal regeneration with sinusoidal 25Hz waveform Signal strength Led bar indicator 2,5 mt Antenna cable and Power supply included Programmable via local phone or remotely, via GSM call, SMS messages DIAL-101A is a brand new small-sized GSM Gateway reducing user’s mobile phone costs from PBX extension or standalone applications with a fast ROI (Return On Investment). Using DIAL-101A users can eliminate mobile cross-network fees as it securely transforms fixed-to-mobile in mobile-to-mobile calls exploiting its Dual-Band GSM Engine. The unit is equipped with a FXS port for connection to PBX, through an analog trunk interface, or to a normal DTMF telephone.

DIAL-101A contains a SIM Card which enables the user to call mobile phones at low cost. For incoming calls, that is calls towards GSM engine SIM Card, DIAL-101A re-routes the call to PBX with modem transmission of the caller identity (CLI). Completely Plug Radiofrequency section Built-in GSM module Dual Band (900/1800MHz) Network Type GSM phase II SIM Card Transmitter Plug-in, 3V, small Transmitter Power 2W/900MHz-1W/1800MHz Receiver Sensitivity  > - 100 dBm Receiver Sensitivity 50 ? imped., FME conn. Antenna cable length 2,5mt Telephone section PBX connection analog trunk interface or analog telephone AC impedance (off-hook) 600 ? Line voltage (on-hook) 48 VDC Line current (off-hook) 25 mA max. Maximum loop resistance 800 ? Ring signal regeneration 65 VRMS, 25 Hz Dialing mode DTMF + pulse Other features Dimensions (HxWxD) 30 x 103 x 64 mm Operating Temperature Max. 0°C - 45 °C Relative Umidity 95% not condensing Weight 1 Kg. packaged with antenna and power supply Power supply (provided with system) Input 220VAC, 50Hz
Output 12VDC, 1A Max relay capacity 30VDC - 200mA
