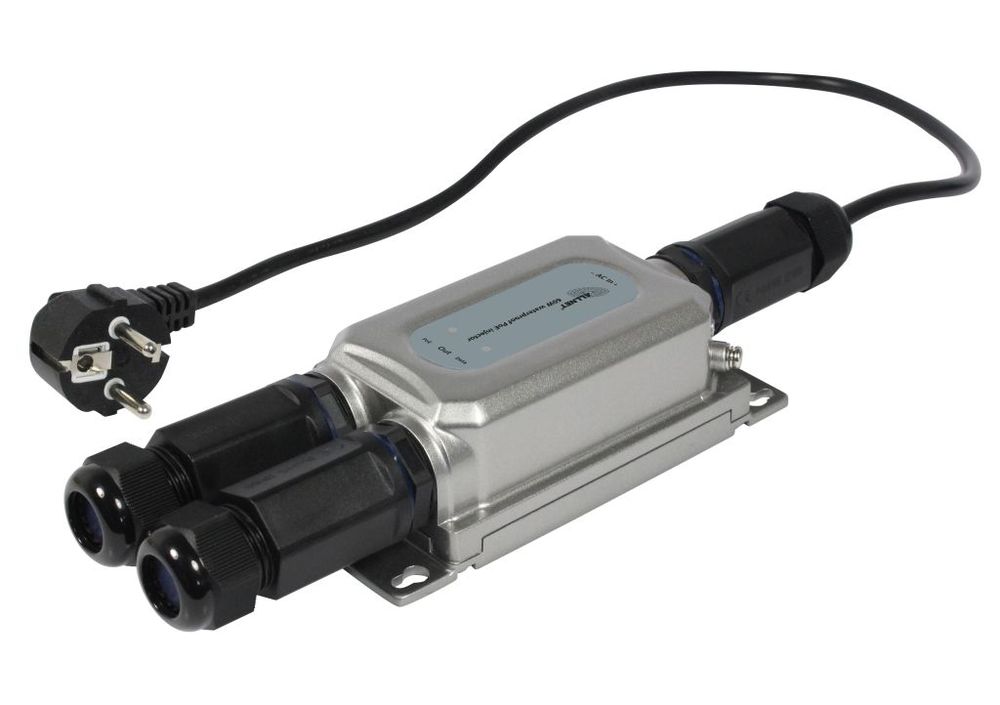

ALLNET PoE Injektor Outdoor IP67 IEEE802.3bt (15,4W/30W/60W) Metallgehäuse / ALL-PI2013OBT60

Highlights: 60 Watt PoE IP67 Outdoor Injektor nach IEEE802.3bt Standard IP67 Wetterfest


Technical Details: Technical Details: Model: ALL-PI2013OBT60 - 60W waterproof PoE injector AC to BT 60W IEEE Standard: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af for POE
IEEE802.3at for POE+
IEEE802.3bt Network Media (Cable): 10BASE-T: UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5 cable (≤100m)
1000BASE-T: UTP category 5e cable (≤100m)

Network Connector:

  1xRJ-45 10/100/1000BaseT(X) Data
1xRJ-45 10/100/1000BaseT(X) PSE with POE Output power IEEE802.3bt 60W Input current: 1,5A Max
Power input: AC 100-240V 50/60Hz 2 PIN Terminal
PoE Power output: 60W Max. IEEE802.3bt POE Pin Assignment RJ45: 1/2(-), 3/6(+) and 4/5(+),7/8(-)
Output Voltage: DC 55V±5%
Output ripple voltage: ≤200mV,Test conditions: rated input voltage, full load output, Tested with 20MHz bandwidth oscilloscope, Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output
Output current: 1.1A Max.
LED Indicator: PWR(Green) , PoE(Bt:Green,UPoE:orange) Dimmension: 150 x 73 x 44mm Operating Temperature: -20°C ~ 60°C
Storage Temperature: -40°C ~ 80°C
Surge Protection: Difference Mode:±4KV, Common mode:±6KV
MTBF: < hours
Electrostatic standard: Contact 6KV, air 8KV
Waterproof grade: IP67
Anti-hazard classification: IK10
