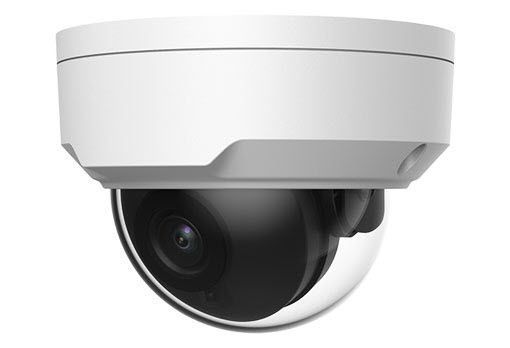

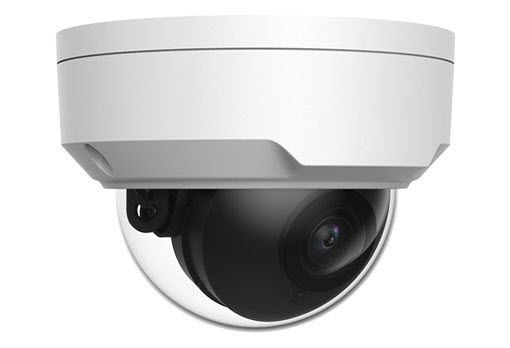

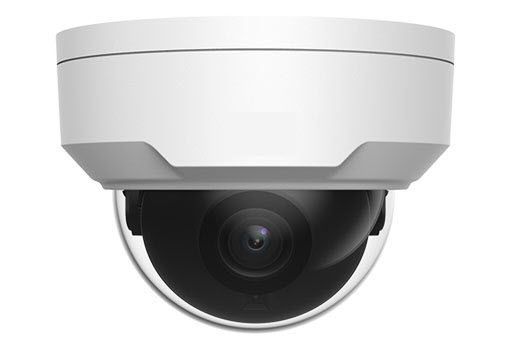

ALLNET IP Kamera Fix Dome Outdoor / 5MP / IR / Vandalismus / Low-Light / 79° / ALL-CAM2488v3-LVEN

Highlights: Hohe Bildqualität mit 5MP, 1/2.7 CMOS Sensor 5MP (2880*1620)@ 30/25fps 4MP (2560*1440)@ 30/25fps 3MP (2304*1296) @30/25fps 2MP (1920*1080) @30/25fps Ultra 265, H.265, H.264, MJPEG LightHunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung 120dB true WDR Technologie ermöglicht ein klares Bild bei starken Lichtverhältnissen Unterstützt 9:16 Korridormodus Alarm: 1 Eingang/1 Ausgang, Audio: 1 Eingang/1 Ausgang Smart IR, bis zu 30m (98ft) IR Entfernung Unterstützt 256 G Micro SD Karte IK10 vandalismusgeschützt IP67-Schutz Unterstützt PoE-Stromversorgung  Links zu direkten Streams siehe =   Technical Details:   ALL-CAM2488v3-LVEN Camera Sensor 1/2.7, 5.0 megapixel, progressive scan, CMOS Lens 4.0mm@F1.6 DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.0 90.0 36.0 18.0 9.0 Angle of View (H) 78.7° Angle of View (V) 44.9° Angle of View (O) 89.2° Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour:0.003 Lux (F1.6, AGC ON)
0Lux with IR Day/Night IR-cut filter with auto switch (ICR) Digital Noise Reduction 2D/3D DNR S/N >56dB IR Range Up to 30m (98ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps 4MP (2560*1440), Max 30fps 3MP (2304*1296), Max 30fps 1080P (1920*1080), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps
Third Stream: D1 (720*576), Max 30fps 640*360,Max 30fps 2CIF(704*288), Max 30fps CIF(352*288), Max 30fps Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation
EZView
EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kΩ amplitude 2V [p-p] Output: impedance 600Ω amplitude 2V [p-p] Alarm I/O 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.5W Dimensions (Ø x H) Φ108.7 x 81.1mm (Ø4.3” x 3.2”) Net Weight 0.425kg (0.93lb) Material Metal + Plastic Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 2KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button N/A
